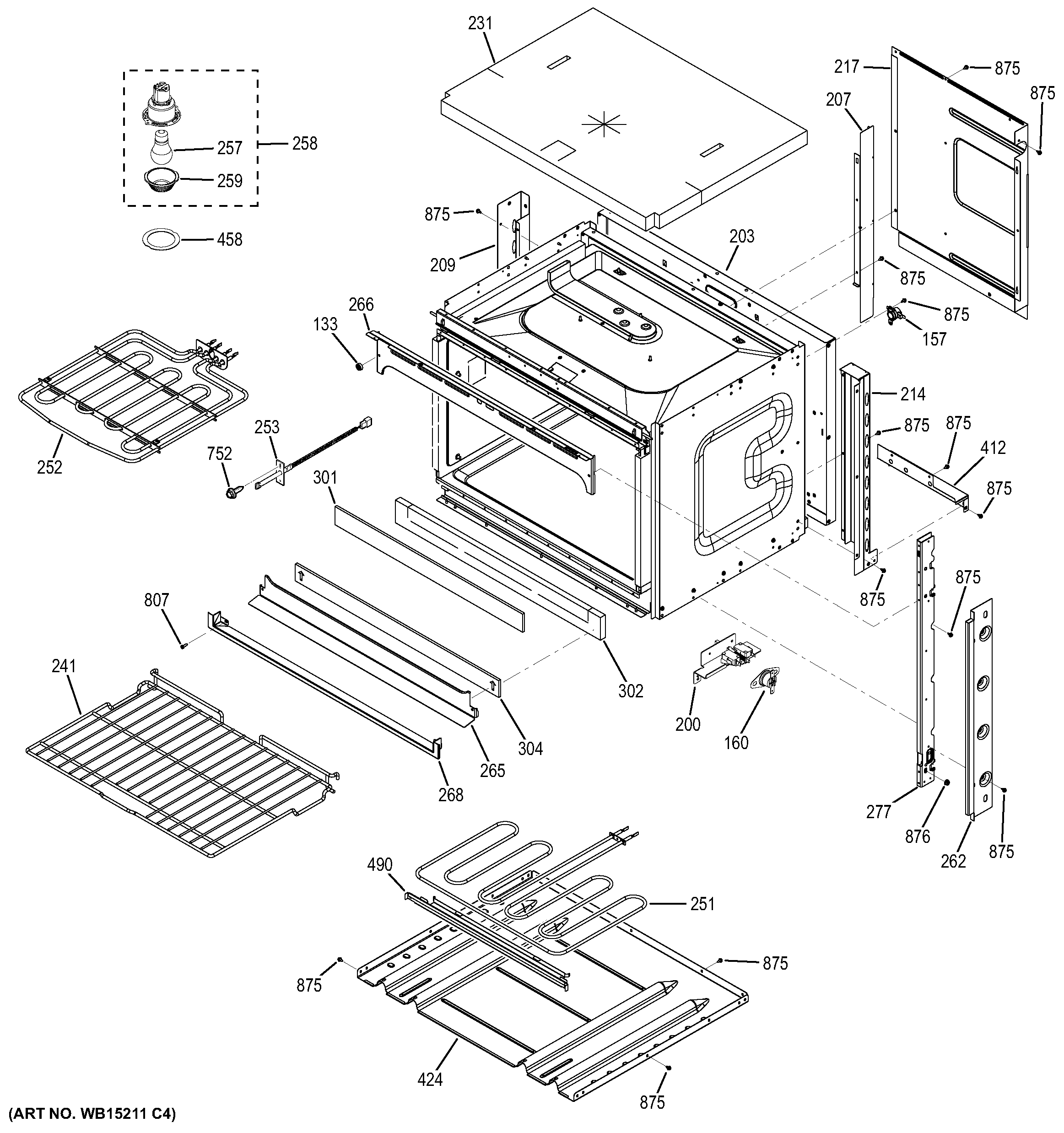

JT1000DF1BB BODY PARTS

JT1000DF1BB BODY PARTS

Written by

in

JT1000DF1BB BODY PARTS

Products

PositionProduct
133WB03T10341 GE Oven Door Bumper
157HIGH LIMIT SWITCH
160WB24T10118 GE Oven Limit Switch Bimetal
200WB24T10179 GE Light Switch
203GEN WB63T10169
207WB34T10134 GE Center Air Divider
209WB34T10133 GE Rear Left Air Channel
214WB55X10971 GE Rear Channel
217WB34T10136 GE Upper Rear Duct Cover
231GEN WB35X10019
241WB48X31582 GE Oven Rack
251WB44T10129 GE Bake Oven Element
252BROIL ELEMENT
253SENSOR ASM
257RANGE ONLY 40W 120V APPL BULB
258WB08T10002 OVEN LAMP ASSEMBLY 40W BULB
259WB25T10002 GE Oven Bulb Lens
262WB07X11402 GE Oven Vertical Side Trim (Black)
265TRIM VENT LWR
266WB07T10797 GE Oven Upper Trim Vent
268WB07T10761 GE Oven Bottom Trim Small Cabinet
277WB07T10754 GE Oven Vertical Right Brace Black
277WB07X35692 GE Left Vertical Brace
301GEN WB35T10256
302WB35X21666 GE Wall Oven Insulation
304WB35T10274 GE Oven Bottom Trim Insulation
412WB34T10151 GE Air Duct Lower Right Cover
424WB56X43352 GE Air Duct Bottom Cover
458GEN WB04T10021
490WB55T10197 GE Oven Hidden Bake Cover
752WB1K5200 GE Oven Screw 340531
807WB1K5165 GE Oven Black Screw
875WH2X930 GE Screw
876LOCK NUT
