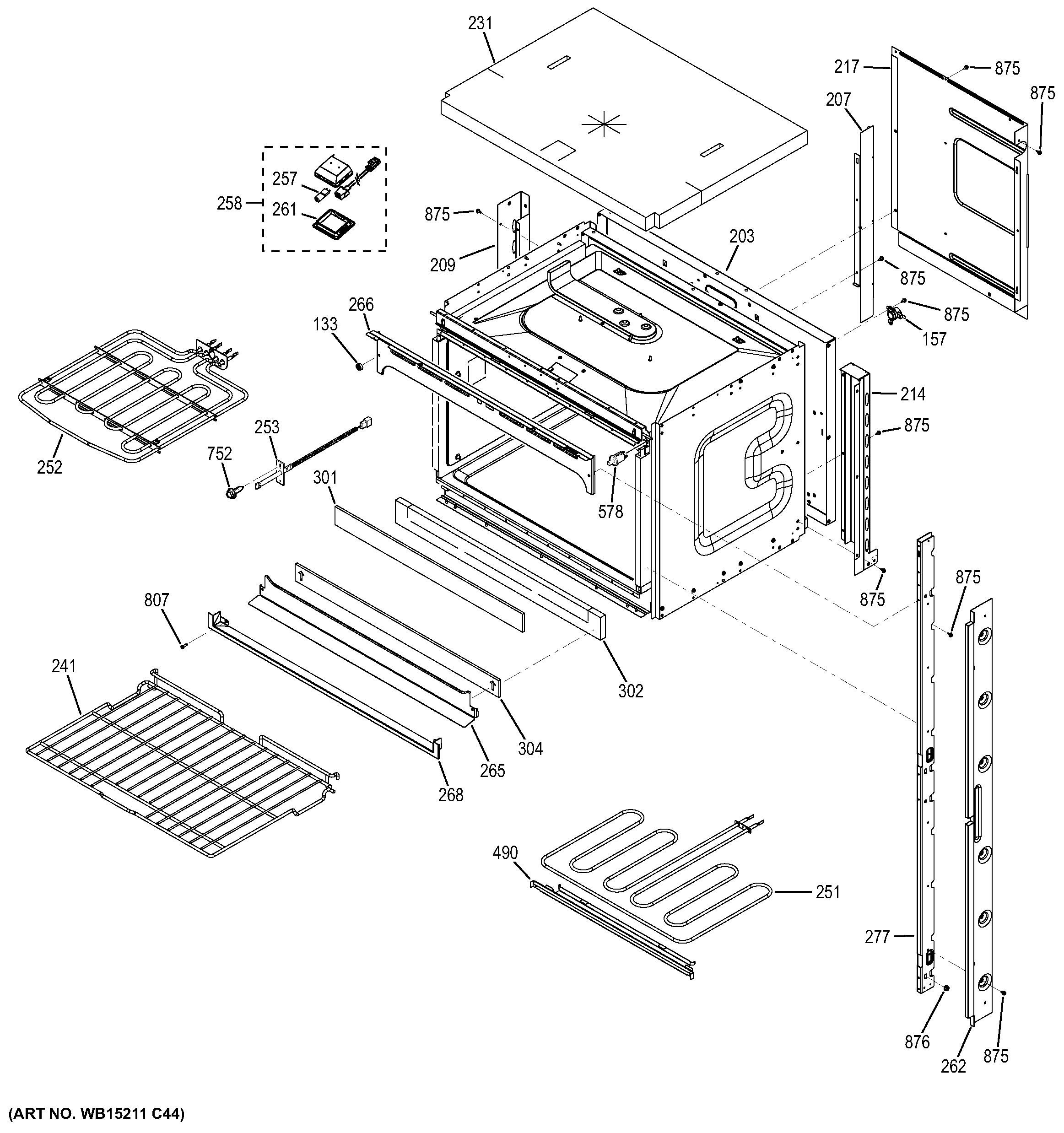

JT3500DF1BB UPPER OVEN

JT3500DF1BB UPPER OVEN

Written by

in

JT3500DF1BB UPPER OVEN

Products

PositionProduct
133WB03T10341 GE Oven Door Bumper
157HIGH LIMIT SWITCH
203GEN WB63T10169
207DIVIDER AIR CENTER
209WB34T10133 GE Rear Left Air Channel
214WB55X10971 GE Rear Channel
217WB34T10136 GE Upper Rear Duct Cover
231GEN WB35X10019
241WB48X31582 GE Oven Rack
251WB44T10129 GE Bake Oven Element
252BROIL ELEMENT
253SENSOR ASM
257WB25T10102 GE Oven Top-Mounted Halogen Bulb G9
258WB25X20199 GE Oven Halogen Lamp Assembly
261WB34T10145 GE Oven Light Lens
262WB07T10744 GE Oven Vertical Side Trim Black
265GEN WB07T10798
266WB07T10805 GE Oven Upper Black Trim Vent
268WB07T10761 GE Oven Bottom Trim Small Cabinet
277WB07T10763 GE Oven Vertical Right Brace Double
277GEN WB07T10764
301GEN WB35T10256
302WB35X21666 GE Wall Oven Insulation
304WB35T10274 GE Oven Bottom Trim Insulation
490WB55T10197 GE Oven Hidden Bake Cover
578WB24T10147 GE Oven SPDT Light Switch
752WB1K5200 GE Oven Screw 340531
807WB1K5165 GE Oven Black Screw
875WH2X930 GE Screw
876LOCK NUT
