JT3500DF6WW UPPER DOOR

JT3500DF6WW UPPER DOOR

Written by

in

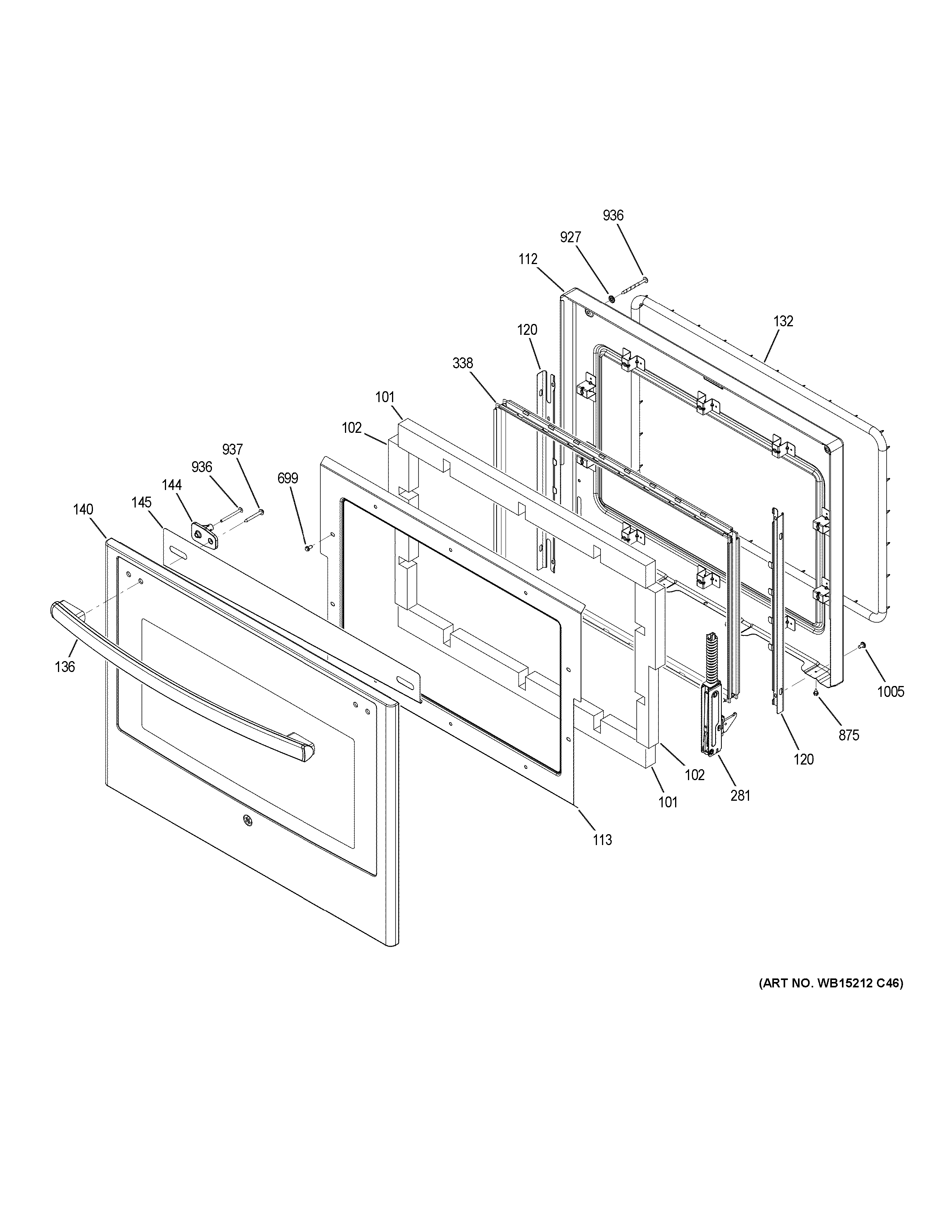

JT3500DF6WW UPPER DOOR

Products

PositionProduct
101INSULATION DR TOP
102INSULATION DR SIDE
112WB63X32818 GE Oven Liner Door Kit
113WB34X31516 GE Door Insulation Retainer
120LINER SUPPORT
132WB35X32825 GE Oven Door Gasket
136WB15T10207 GE Oven Handle White
140WB56X33175 GE Oven White Outer Door Assembly
144WB02T10603 GE Oven Support Handle
145WB34T10142 GE Oven Deflector Door
281WB10X30580 GE Oven Left Door Hinge
281WB10X30579 GE Oven Right Door Hinge
338WINDOW PACK ASM
699WB1M1 GE Oven Screw
875WH2X930 GE Screw
927WB1X119D GE Oven Range Washer
936WB01T10129 GE Oven Screw 10-16 2.5 In T20
937WB01T10066 GE Oven Screw 10-16 XC02
1005WB01T10008 GE Oven Screw 10-32
