JT3500EJ6ES LOWER DOOR

JT3500EJ6ES LOWER DOOR

Written by

in

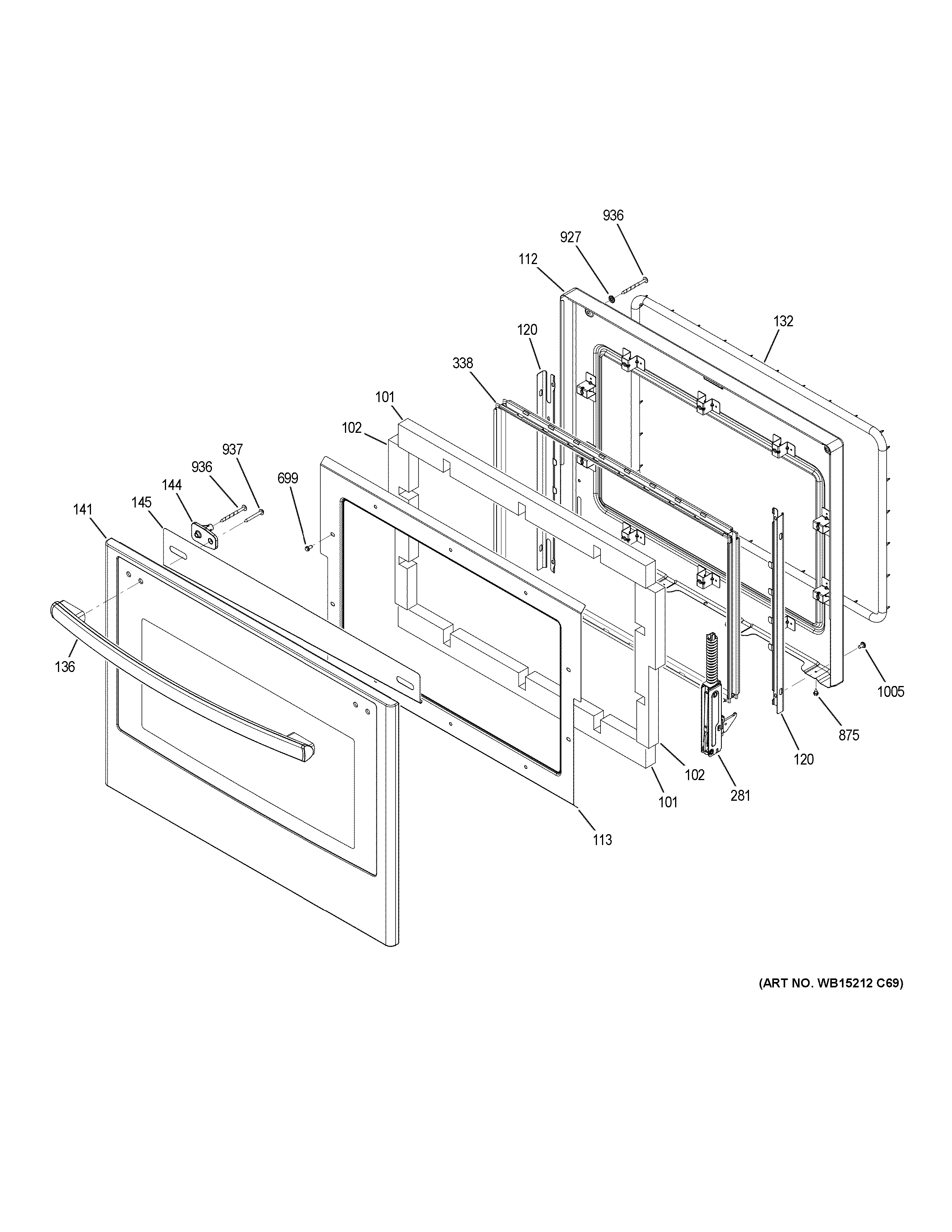

JT3500EJ6ES LOWER DOOR

Products

PositionProduct
101INSULATION DR TOP
102INSULATION DR SIDE
112WB63X32818 GE Oven Liner Door Kit
113WB34X31516 GE Door Insulation Retainer
120LINER SUPPORT
132WB35X32825 GE Oven Door Gasket
136WB15X27281 GE Oven Handle and End Cap Assembly
141WB56X33228 GE Stainless Steel Outer Door Assembly
144WB02T10603 GE Oven Support Handle
145WB34T10142 GE Oven Deflector Door
281WB10X30580 GE Oven Left Door Hinge
281WB10X30579 GE Oven Right Door Hinge
338WINDOW PACK ASM
699WB1M1 GE Oven Screw
875WH2X930 GE Screw
927WB1X119D GE Oven Range Washer
936WB01T10131 GE Oven Screw 10-32 T20 2.5 In
937WB01T10132 GE Oven Hex Screw 10-32 1 3/4"
1005WB01T10008 GE Oven Screw 10-32
