JT3800SH3SS BODY PARTS

JT3800SH3SS BODY PARTS

Written by

in

JT3800SH3SS BODY PARTS

Products

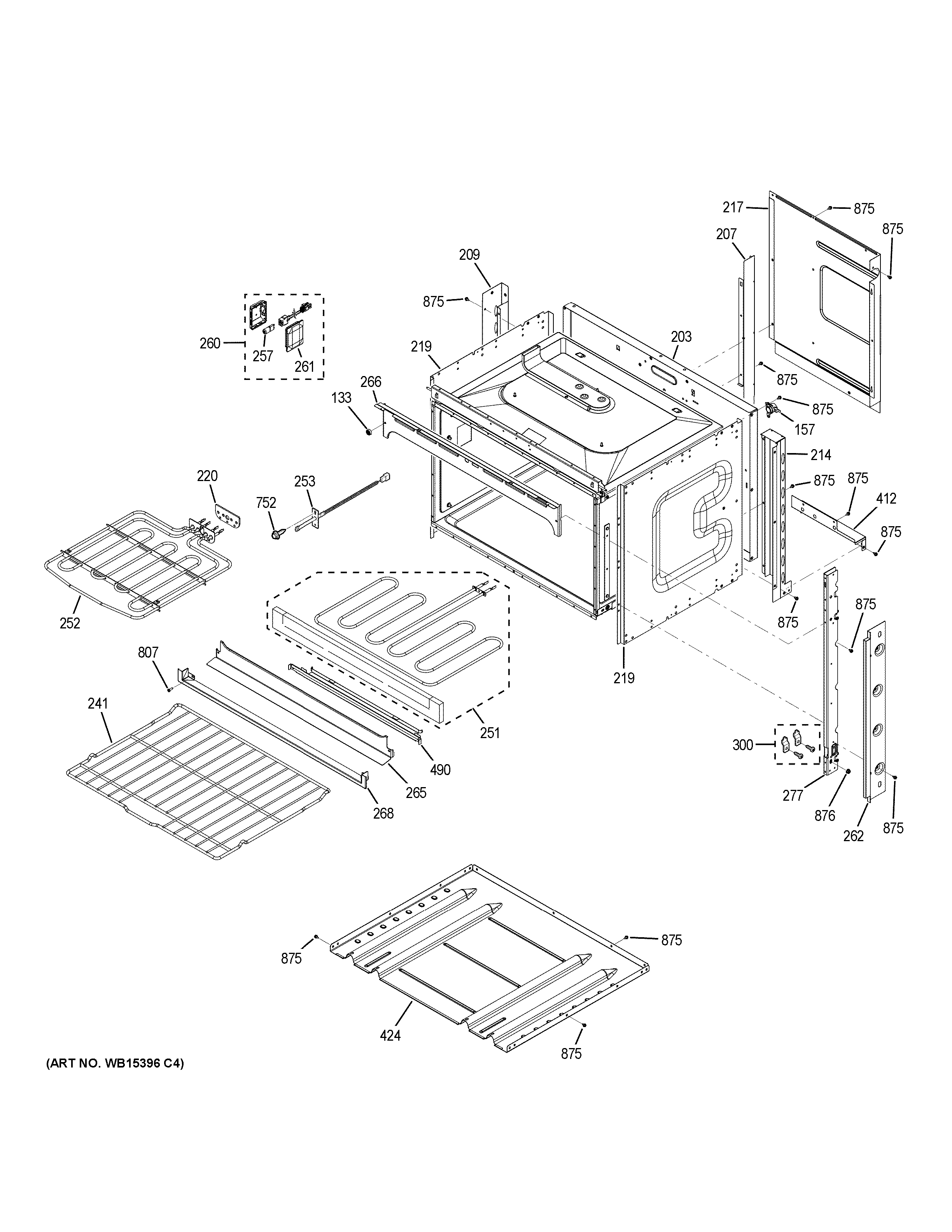

PositionProduct
133WB03T10341 GE Oven Door Bumper
157HIGH LIMIT SWITCH
203GEN WB63T10169
207WB34T10134 GE Center Air Divider
209WB34X21910 GE Oven Rear Channel LT
214WB34X21912 GE Channel Rear Right
217WB34T10136 GE Upper Rear Duct Cover
219WB34X21913 GE Side Insulation Retainer
220WB35X21972 GE Broil Element Gasket
241WB48X31582 GE Oven Rack
251WB44X21667 GE Oven Hidden Bake Element Kit
252WB44T10124 GE Oven Broil Element Assembly
253SENSOR ASM
257WB25T10102 GE Oven Top-Mounted Halogen Bulb G9
260WB25X31221 GE Oven Halogen Lamp Assembly
261WB34T10145 GE Oven Light Lens
262WB07T10732 GE Oven Vertical Side Trim (Black)
265WB07X21187 GE Oven Lower Vent Trim
266WB07X21942 GE Upper Vent Trim
268WB07T10786 GE Oven Bottom Cabinet Trim
277WB07T10754 GE Oven Vertical Right Brace Black
277WB07X35692 GE Left Vertical Brace
300WB49X21652 GE Oven Hinge Bracket Assembly
412WB34T10151 GE Air Duct Lower Right Cover
424WB56X43352 GE Air Duct Bottom Cover
490WB55T10197 GE Oven Hidden Bake Cover
752WB01X21742 GE Screw
807WB1K5173 GE Oven Screw ST 8-18 X 3/4" Black
875WH2X930 GE Screw
876LOCK NUT
