JT3800SH8SS CENTER SPACER

JT3800SH8SS CENTER SPACER

Written by

in

JT3800SH8SS CENTER SPACER

Products

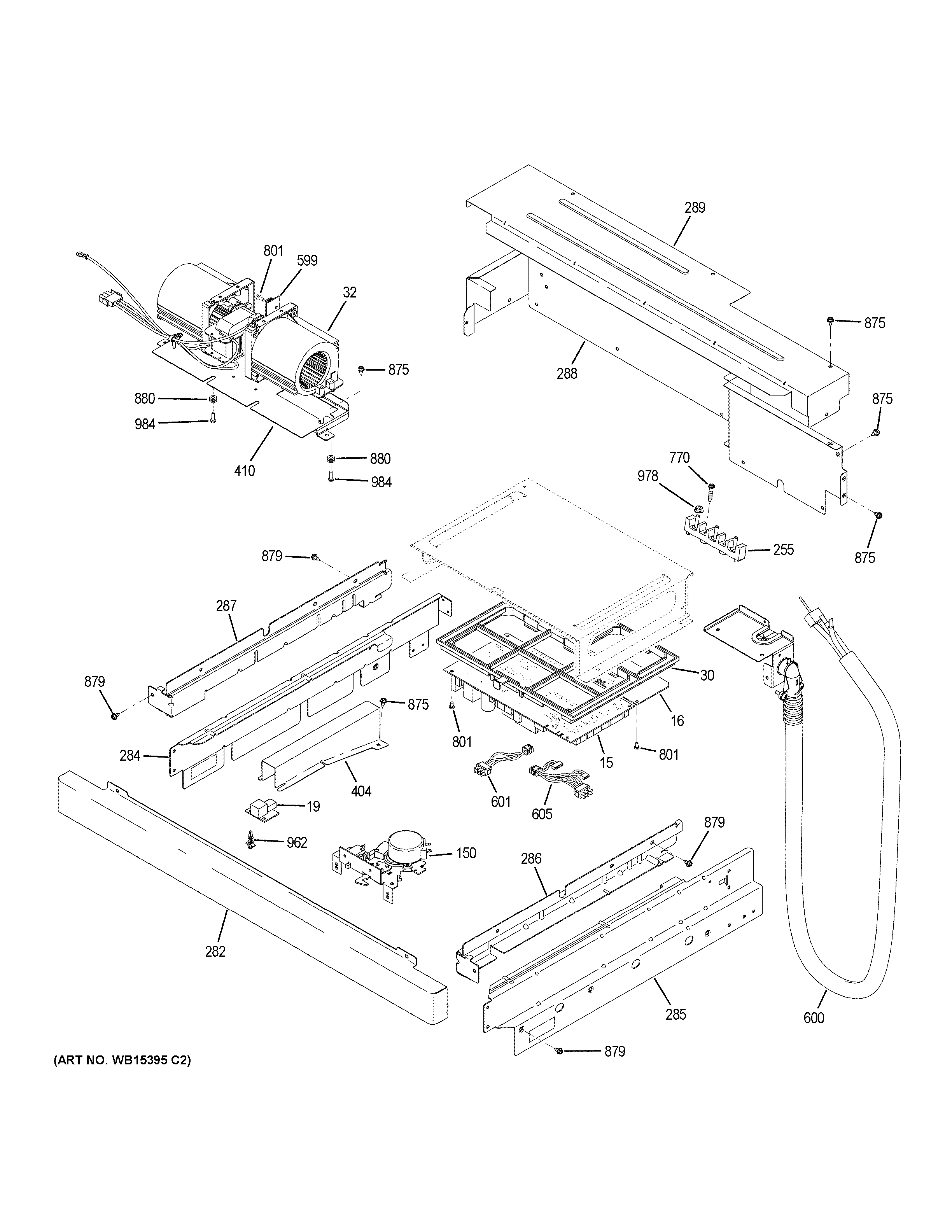

PositionProduct
15WB27X25722 GE Oven Control Machine Board
16WB27X25692 GE Oven Bridge Board
19WB27X21904 GE Oven RJ45 Connector Board
30WB02X21902 GE Oven Relay Board Frame
32WB26X31060 GE Oven Blower Fan
150LATCH ASM
255WB17K10001 GE Oven Block Terminal
282WB07X21951 GE Oven 30-Inch Middle Trim (Stainless Steel)
284SUPPORT MIDDLE LT MWO 30
285SUPPORT MIDDLE RT MWO 30
286WB34X21947 GE Right-Hand Support Slide
287WB34X21946 GE Slide Support Left 30
288WB34X21949 GE Rear Cover Housing
289WB34X21944 GE Top Cover Wire
404WB34T10150 GE Upper Air Vent Channel
410WB37T10026 GE Oven Upper Fan Mount Bracket
599WB27T11463 GE Oven Fan Sensor Board
600WB18T10580 GE Oven 6 FT Optional Conduit
600WB18X30613 GE Conduit Wire Assembly
601WB18X23185 GE Oven Communication Harness Wire
605WB18X33173 GE Main Wire Harness
770WB1K5072 GE Oven Screw
801WD02X10129 GE Dishwasher Screw 8-18 AB HW 1/2"
875WH2X930 GE Screw
879WB1X5904 GE Oven Screw 8-18 BA
880WB01T10128 GE Grommet
962WB02T10093 GE Oven Standoff Printed Circuit Board
978WB1X1259 GE Hex Nut
984WB01T10130 GE Screw 7-19 1/4 HEX 1/2 IN
