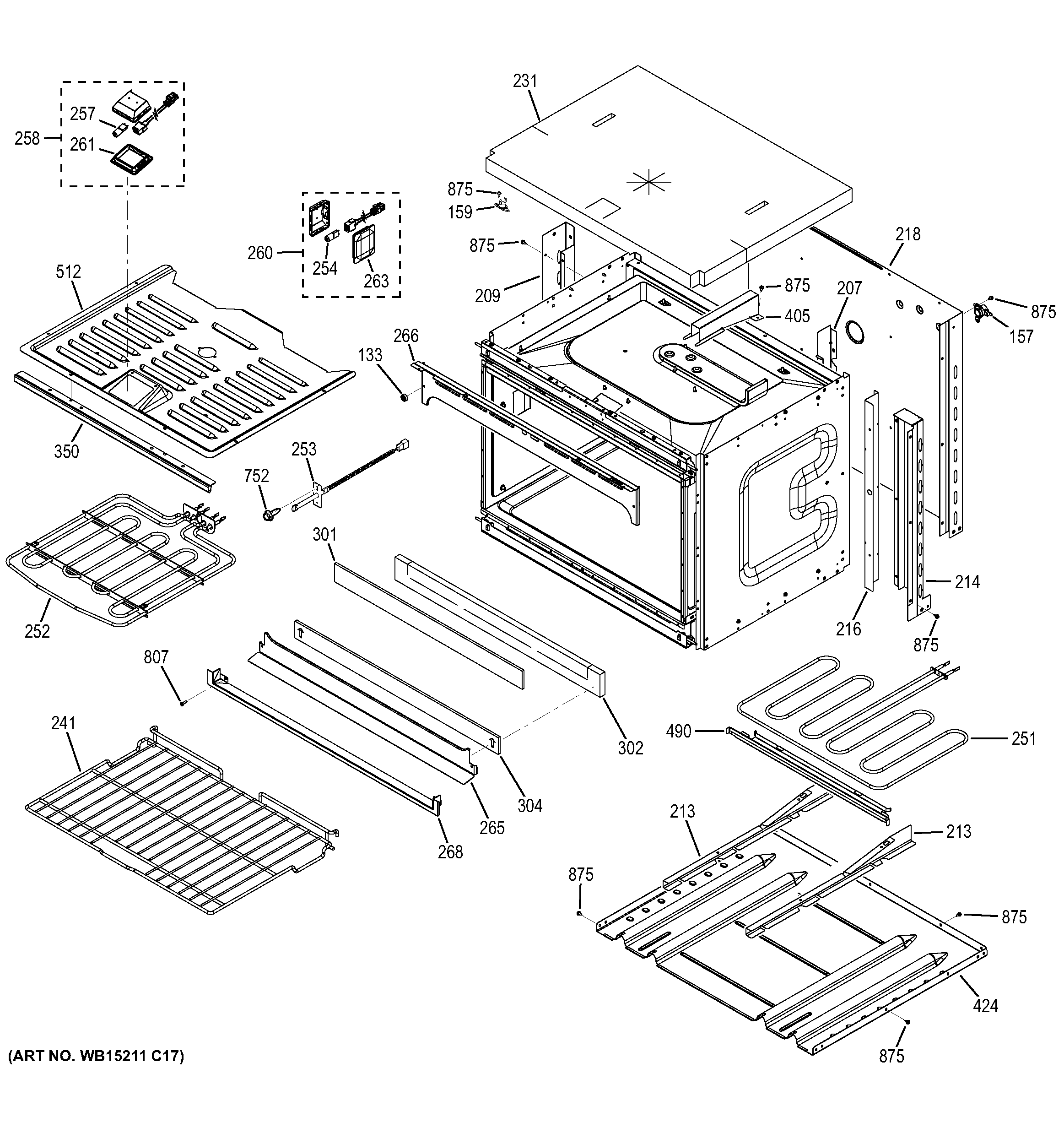

JT5500DF1BB LOWER OVEN

JT5500DF1BB LOWER OVEN

Written by

in

JT5500DF1BB LOWER OVEN

Products

PositionProduct
133WB03T10341 GE Oven Door Bumper
157HIGH LIMIT SWITCH
159WB24X46907 GE High Limit Switch
207DIVIDER AIR CENTER
209WB34T10133 GE Rear Left Air Channel
213WB34T10163 GE Air Divider Bottom
214WB55X10971 GE Rear Channel
216DIVIDER AIR DUCT RIGHT
218DUCT LOWER REAR DUCT
231GEN WB35X10019
241WB48X31582 GE Oven Rack
251WB44T10129 GE Bake Oven Element
252BROIL ELEMENT
253SENSOR ASM
254WB25T10101 GE Oven Halogen Lamp Bulb G9
257WB25T10102 GE Oven Top-Mounted Halogen Bulb G9
258WB25X20199 GE Oven Halogen Lamp Assembly
260WB25X31222 GE Halogen Lamp Assembly
261WB34T10145 GE Oven Light Lens
263LENS OVEN LIGHT
265GEN WB07T10798
266WB07T10805 GE Oven Upper Black Trim Vent
268WB07T10761 GE Oven Bottom Trim Small Cabinet
301GEN WB35T10256
302WB35X21666 GE Wall Oven Insulation
304WB35T10274 GE Oven Bottom Trim Insulation
350GEN WB07T10787
405WB34T10160 GE Lower Air Channel
424WB56X43352 GE Air Duct Bottom Cover
490WB55T10197 GE Oven Hidden Bake Cover
512WB37T10024 GE Oven Top Plate
752WB1K5200 GE Oven Screw 340531
807WB1K5165 GE Oven Black Screw
875WH2X930 GE Screw
