JT5500DF5BB CONTROL PANEL

JT5500DF5BB CONTROL PANEL

Written by

in

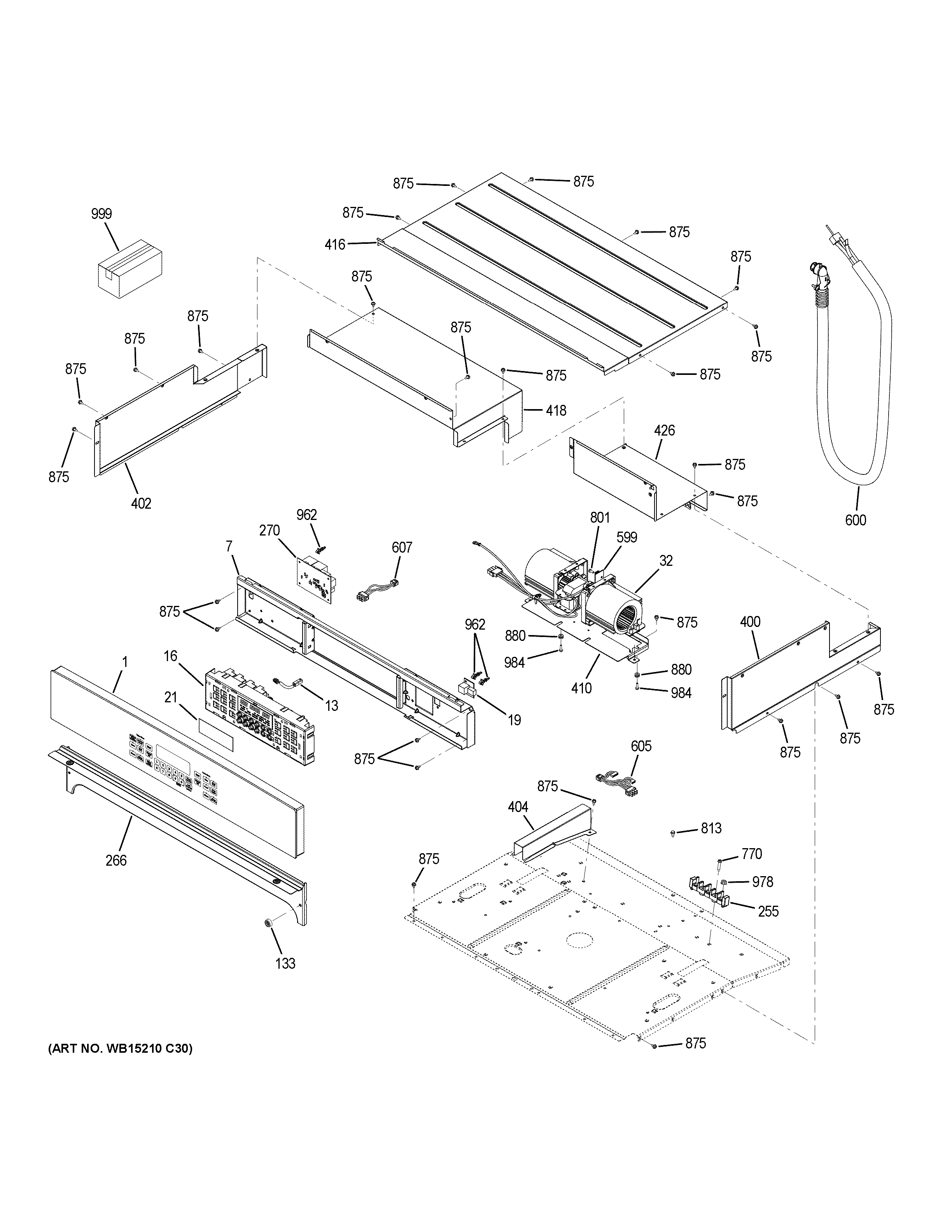

JT5500DF5BB CONTROL PANEL

Products

PositionProduct
1GEN WB07T10766
1LABEL WIRE DIAGRAM
7MOUNTING PANEL – CONTROL
13WB18X30704 GE Jumper
16WB27X29612 GE Oven Control White LED T012
19WB27X20933 GE Oven RJ45 Housing Assembly
21WB27T11116 GE Clock Display Filter
32WB26X24020 GE Range Cooling Fan
133WB03T10341 GE Oven Door Bumper
255WB17K10001 GE Oven Block Terminal
266WB07T10805 GE Oven Upper Black Trim Vent
270WB27X25594 GE Oven Relay Board
400COVER TOP RIGHT EDGE
402WB44T10126 GE Oven Top Left Edge Cover
404WB34T10150 GE Upper Air Vent Channel
410WB37T10026 GE Oven Upper Fan Mount Bracket
416WB34X28390 GE Oven Front Cover Housing
418WB34X32773 GE Rear Top Cover Kit
426WB35T10273 GE Oven Rear Wire Cover
599WB27T11463 GE Oven Fan Sensor Board
600WB18T10580 GE Oven 6 FT Optional Conduit
600WB18T10573 GE Oven Wire Assembly Conduit
605WB18X24052 GE Oven Main Wire Harness
607WB18X31061 GE Oven Latch Wire Harness
770WB1K5072 GE Oven Screw
801WD02X10129 GE Dishwasher Screw 8-18 AB HW 1/2"
813WB1X1261 GE Oven Screw
875WH2X930 GE Screw
880WB01T10128 GE Grommet
962WB02T10093 GE Oven Standoff Printed Circuit Board
978WB1X1259 GE Hex Nut
984WB01T10130 GE Screw 7-19 1/4 HEX 1/2 IN
999PM OWNERS MANUAL
999MANUAL U&C TIP SHEET
999INSTRUCTION INSTALL
999PM INSTALL INSTRUCTIONS
999PM MANUAL MINI & WD ASM
999PM INSTALL INSTRUCTIONS
