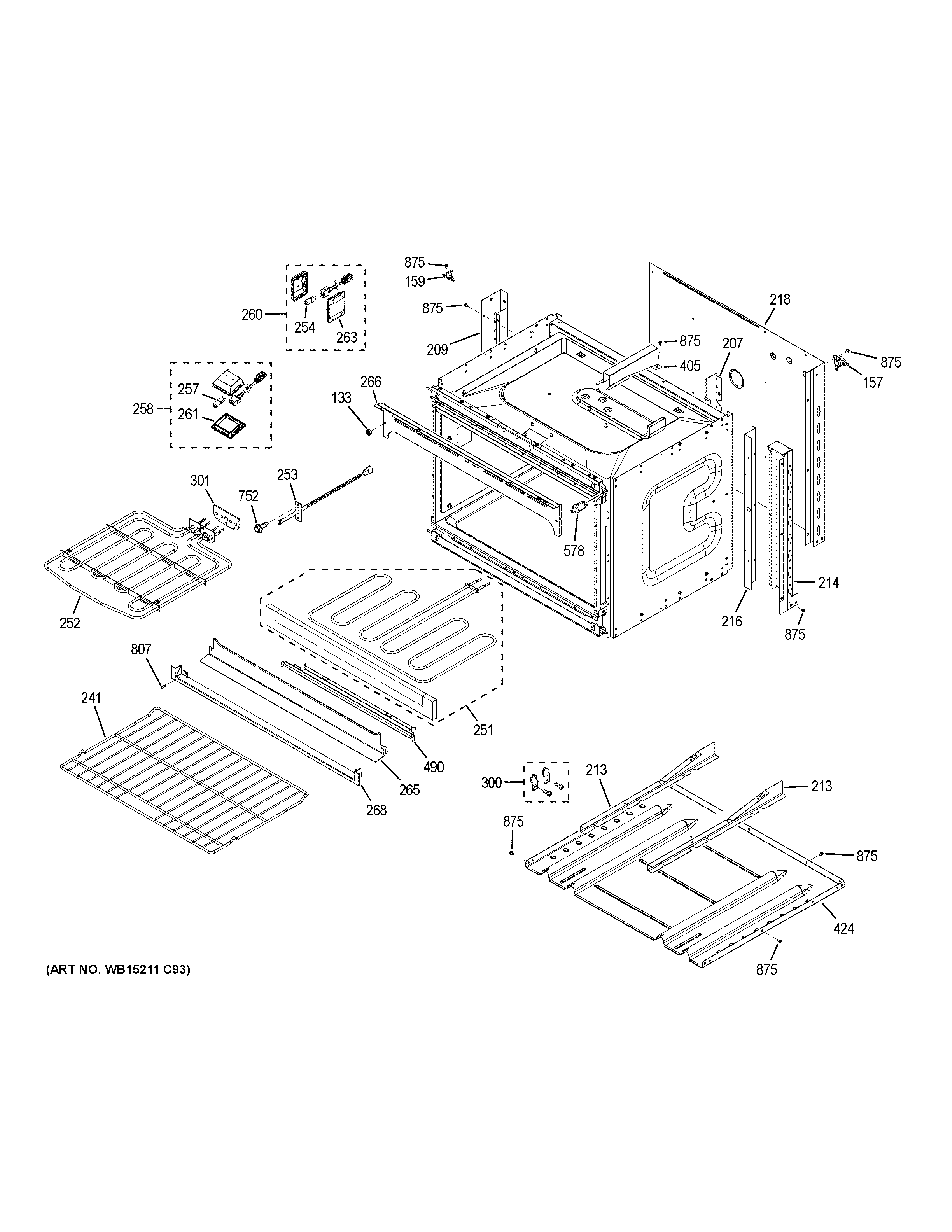

JT5500DF5BB LOWER OVEN

JT5500DF5BB LOWER OVEN

Written by

in

JT5500DF5BB LOWER OVEN

Products

PositionProduct
133WB03T10341 GE Oven Door Bumper
157HIGH LIMIT SWITCH
159WB24X46907 GE High Limit Switch
207DIVIDER AIR CENTER
209WB34X21910 GE Oven Rear Channel LT
213WB34T10163 GE Air Divider Bottom
214WB55X10971 GE Rear Channel
216DIVIDER AIR DUCT RIGHT
218DUCT LOWER REAR DUCT
241WB48X31582 GE Oven Rack
251WB44X21667 GE Oven Hidden Bake Element Kit
252BROIL ELEMENT
253SENSOR ASM
254WB25T10101 GE Oven Halogen Lamp Bulb G9
257WB25T10102 GE Oven Top-Mounted Halogen Bulb G9
258WB25X31221 GE Oven Halogen Lamp Assembly
260WB25X31222 GE Halogen Lamp Assembly
261WB34T10145 GE Oven Light Lens
263LENS OVEN LIGHT
265WB07X21783 GE Oven Lower Vent Trim
266WB07T10805 GE Oven Upper Black Trim Vent
268WB07T10761 GE Oven Bottom Trim Small Cabinet
300WB49X21652 GE Oven Hinge Bracket Assembly
301WB35X21972 GE Broil Element Gasket
405WB34T10160 GE Lower Air Channel
424WB56X43352 GE Air Duct Bottom Cover
490WB55T10197 GE Oven Hidden Bake Cover
578WB24T10147 GE Oven SPDT Light Switch
752WB01X21742 GE Screw
807WB1K5165 GE Oven Black Screw
875WH2X930 GE Screw
