JT5500DF5BB UPPER OVEN

JT5500DF5BB UPPER OVEN

Written by

in

JT5500DF5BB UPPER OVEN

Products

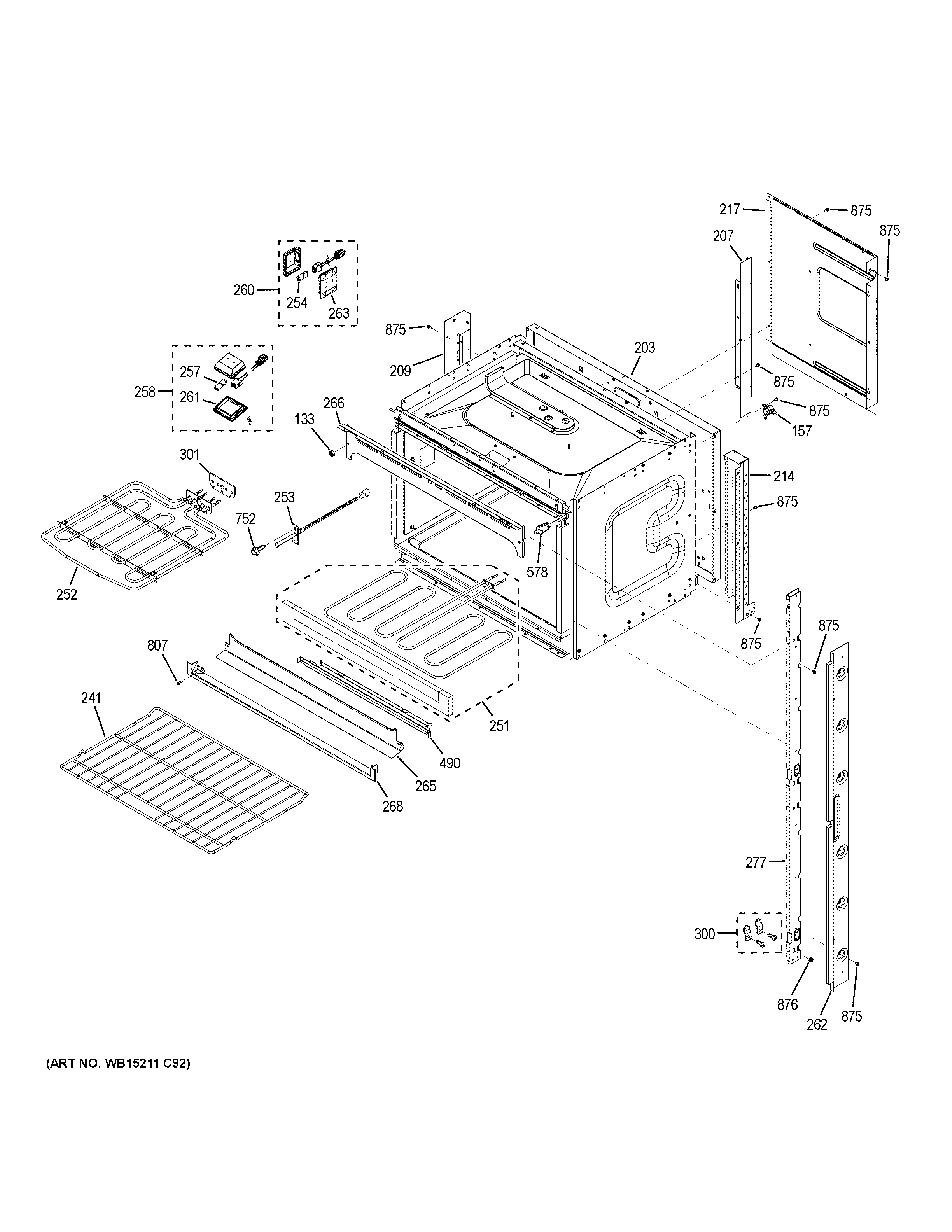

PositionProduct
133WB03T10341 GE Oven Door Bumper
157HIGH LIMIT SWITCH
203GEN WB63T10169
207DIVIDER AIR CENTER
209WB34X21910 GE Oven Rear Channel LT
214WB55X10971 GE Rear Channel
217WB34T10136 GE Upper Rear Duct Cover
241WB48X31582 GE Oven Rack
251WB44X21667 GE Oven Hidden Bake Element Kit
252BROIL ELEMENT
253SENSOR ASM
254WB25T10101 GE Oven Halogen Lamp Bulb G9
257WB25T10102 GE Oven Top-Mounted Halogen Bulb G9
258WB25X31221 GE Oven Halogen Lamp Assembly
260WB25X31222 GE Halogen Lamp Assembly
261WB34T10145 GE Oven Light Lens
262WB07T10744 GE Oven Vertical Side Trim Black
263LENS OVEN LIGHT
265WB07X21783 GE Oven Lower Vent Trim
266WB07T10805 GE Oven Upper Black Trim Vent
268WB07T10761 GE Oven Bottom Trim Small Cabinet
277BRACE VERT ASM (LT)
277BRACE VERT ASM (RT)
300WB49X21652 GE Oven Hinge Bracket Assembly
301WB35X21972 GE Broil Element Gasket
490WB55T10197 GE Oven Hidden Bake Cover
578WB24T10147 GE Oven SPDT Light Switch
752WB01X21742 GE Screw
807WB1K5165 GE Oven Black Screw
875WH2X930 GE Screw
876LOCK NUT
