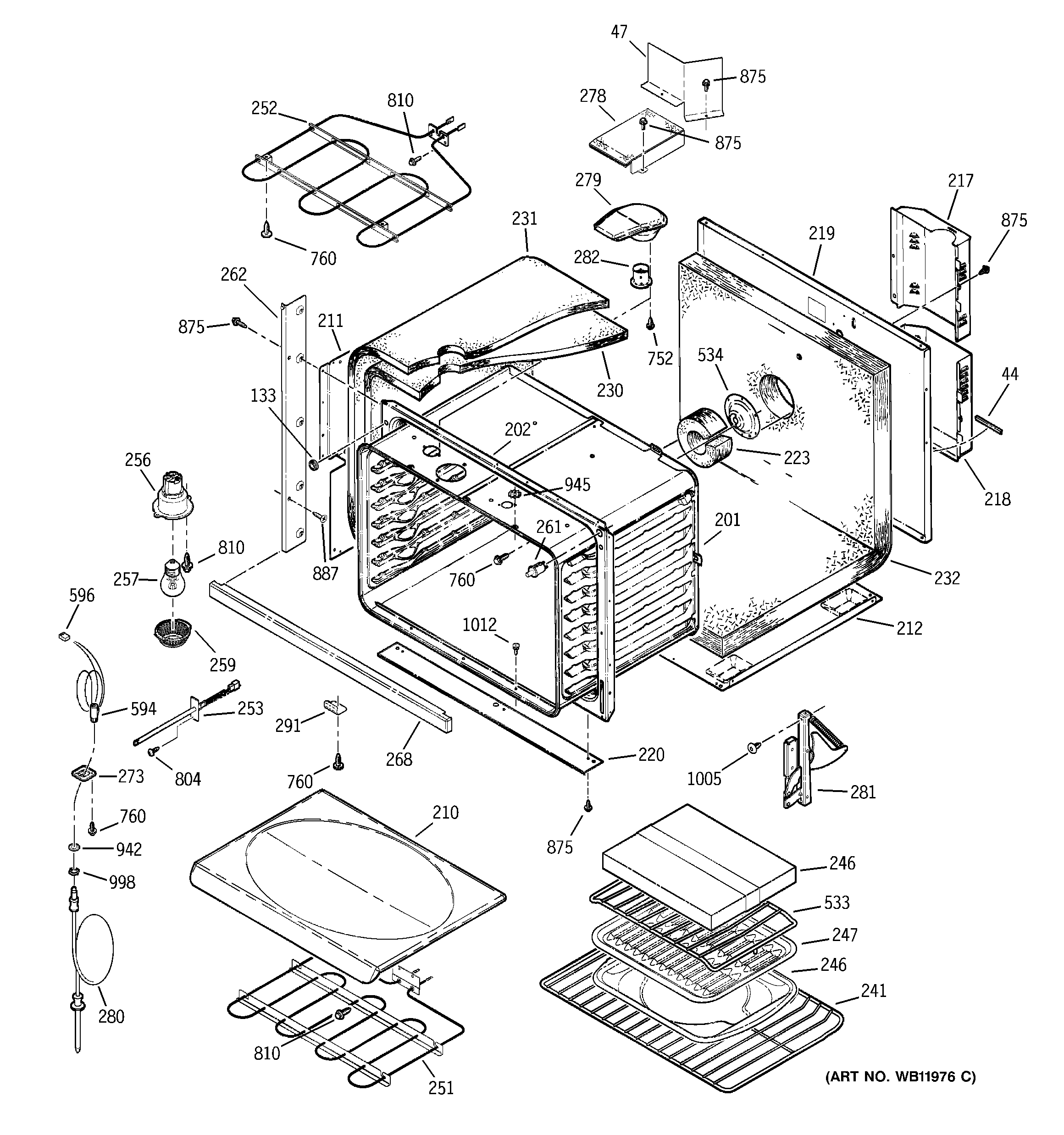

JT910AA5AA BODY PARTS

JT910AA5AA BODY PARTS

Written by

in

JT910AA5AA BODY PARTS

Products

PositionProduct
44GEN WB02K5225
47GEN WB39T10002
133WB01T10022 GE Oven Door Bumper
133WB01T10052 GE Oven Foam Tape
201OVEN BODY-UPPER
202GEN WB63T10064
210WB63T10034 GE Oven Bottom
211GEN WB02K5306
212INSULATION RETAINER-BTM
217WIRE COVER UPR RR
218WIRE COVER LWR RR
219GEN WB56X10189
220BTM TRIM SHIELD
230GEN WB35K5118
231GEN WB35K5119
232WB35T10090 GE Oven Back & Bottom Insulation
241GEN WB48K5022
241GEN WB48T10009
246GEN WB48T10010
247WB48X10056 GE Broil Pan Set, Large Porcelain
251BAKE ELEMENT
252WB44T10043 GE Oven Broil Unit Assembly
253WB23T10015 GE Oven Sensor Probe
256WB08T10002 OVEN LAMP ASSEMBLY 40W BULB
257GEN BUY-LOCAL
259WB25T10002 GE Oven Bulb Lens
261WB24T10147 GE Oven SPDT Light Switch
262GEN WB07K5327
268BOTTOM TRIM AD
273PROBE COVER
278HEAT SHIELD ASM
279GEN WB38T10014
280WB20T10024 GE Oven Thermistor Probe
281GEN WB14T10009
281GEN WB14T10010
282GEN WB28K5010
291GEN WB02X9152
533WB48X5108 GE Oven Roasting Rack
534GEN WB26T10003
594GEN WB08T10014
596GEN WB08K5013
752WB1K5200 GE Oven Screw 340531
760WB1X536 GE Oven Screw
804WB1X681 GE Oven Screw
810WB1X1130 GE Oven Screw 10-32
875WH2X930 GE Screw
887GEN WB01K5178
942WB1X5573 GE Oven Washer
945WB1K5046 GE Oven Washer
998WB1X5572 GE Oven Nut
1005WB01T10008 GE Oven Screw 10-32
1012WB01T10048 GE Oven Type A Shoulder Screw 10-16
