JT910AA5AA CONTROL PANEL

JT910AA5AA CONTROL PANEL

Written by

in

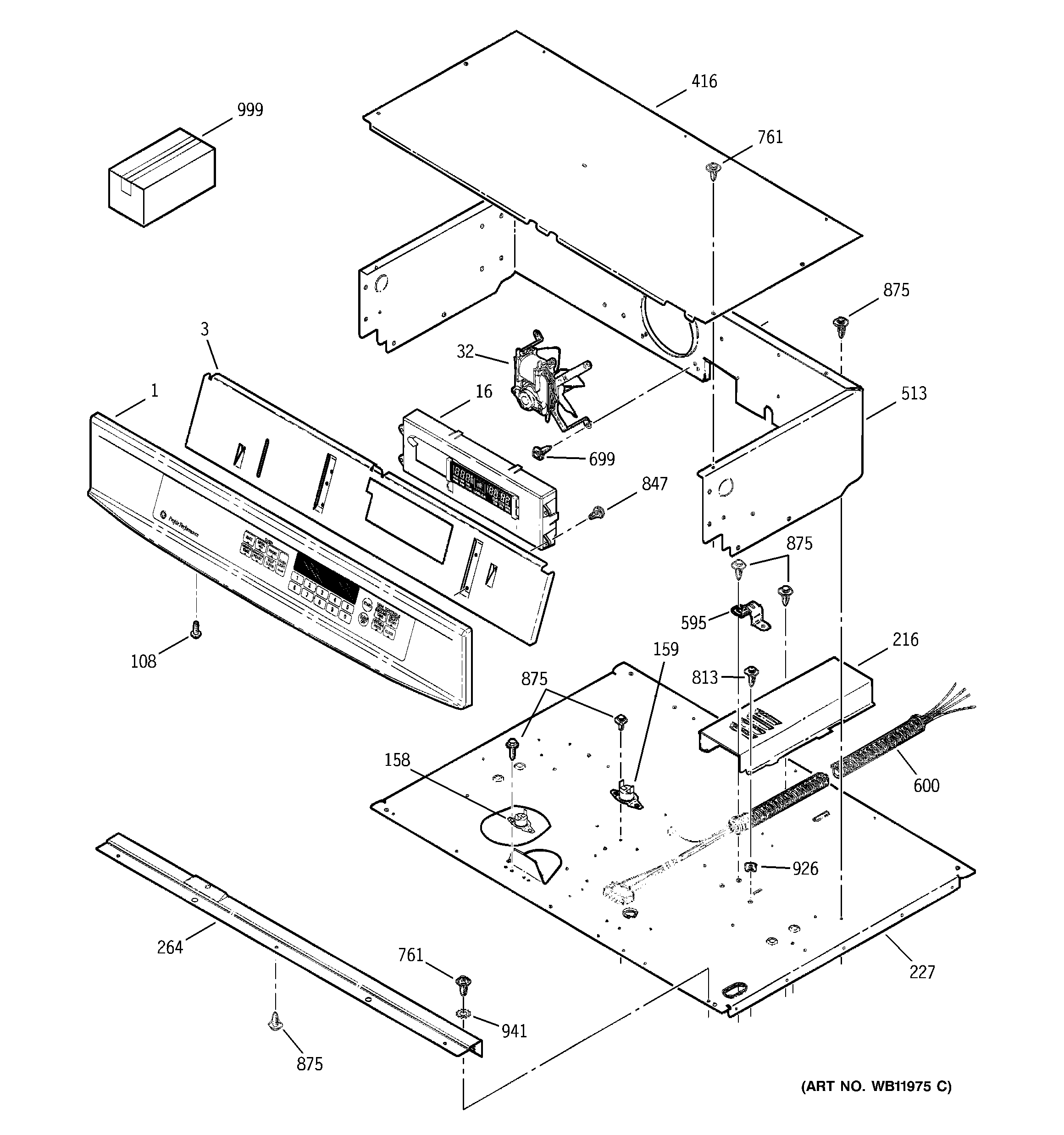

JT910AA5AA CONTROL PANEL

Products

PositionProduct
1GEN WB36T10212
3GEN WB34K5237
16GEN WB27T10312
32WB26K5061 GE Oven Upper Fan Assembly
108WB1X5364 GE Oven Mounting Screw
158WB24T10060 GE Oven Safety Thermostat
159LIMIT SWITCH-UPPER(VENT)
216GEN WB34K5216
227GEN WB02T10109
264GEN WB07T10179
416GEN WB34K5217
513GEN WB26K5063
595WB2K5126 GE Oven Condenser Clamp
600GEN WB18K5473
699WB1M1 GE Oven Screw
761WB1K5029 GE Oven Screw
813WB1X1261 GE Oven Screw
847SCREW
847WB1X1118 GE Oven Screw 6-32T
875WH2X930 GE Screw
926GROUND WASHER
941GEN WB01X1399
999WB18K5490 GE Oven Door Switch Wire Harness
999WIRE HARNESS F.O.D.
999MAIN WIRE HARNESS
999GEN 49-80058
999GEN 31-13806
999GEN 31-10435
999GEN 49-8443
999WB18T10153 GE Motor Lock Wire Harness
