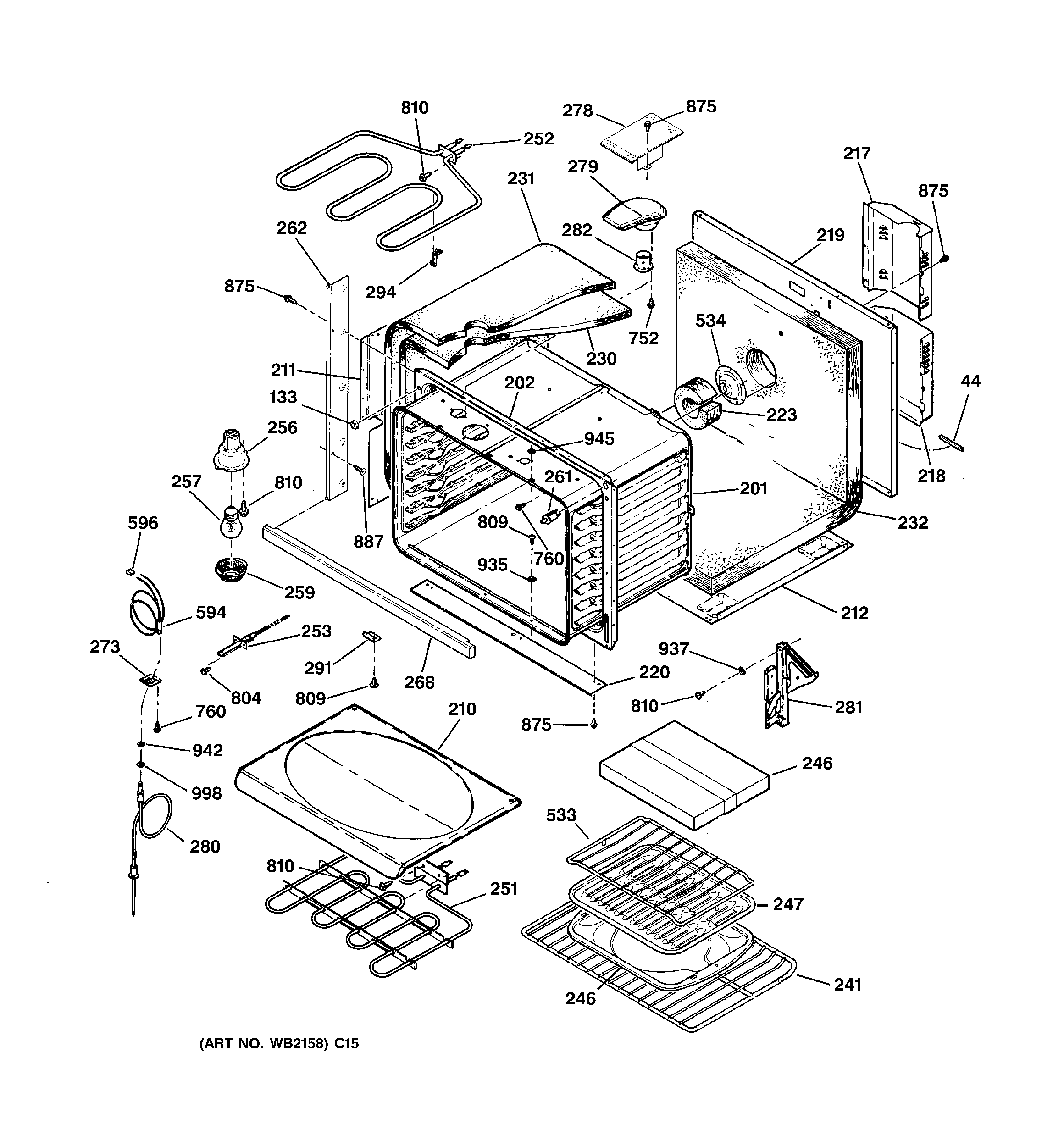

JT910WA2WW BODY PARTS

JT910WA2WW BODY PARTS

Written by

in

JT910WA2WW BODY PARTS

Products

PositionProduct
44GEN WB02K5225
133FELT PAD
133WB01T10022 GE Oven Door Bumper
201GEN WB63T10033
202FRONT FRAME
210WB63T10034 GE Oven Bottom
211GEN WB02K5306
212GEN WB02K5305
217WIRE COVER UPR RR
218WIRE COVER LWR RR
219GEN WB02K5307
220BTM TRIM SHIELD
230GEN WB35K5118
231GEN WB35K5119
232WB35T10090 GE Oven Back & Bottom Insulation
241GEN WB48K5022
241GEN WB48T10009
246GEN WB48T10010
247WB48X10056 GE Broil Pan Set, Large Porcelain
251WB44T10006 GE Oven Bake Element
252WB44K5017 GE Oven Broil Element
253SENSOR ASM
256WB08T10002 OVEN LAMP ASSEMBLY 40W BULB
257GEN BUY-LOCAL
259WB25T10002 GE Oven Bulb Lens
261WB24T10147 GE Oven SPDT Light Switch
262GEN WB07T10162
262GEN WB07K5327
262GEN WB07K5307
262GEN WB07K5311
268BOTTOM TRIM-BLK
268BOTTOM TRIM AD
268GEN WB07T10123
268GEN WB07T10038
273PROBE COVER
278GEN WB34K5252
279GEN WB38T10014
280WB20T10024 GE Oven Thermistor Probe
281GEN WB14T10005
281WB14T10006 GE Oven Hinge Assembly Left
282GEN WB28K5010
291GEN WB02X9152
294WB2X9719 GE Oven Support Bracket Clip
533WB48X5108 GE Oven Roasting Rack
534GEN WB26T10003
594GEN WB08K5053
596GEN WB08K5013
752WB1K5200 GE Oven Screw 340531
760WB1X536 GE Oven Screw
804WB1X681 GE Oven Screw
809WB1X1137 GE Oven Screw
810WB1X1130 GE Oven Screw 10-32
875WH2X930 GE Screw
887WB1K5172 GE Oven Screw
887GEN WB01T10033
887GEN WB01K5178
887WB1K5173 GE Oven Screw ST 8-18 X 3/4" Black
935WB1K5174 GE Oven Washer
937GEN WB01X1140
942WB1X5573 GE Oven Washer
945WB1K5046 GE Oven Washer
998WB1X5572 GE Oven Nut
