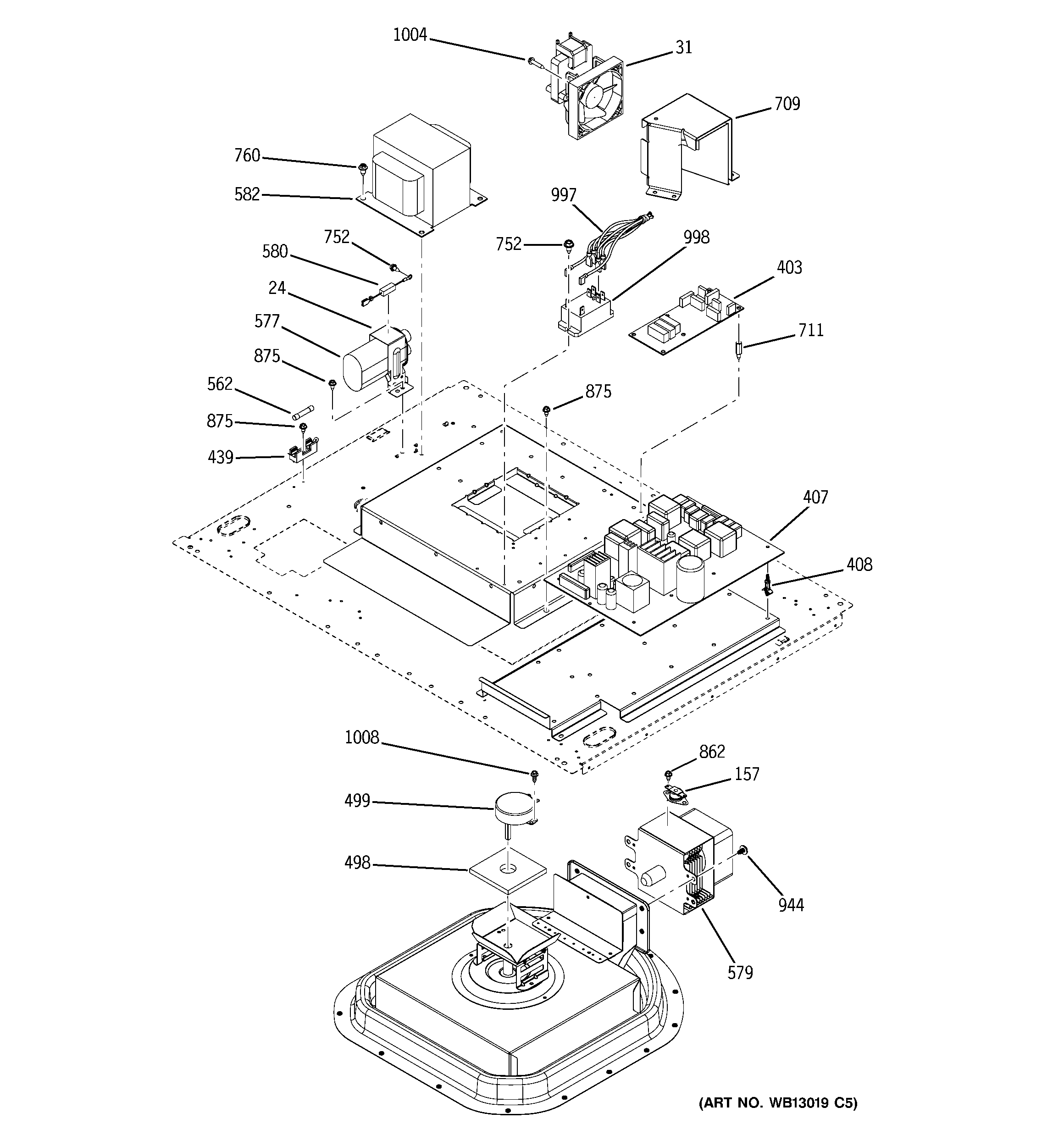

JT930BH1BB CONTROL SECTION

JT930BH1BB CONTROL SECTION

Written by

in

JT930BH1BB CONTROL SECTION

Products

PositionProduct
24GEN WB02T10206
31GEN WB26T10019
157WB20X10003 GE Microwave Thermostat
403GEN WB27T10561
407WB27T10551 GE Power Board Main
408WB02T10207 GE PCB Standoff
439WB06T10013 GE Microwave Fuse Holder
498WB35T10098 GE Stirrer Motor Insulation
499GEN WB26T10028
562WB27X10454 GE Oven Fuse
577GEN WB27T10543
579MAGNETRON ASM
580WB27X10597 GE Oven Diode
582GEN WB27T10544
709GEN WB02T10219
711GEN WB01T10080
752WB1K5200 GE Oven Screw 340531
760WB1X536 GE Oven Screw
862GEN WB01T10090
875WH2X930 GE Screw
944GEN WB01T10082
997GEN WB18T10295
998GEN WB18T10326
1004GEN WH02X0941
1008GEN WB01T10085
