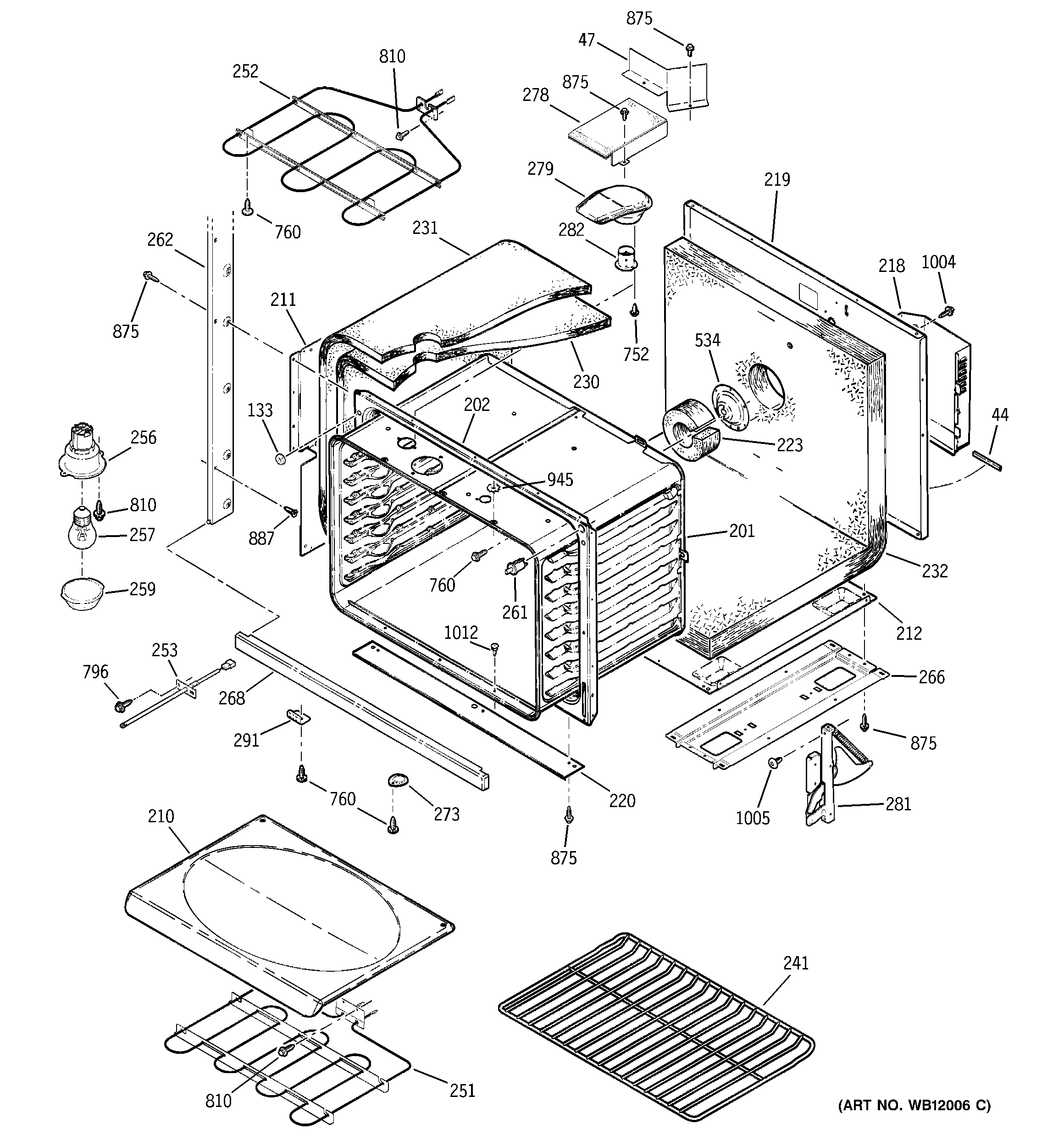

JT950CA4CC LOWER BODY

JT950CA4CC LOWER BODY

Written by

in

JT950CA4CC LOWER BODY

Products

PositionProduct
44GEN WB02K5225
47GEN WB39T10002
133WB01T10022 GE Oven Door Bumper
133WB01T10052 GE Oven Foam Tape
133WB02T10244 GE Oven Felt Pad
201GEN WB63T10068
201OVEN BODY-UPPER
202GEN WB63T10064
210WB63T10034 GE Oven Bottom
211GEN WB02K5306
212INSULATION RETAINER-BTM
218WIRE COVER LWR RR
219GEN WB56X10189
219GEN WB34T10035
220BTM TRIM SHIELD
230GEN WB35K5118
231GEN WB35K5119
232WB35T10090 GE Oven Back & Bottom Insulation
241GEN WB48T10009
241WB48T10095 GE Oven Rack
241GEN WB48K5022
251BAKE ELEMENT
252WB44T10043 GE Oven Broil Unit Assembly
253WB23T10015 GE Oven Sensor Probe
256WB08T10002 OVEN LAMP ASSEMBLY 40W BULB
257GEN BUY-LOCAL
259WB25T10002 GE Oven Bulb Lens
261WB24T10147 GE Oven SPDT Light Switch
262GEN WB07T10163
266WB02K10048 GE Base Rail
268GEN WB07T10123
273GEN WB02K5365
273PROBE COVER
278HEAT SHIELD ASM
279GEN WB38T10014
281GEN WB14T10005
281WB14T10006 GE Oven Hinge Assembly Left
282GEN WB28K5010
291GEN WB02X9152
534GEN WB26T10003
752WB1K5200 GE Oven Screw 340531
760WB1X536 GE Oven Screw
796WB1K5116 GE Oven Screw
810WB1X1130 GE Oven Screw 10-32
875WH2X930 GE Screw
887GEN WB01T10033
945WB1K5046 GE Oven Washer
1004GEN WH02X0941
1005WB01T10008 GE Oven Screw 10-32
1012WB01T10048 GE Oven Type A Shoulder Screw 10-16
