JT950SA3SS CONTROL PANEL

JT950SA3SS CONTROL PANEL

Written by

in

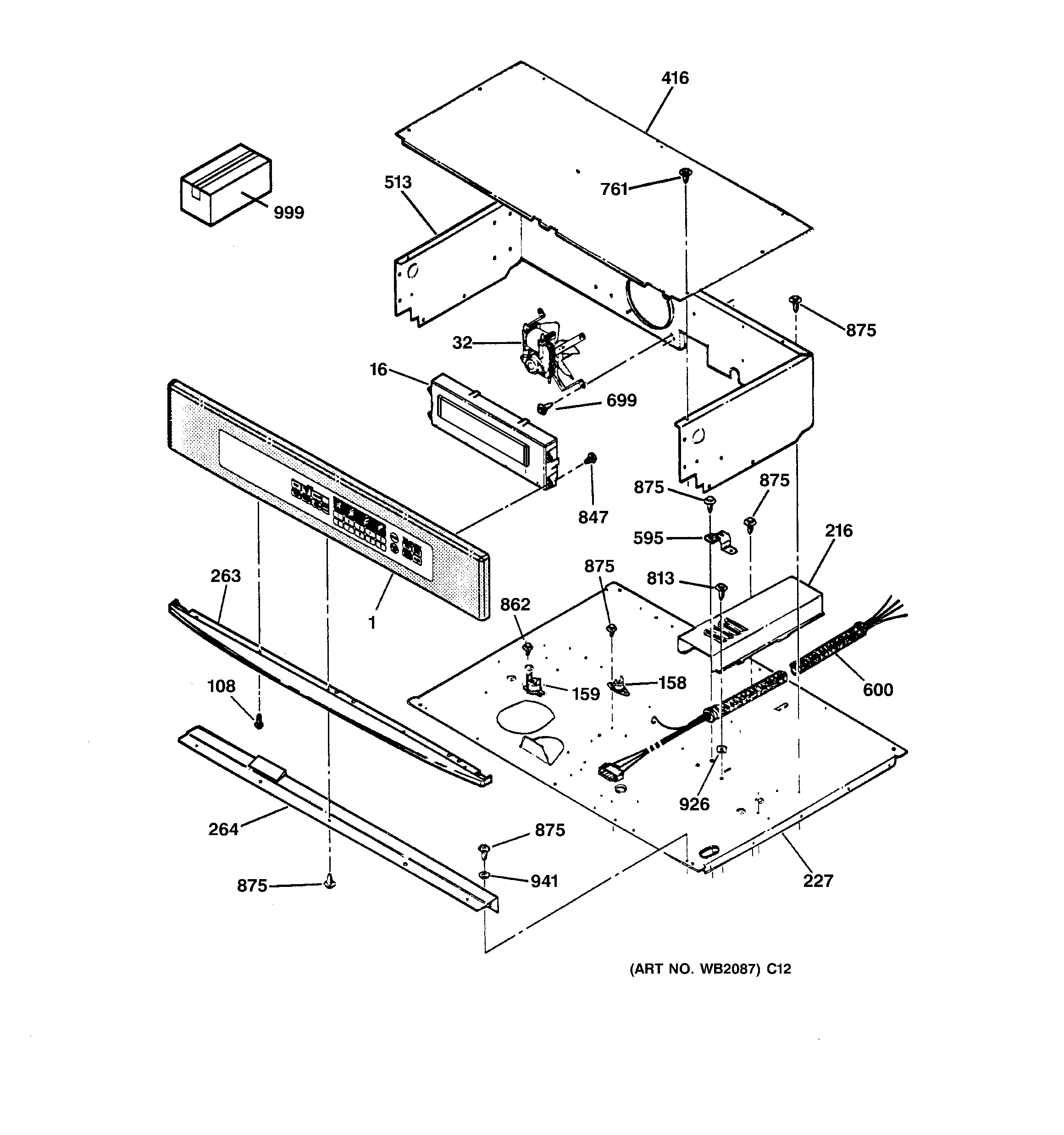

JT950SA3SS CONTROL PANEL

Products

PositionProduct
1GEN WB36T10207
16OVN CNTL (ERC3-D)
32WB26X114 GE Oven Lower Fan Assembly
32WB26K5061 GE Oven Upper Fan Assembly
71GEN WB35T10043
71GEN WB35T10042
80HEAT SHIELD ASM
108WB1X5364 GE Oven Mounting Screw
158GEN WB24T10033
158GEN WB24T10039
159GEN WB24T10045
216GEN WB34K5216
227GEN WB02T10082
263GEN WB07K5471
264GEN WB07T10177
416GEN WB34K5217
513GEN WB26K5063
595WB2K5126 GE Oven Condenser Clamp
600GEN WB18K5540
699WB1M1 GE Oven Screw
761WB1K5029 GE Oven Screw
813WB1X1261 GE Oven Screw
847SCREW
847WB1X1118 GE Oven Screw 6-32T
862GEN WB01X1178
875WH2X930 GE Screw
926GROUND WASHER
941GEN WB01X1399
999GEN WB18T10105
999GEN WB18T10104
999WIRE HARNESS F.O.D.
999GEN 31-13726
999GEN 31-10125
999GEN WB18K5491
999GEN 49-8908
999GEN 49-8443
999WB18K5490 GE Oven Door Switch Wire Harness
