JT950SA5SS UPPER BODY

JT950SA5SS UPPER BODY

Written by

in

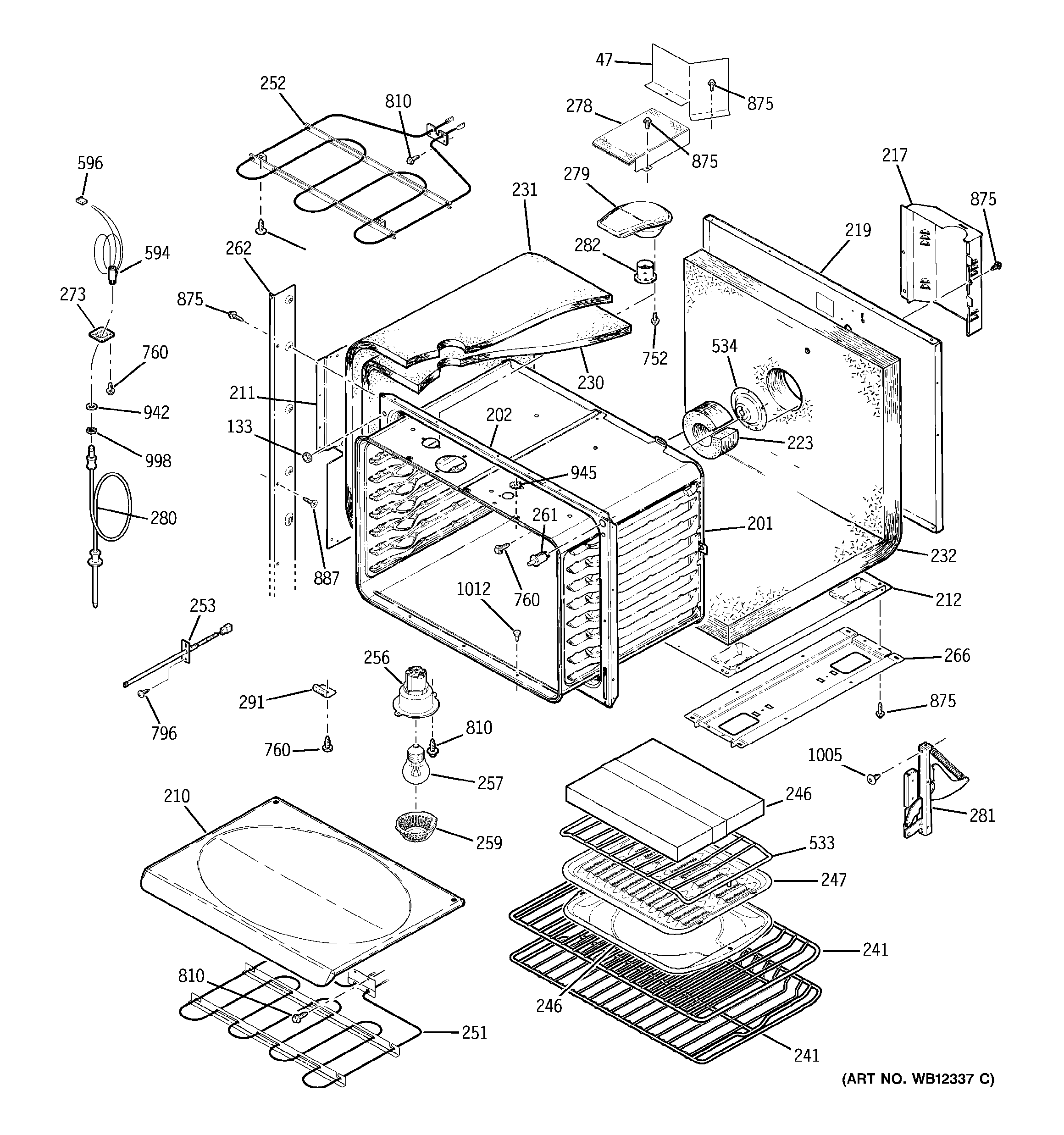

JT950SA5SS UPPER BODY

Products

PositionProduct
47GEN WB39T10002
133WB01T10022 GE Oven Door Bumper
133WB01T10055 GE Oven Foam Tape
201OVEN BODY UPPER
201OVEN BODY LOWER
202GEN WB63T10064
210WB63T10034 GE Oven Bottom
211GEN WB02K5306
212INSULATION RETAINER-BTM
217WIRE COVER UPR RR
219GEN WB56X10189
230GEN WB35K5118
231GEN WB35K5119
232WB35T10090 GE Oven Back & Bottom Insulation
241GEN WB48K5022
241WB48T10095 GE Oven Rack
241GEN WB48T10009
246GEN WB48T10010
247WB48X10056 GE Broil Pan Set, Large Porcelain
251BAKE ELEMENT
252WB44T10043 GE Oven Broil Unit Assembly
253WB23T10015 GE Oven Sensor Probe
256WB08T10002 OVEN LAMP ASSEMBLY 40W BULB
257RANGE ONLY 40W 120V APPL BULB
259WB25T10002 GE Oven Bulb Lens
261WB24T10147 GE Oven SPDT Light Switch
262GEN WB07K5368
266WB02K10048 GE Base Rail
273PROBE COVER
273GEN WB02K5365
278HEAT SHIELD ASM
279GEN WB38T10014
280WB20T10024 GE Oven Thermistor Probe
281GEN WB14T10009
281GEN WB14T10010
282GEN WB28T10070
291GEN WB02X9152
533WB48X5108 GE Oven Roasting Rack
534GEN WB26T10003
594GEN WB08T10014
596GEN WB08K5013
752WB1K5200 GE Oven Screw 340531
760WB1X536 GE Oven Screw
796WB1K5116 GE Oven Screw
810WB1X1130 GE Oven Screw 10-32
875WH2X930 GE Screw
887WB1K5173 GE Oven Screw ST 8-18 X 3/4" Black
942WB1X5573 GE Oven Washer
945WB1K5046 GE Oven Washer
998WB1X5572 GE Oven Nut
1005WB01T10008 GE Oven Screw 10-32
1012WB01T10048 GE Oven Type A Shoulder Screw 10-16
