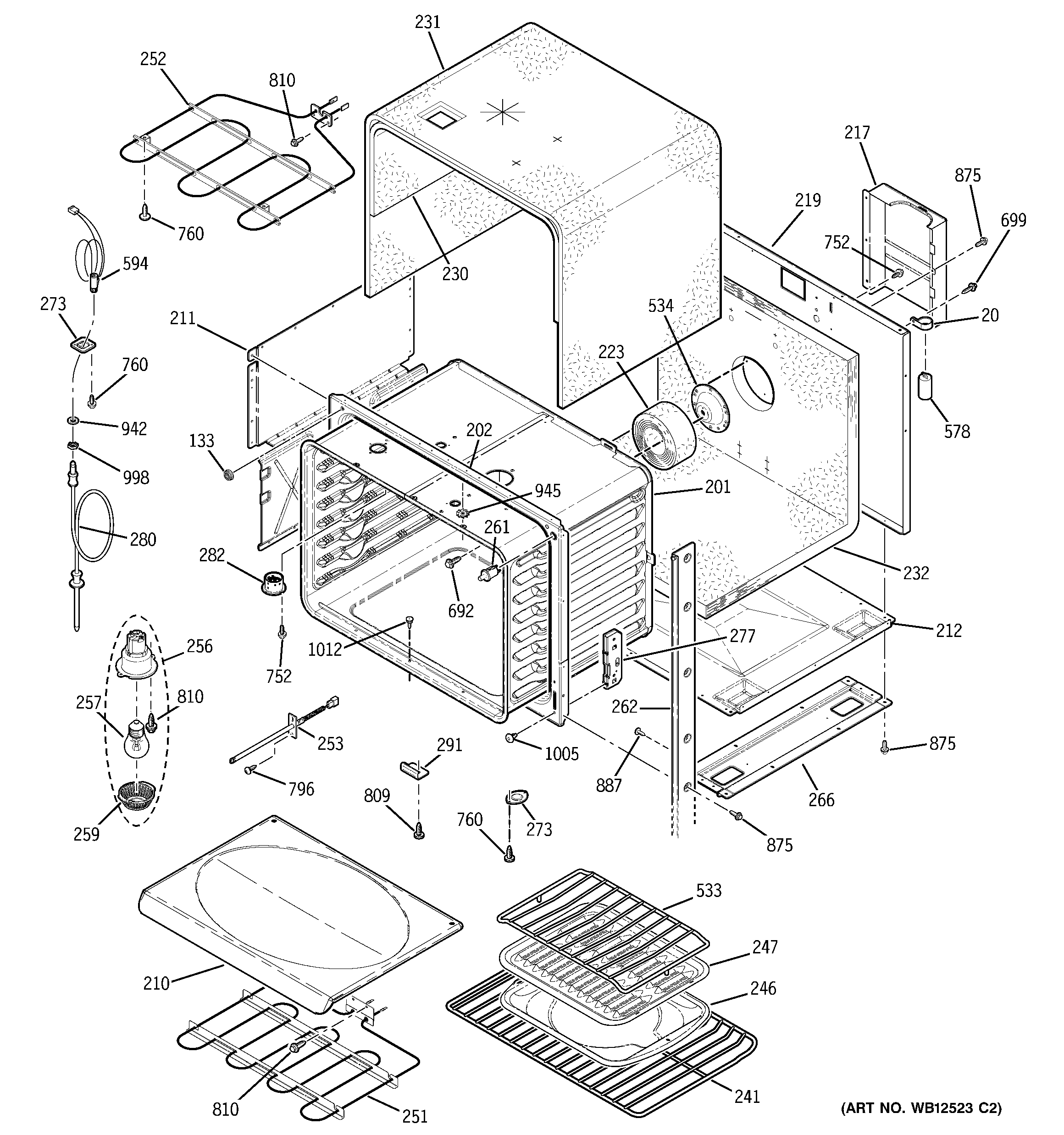

JT952BF1BB UPPER BODY

JT952BF1BB UPPER BODY

Written by

in

JT952BF1BB UPPER BODY

Products

PositionProduct
20WB02T10152 GE Oven Motor Capacitor Bracket
133WB01T10022 GE Oven Door Bumper
133WB03T10156 GE Oven Door Bumper
201WRAPPER OVN CAV UPR
201WRAPPER OVEN CAV ASSY LO
202WB63T10083 GE Front Lower Frame
210WB63T10034 GE Oven Bottom
211GEN WB02K5306
212GEN WB02T10143
217GEN WB34T10055
219WB02X20948 GE Oven Back Insulation Retainer
230GEN WB35T10073
231WB35T10074 GE Oven Lower Insulation
232WB35T10090 GE Oven Back & Bottom Insulation
241WB48T10021 GE Oven Rack
241RACK OVEN
247WB48X10056 GE Broil Pan Set, Large Porcelain
251BAKE ELEMENT
252WB44T10043 GE Oven Broil Unit Assembly
253WB23T10015 GE Oven Sensor Probe
256WB08T10002 OVEN LAMP ASSEMBLY 40W BULB
257RANGE ONLY 40W 120V APPL BULB
259WB25T10002 GE Oven Bulb Lens
261GEN WB24T10065
262TRIM VERT SDE ASM LT
262TRIM VERT SDE ASM RT
266WB02K10048 GE Base Rail
273GEN WB02X8309
277GEN WB10T10025
280WB20T10024 GE Oven Thermistor Probe
282GEN WB28T10074
282GEN WB28T10083
282WB38X33650 GE Vent Tube
291GEN WB02T10146
533WB48X5108 GE Oven Roasting Rack
534WB26T10015 GE Oven Cavity Support
578CAPACITOR MOTOR
594GEN WB08T10018
692SCREW
699WB1M1 GE Oven Screw
752WB1K5200 GE Oven Screw 340531
760WB1X536 GE Oven Screw
796WB1K5116 GE Oven Screw
809WB1X1137 GE Oven Screw
810WB1X1130 GE Oven Screw 10-32
875WZ4X245D GE Screw Package
875WH2X930 GE Screw
887WB1K5173 GE Oven Screw ST 8-18 X 3/4" Black
942WB1X5573 GE Oven Washer
945WB1K5046 GE Oven Washer
998WB1X5572 GE Oven Nut
1005WB01T10008 GE Oven Screw 10-32
1012WB01T10048 GE Oven Type A Shoulder Screw 10-16
