JT952SF3SS LOWER BODY

Products

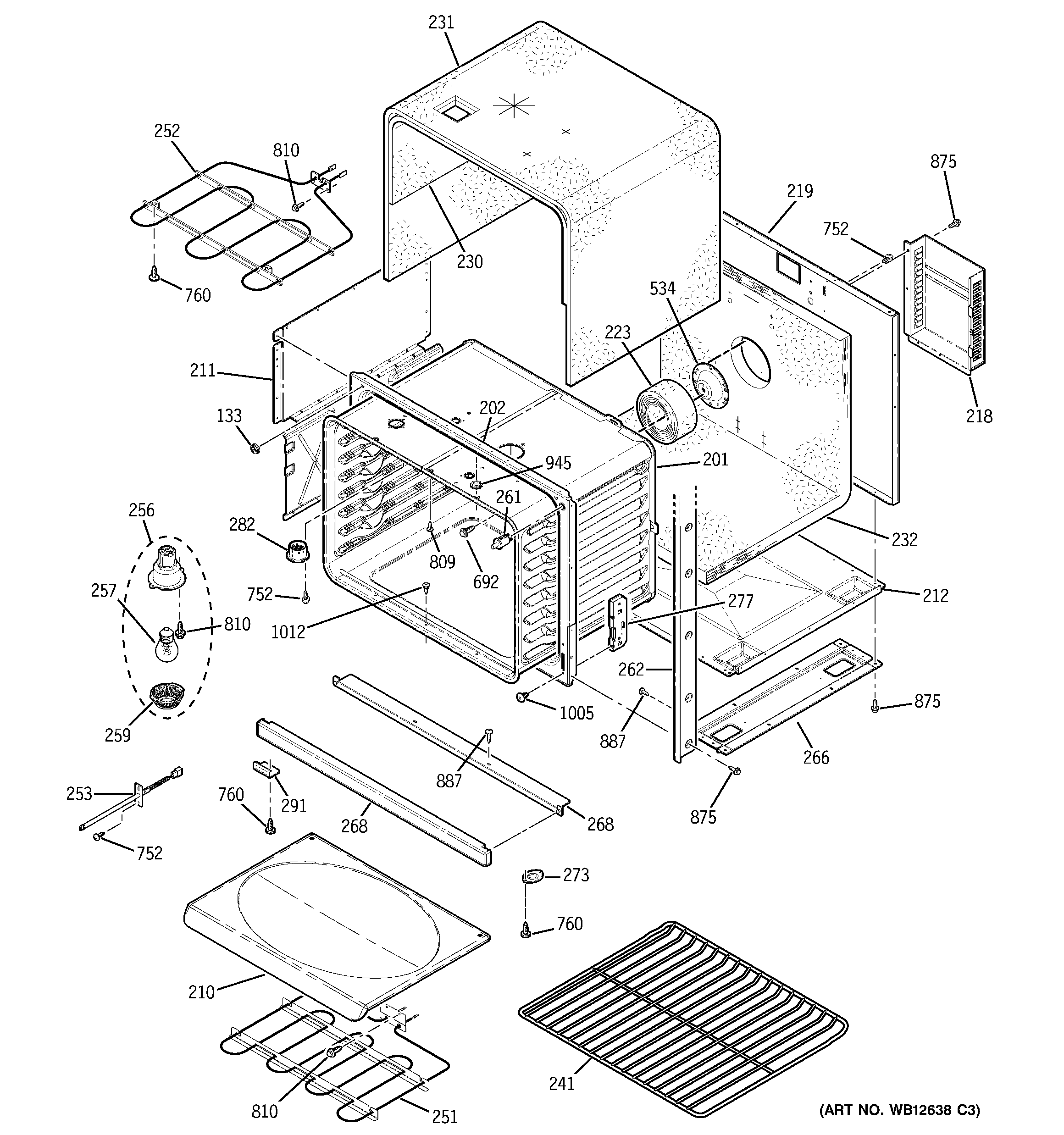

PositionProduct
133WB01T10022 GE Oven Door Bumper
133WB01T10052 GE Oven Foam Tape
133WB03T10156 GE Oven Door Bumper
133WB01T10055 GE Oven Foam Tape
201WRAPPER OVN CAV UPR
201WRAPPER OVEN CAV ASSY LO
202WB63T10083 GE Front Lower Frame
210WB63T10034 GE Oven Bottom
211GEN WB02K5306
212GEN WB02T10143
218GEN WB34T10056
219GEN WB56T10136
219WB02X20948 GE Oven Back Insulation Retainer
230GEN WB35T10073
231WB35T10074 GE Oven Lower Insulation
232WB35T10090 GE Oven Back & Bottom Insulation
241WB48T10021 GE Oven Rack
241RACK OVEN
251BAKE ELEMENT
252WB44T10043 GE Oven Broil Unit Assembly
253WB23T10015 GE Oven Sensor Probe
256WB08T10002 OVEN LAMP ASSEMBLY 40W BULB
257RANGE ONLY 40W 120V APPL BULB
259WB25T10002 GE Oven Bulb Lens
261GEN WB24T10065
262TRIM VERT SDE ASM RT
262TRIM VERT SDE ASM LT
266WB02K10048 GE Base Rail
268GEN WB07T10359
268GEN WB07T10454
273PROBE COVER
273GEN WB02K5365
273GEN WB02X8309
277GEN WB10T10053
282GEN WB28T10083
282GEN WB28T10074
282WB38X33650 GE Vent Tube
291GEN WB02X9152
291GEN WB02T10146
534WB26T10015 GE Oven Cavity Support
692SCREW
752WB1K5200 GE Oven Screw 340531
760WB1X536 GE Oven Screw
809WB1X1137 GE Oven Screw
810WB1X1130 GE Oven Screw 10-32
875WZ4X245D GE Screw Package
875WH2X930 GE Screw
887WB1K5173 GE Oven Screw ST 8-18 X 3/4" Black
945WB1K5046 GE Oven Washer
1005WB01T10008 GE Oven Screw 10-32
1012WB01T10048 GE Oven Type A Shoulder Screw 10-16
