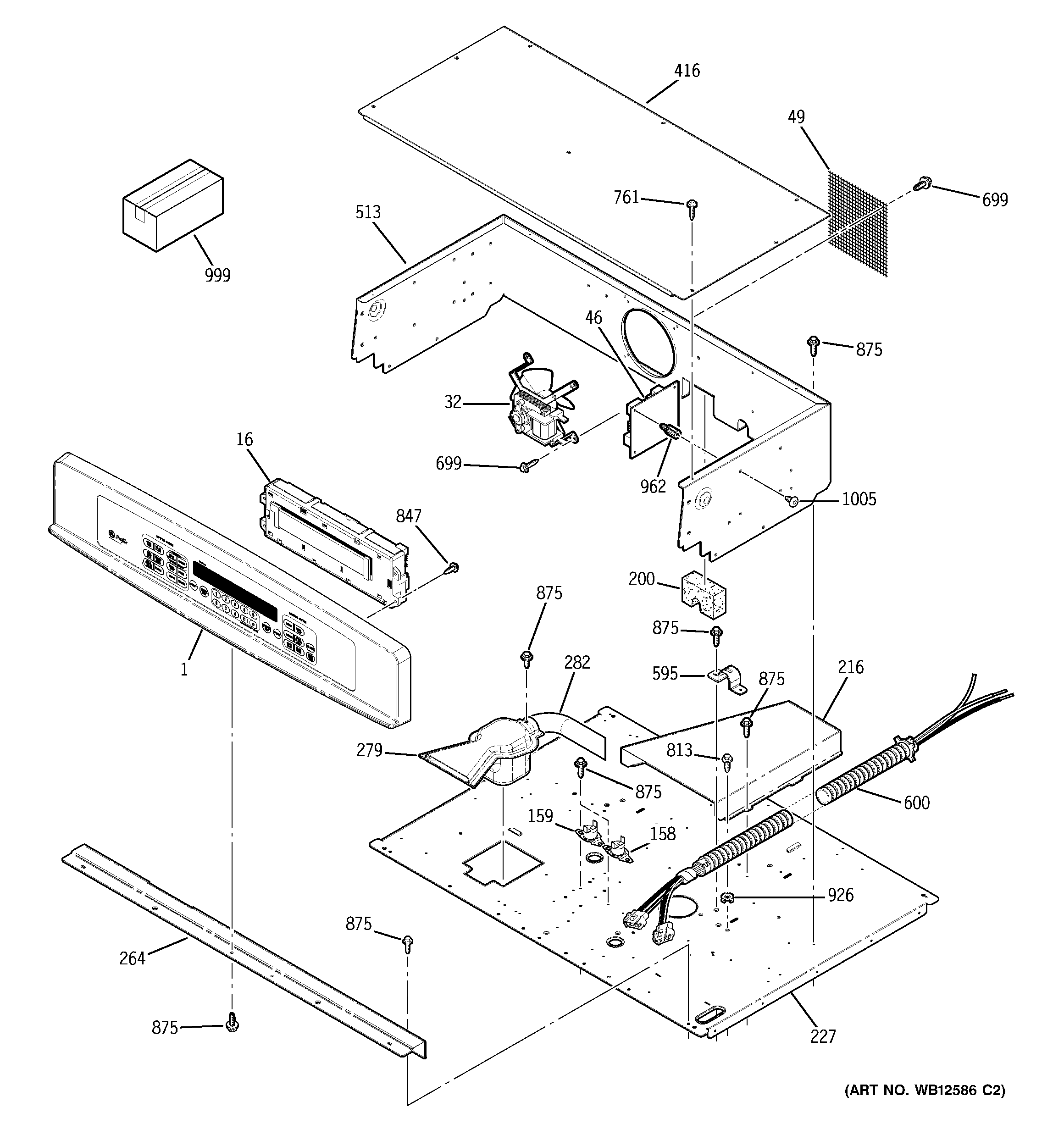

JT952WF1WW CONTROL PANEL

JT952WF1WW CONTROL PANEL

Written by

in

JT952WF1WW CONTROL PANEL

Products

PositionProduct
1GEN WB36T10600
16GEN WB27T10431
32GEN WB26T10019
32WB26T10018 GE Oven Fan Motor
46GEN WB27T10438
49WB34T10091 GE Oven Fan Screen
158GEN WB24T10076
159WB24T10060 GE Oven Safety Thermostat
200GEN WB02T10167
216WB34T10057 GE Oven Top Cover Wire
227WB02T10343 GE Ran Insulation Retainer – Lower
264GEN WB07T10252
279WB38T10019 GE Oven Vent Box Assembly
282GEN WB28T10074
282GEN WB28T10083
282WB38X33650 GE Vent Tube
416GEN WB34T10058
513GEN WB26T10014
595WB2K5126 GE Oven Condenser Clamp
600GEN WB18T10273
699WB1M1 GE Oven Screw
761WB1K5185 GE Oven White Screw
761WB1K5029 GE Oven Screw
813WB1X1261 GE Oven Screw
847WB1X1118 GE Oven Screw 6-32T
875WZ4X245D GE Screw Package
875WH2X930 GE Screw
926GROUND WASHER
962WB02T10160 GE Oven Circuit Board Standoff
999GEN 49-80129
999GEN 31-10524
999GEN 31-10551
999GEN WB18T10269
999GEN 31-14013
1005WB01T10008 GE Oven Screw 10-32
