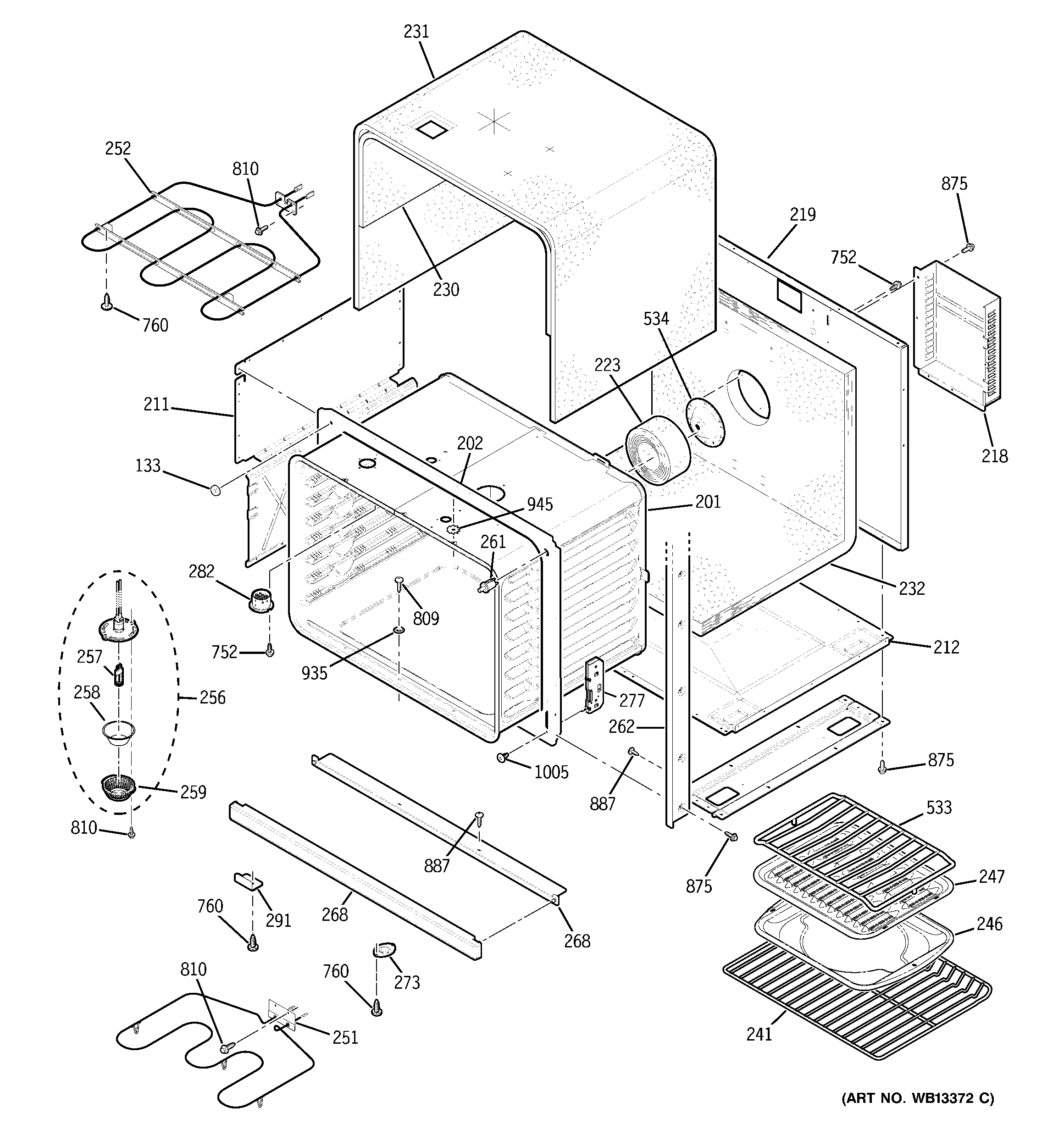

JT980BH1BB LOWER OVEN BODY

JT980BH1BB LOWER OVEN BODY

Written by

in

JT980BH1BB LOWER OVEN BODY

Products

PositionProduct
133WB01T10022 GE Oven Door Bumper
133WB01T10052 GE Oven Foam Tape
133WB03T10156 GE Oven Door Bumper
201WRAPPER OVEN CAV ASSY LO
202WB63T10083 GE Front Lower Frame
211GEN WB02T10220
211WB63T10043 GE Cabinet Side
211GEN WB02K5306
212GEN WB02T10143
218GEN WB34T10056
219GEN WB02T10201
219WB02X20948 GE Oven Back Insulation Retainer
230GEN WB35T10096
230GEN WB35T10073
231WB35T10074 GE Oven Lower Insulation
231GEN WB35T10095
232WB35T10090 GE Oven Back & Bottom Insulation
232GEN WB35T10097
241GEN WB48T10038
241RACK OVEN
246WB48X10056 GE Broil Pan Set, Large Porcelain
251WB44T10048 GE Oven Dual Bake Element
251GEN WB44T10046
252WB44T10047 GE Oven Broil Element 2500W
252WB44T10045 GE Oven Broil Unit Assembly Lower (DLX)
256GEN WB08T10028
256GEN WB25T10025
257WB08T10023 GE Oven Halogen Lamp 35W 130V
257WB49X29679 GE Range Halogen Bulb Kit
258GEN WB25T10035
259WB25T10027 GE Oven Lens Lamp
259OV LAMP LENS LWR
261GEN WB24T10065
262TRIM VERT SDE ASM RT
262TRIM VERT SDE ASM LT
268GEN WB07T10401
268GEN WB07T10422
273GEN WB02K5365
277GEN WB10T10053
282WB38X33650 GE Vent Tube
282GEN WB28T10083
291GEN WB02T10146
533WB48X5108 GE Oven Roasting Rack
534WB26T10015 GE Oven Cavity Support
752WB1K5200 GE Oven Screw 340531
760WB1X536 GE Oven Screw
809WB1X1137 GE Oven Screw
810WB1X1130 GE Oven Screw 10-32
875WH2X930 GE Screw
887WB1K5173 GE Oven Screw ST 8-18 X 3/4" Black
935WB1K5174 GE Oven Washer
945WB1K5046 GE Oven Washer
1005WB01T10008 GE Oven Screw 10-32
