JT980WH1WW UPPER OVEN BODY

JT980WH1WW UPPER OVEN BODY

Written by

in

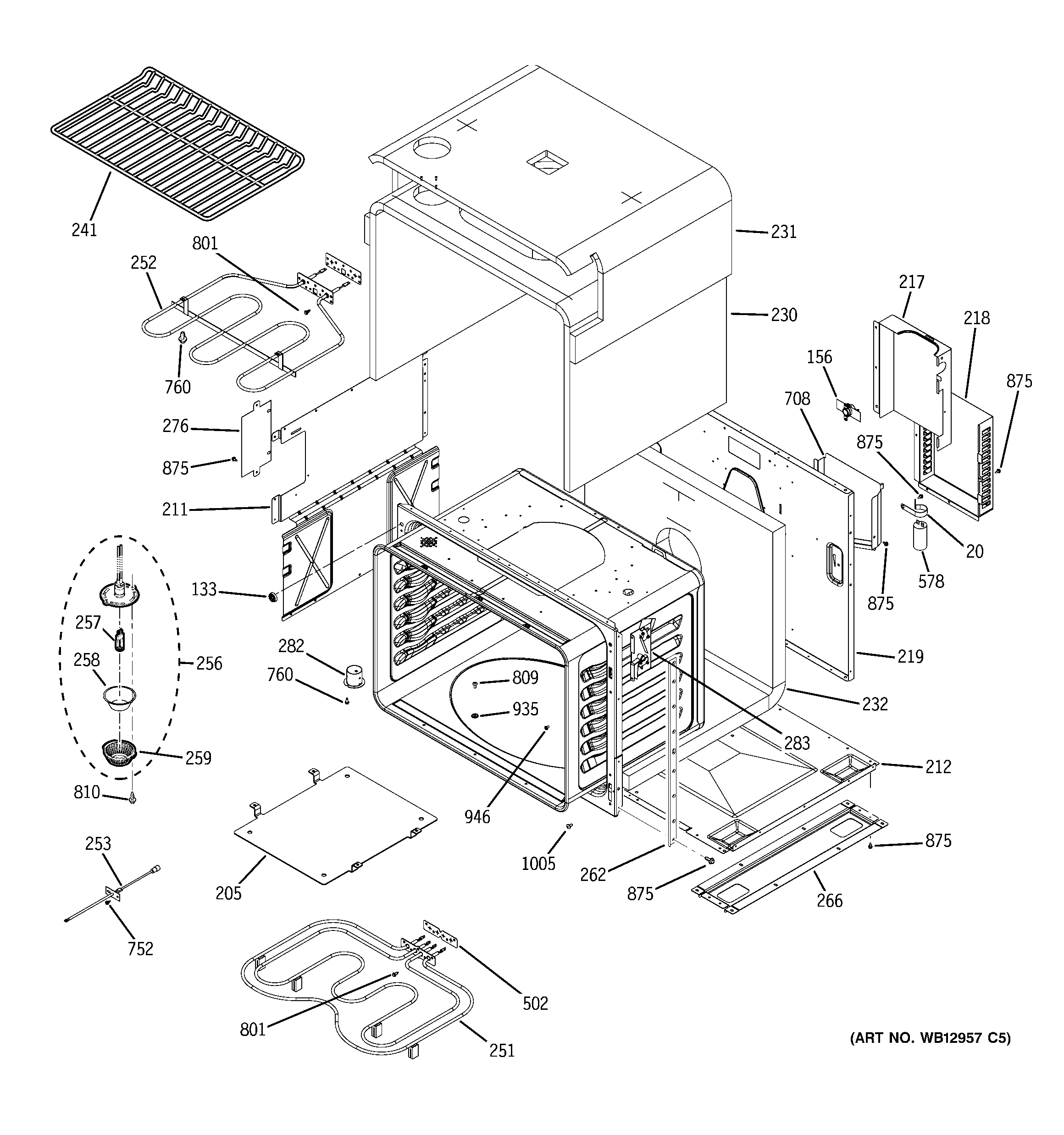

JT980WH1WW UPPER OVEN BODY

Products

PositionProduct
20WB02T10152 GE Oven Motor Capacitor Bracket
133WB01T10052 GE Oven Foam Tape
133WB03T10156 GE Oven Door Bumper
133WB01T10022 GE Oven Door Bumper
156WB24T10105 GE Oven Runaway TCO
205GEN WB02T10199
211WB63T10043 GE Cabinet Side
211GEN WB02K5306
211GEN WB02T10220
212GEN WB02T10143
217GEN WB34T10090
218GEN WB34T10056
219WB02X20948 GE Oven Back Insulation Retainer
219GEN WB02T10201
230GEN WB35T10073
230GEN WB35T10096
231GEN WB35T10095
231WB35T10074 GE Oven Lower Insulation
232GEN WB35T10097
232WB35T10090 GE Oven Back & Bottom Insulation
241GEN WB48T10038
241RACK OVEN
251WB44T10048 GE Oven Dual Bake Element
251GEN WB44T10046
252WB44T10047 GE Oven Broil Element 2500W
252WB44T10045 GE Oven Broil Unit Assembly Lower (DLX)
253WB23T10020 GE Oven Sensor Assembly
256GEN WB08T10028
256GEN WB25T10025
257WB49X29679 GE Range Halogen Bulb Kit
257WB08T10023 GE Oven Halogen Lamp 35W 130V
258GEN WB25T10035
259WB25T10027 GE Oven Lens Lamp
259OV LAMP LENS LWR
262TRIM VERT SDE ASM (LT)
262TRIM VERT SDE ASM (RT)
266WB02K10048 GE Base Rail
276GEN WB02T10210
282WB38X33650 GE Vent Tube
282GEN WB28T10083
283GEN WB15T10115
283GEN WB15T10099
502GEN WB04T10034
578CAPACITOR MOTOR
708GEN WB02T10218
752WB1K5200 GE Oven Screw 340531
760WB1X536 GE Oven Screw
801GEN WB01T10088
809WB1X1137 GE Oven Screw
810WB1X1130 GE Oven Screw 10-32
875WH2X930 GE Screw
935WB1K5174 GE Oven Washer
946WB01T10084 GE Screw 8-32 x .343 Truss
1005WB01T10008 GE Oven Screw 10-32
