JT980WH2WW LOWER OVEN BODY

JT980WH2WW LOWER OVEN BODY

Written by

in

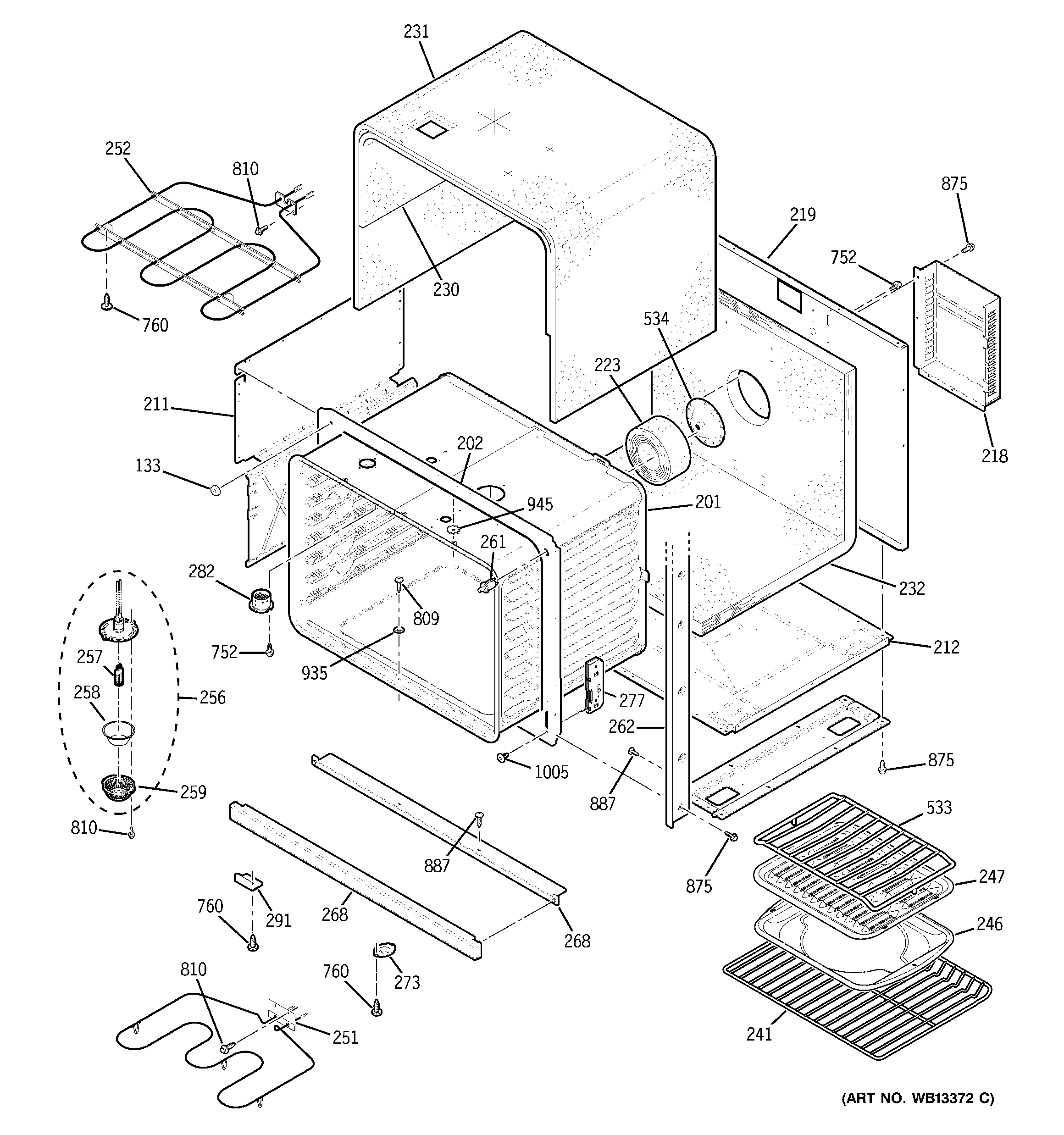

JT980WH2WW LOWER OVEN BODY

Products

PositionProduct
133WB01T10052 GE Oven Foam Tape
133WB01T10022 GE Oven Door Bumper
133WB03T10156 GE Oven Door Bumper
201WRAPPER OVEN CAV ASSY LO
202WB63T10083 GE Front Lower Frame
211GEN WB02T10220
211WB63T10043 GE Cabinet Side
211GEN WB02K5306
212GEN WB02T10143
218GEN WB34T10056
219GEN WB02T10201
219GEN WB56T10136
223WB35T10090 GE Oven Back & Bottom Insulation
230GEN WB35T10073
230GEN WB35T10096
231GEN WB35T10095
231WB35T10074 GE Oven Lower Insulation
232GEN WB35T10097
232GEN WB35T10123
241RACK OVEN
241GEN WB48T10038
246WB48X10056 GE Broil Pan Set, Large Porcelain
251GEN WB44T10046
251WB44T10048 GE Oven Dual Bake Element
252WB44T10047 GE Oven Broil Element 2500W
252WB44T10045 GE Oven Broil Unit Assembly Lower (DLX)
256GEN WB08T10028
257WB08T10023 GE Oven Halogen Lamp 35W 130V
257WB49X29679 GE Range Halogen Bulb Kit
258GEN WB25T10035
258GEN WB25T10025
259WB25T10027 GE Oven Lens Lamp
259OV LAMP LENS LWR
261GEN WB24T10111
262TRIM VERT SDE ASM (RT)
262TRIM VERT SDE ASM (LT)
268TRIM BTM 30 (WHT)
268GEN WB07T10426
273GEN WB02K5365
277GEN WB10T10083
282GEN WB28T10083
282WB38X33650 GE Vent Tube
291GEN WB02X9152
533WB48X5108 GE Oven Roasting Rack
534WB26T10015 GE Oven Cavity Support
752WB1K5200 GE Oven Screw 340531
760WB1X536 GE Oven Screw
809WB1X1137 GE Oven Screw
810WB1X1130 GE Oven Screw 10-32
810GEN WB01T10088
810WB01T10072 GE Screw 8-32 1HW .312 Nickel
875WH2X930 GE Screw
887WB1K5172 GE Oven Screw
935WB1K5174 GE Oven Washer
945WB1K5046 GE Oven Washer
1005WB01T10008 GE Oven Screw 10-32
