JTD3000DN1BB UPPER OVEN

JTD3000DN1BB UPPER OVEN

Written by

in

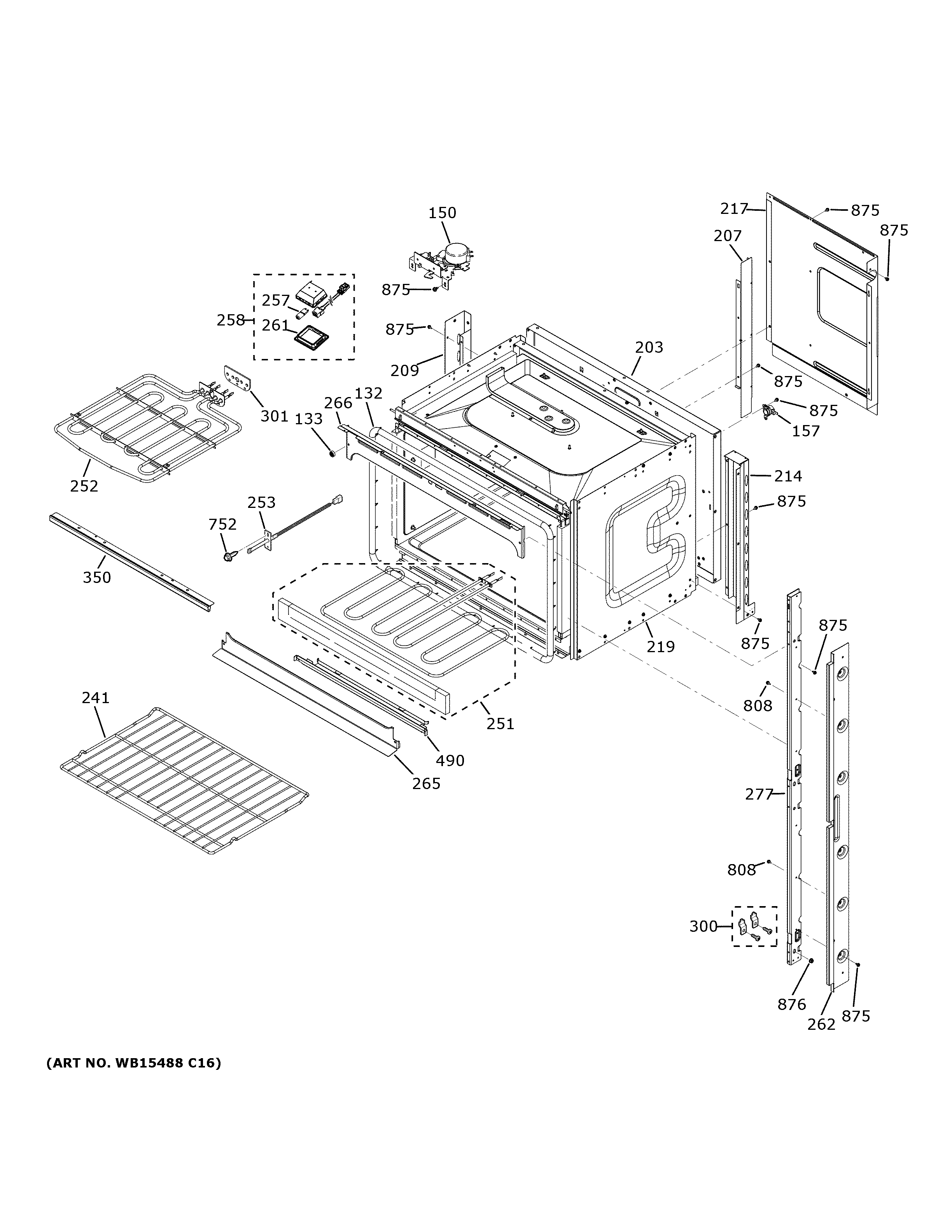

JTD3000DN1BB UPPER OVEN

Products

PositionProduct
132WB35X32825 GE Oven Door Gasket
133WB03T10341 GE Oven Door Bumper
150LATCH ASM
157HIGH LIMIT SWITCH
203GEN WB63T10169
207WB34T10134 GE Center Air Divider
209WB34X21910 GE Oven Rear Channel LT
214WB55X10971 GE Rear Channel
217WB34T10136 GE Upper Rear Duct Cover
219WB34X21913 GE Side Insulation Retainer
241WB48X31582 GE Oven Rack
251WB44X21667 GE Oven Hidden Bake Element Kit
252BROIL ELEMENT
253SENSOR ASM
257WB25T10102 GE Oven Top-Mounted Halogen Bulb G9
258WB25X31221 GE Oven Halogen Lamp Assembly
261WB34X31317 GE Oven Light Lens
262WB07T10770 GE Oven Vertical Side Trim Black
265WB07X21783 GE Oven Lower Vent Trim
266WB07X32831 GE Upper Trim Vent
277WB07X30796 GE Vertical Brace Assembly LH
277VERTICAL BRACE ASM RH
300WB49X21652 GE Oven Hinge Bracket Assembly
301WB35X21972 GE Broil Element Gasket
350GEN WB07T10787
490WB55T10197 GE Oven Hidden Bake Cover
752WB01X21742 GE Screw
808WB1K5173 GE Oven Screw ST 8-18 X 3/4" Black
875WH2X930 GE Screw
876LOCK NUT
