JTD3000DN3WW CONTROL PANEL

JTD3000DN3WW CONTROL PANEL

Written by

in

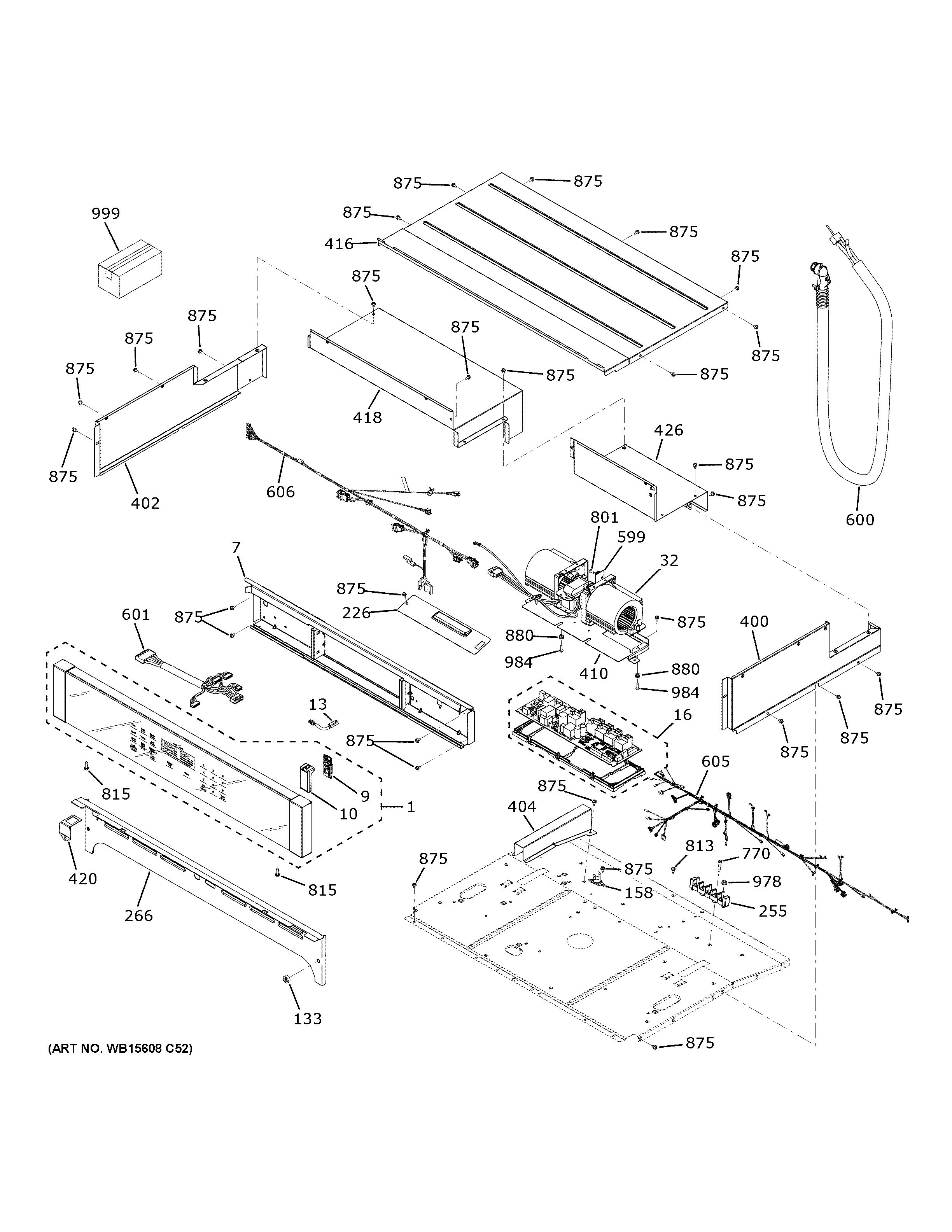

JTD3000DN3WW CONTROL PANEL

Products

PositionProduct
1WB27X39808 GE LCD Control Panel White
7WB07X32471 GE Oven Control Panel Mounting BRack
9WB27X33353 GE Wi-Fi Module Kit
10WB02X20265 GE Transceiver Housing
13WB18X30704 GE Jumper
16WB27X36808 GE Control RC17 Flashed
32WB26X31060 GE Oven Blower Fan
133WB03T10341 GE Oven Door Bumper
158WB24X35587 GE Limit Switch
226COVER LATCH ACCESS
255WB17K10001 GE Oven Block Terminal
266WB07X32831 GE Upper Trim Vent
400COVER TOP RIGHT EDGE
402WB44T10126 GE Oven Top Left Edge Cover
404WB34T10150 GE Upper Air Vent Channel
410WB37T10026 GE Oven Upper Fan Mount Bracket
416WB34X28390 GE Oven Front Cover Housing
418WB24X32772 GE Top Rear Cover
420WB24X33028 GE RJ45 Bracket
426WB35T10273 GE Oven Rear Wire Cover
599WB27T11463 GE Oven Fan Sensor Board
600WB18T10580 GE Oven 6 FT Optional Conduit
600WB18X33486 GE Conduit Wire Assembly
601WB18X33043 GE COM Harness Wire
605WB49X35794 GE Double Oven Main Harness
606WB18X47029 GE Latch Wire Harness
606WB18X33042 GE Dishwasher Latch COM Harness Wire
770WB1K5072 GE Oven Screw
801WD02X10129 GE Dishwasher Screw 8-18 AB HW 1/2"
813WB1X1261 GE Oven Screw
815WB01X21650 GE Screw 8-18 AB TRT20NBS 5/8
875WH2X930 GE Screw
880WB01T10128 GE Grommet
978WB1X1259 GE Hex Nut
984WB01T10130 GE Screw 7-19 1/4 HEX 1/2 IN
999PM MINI MANUAL AND WIRING
999PM WI FI INSTRUCTIONS
999INSTRUCTION INSTALL
999PM OWNERS MANUAL
999PM INSTALL INSTRUCTIONS
