JTD3000DN3WW LOWER DOOR

JTD3000DN3WW LOWER DOOR

Written by

in

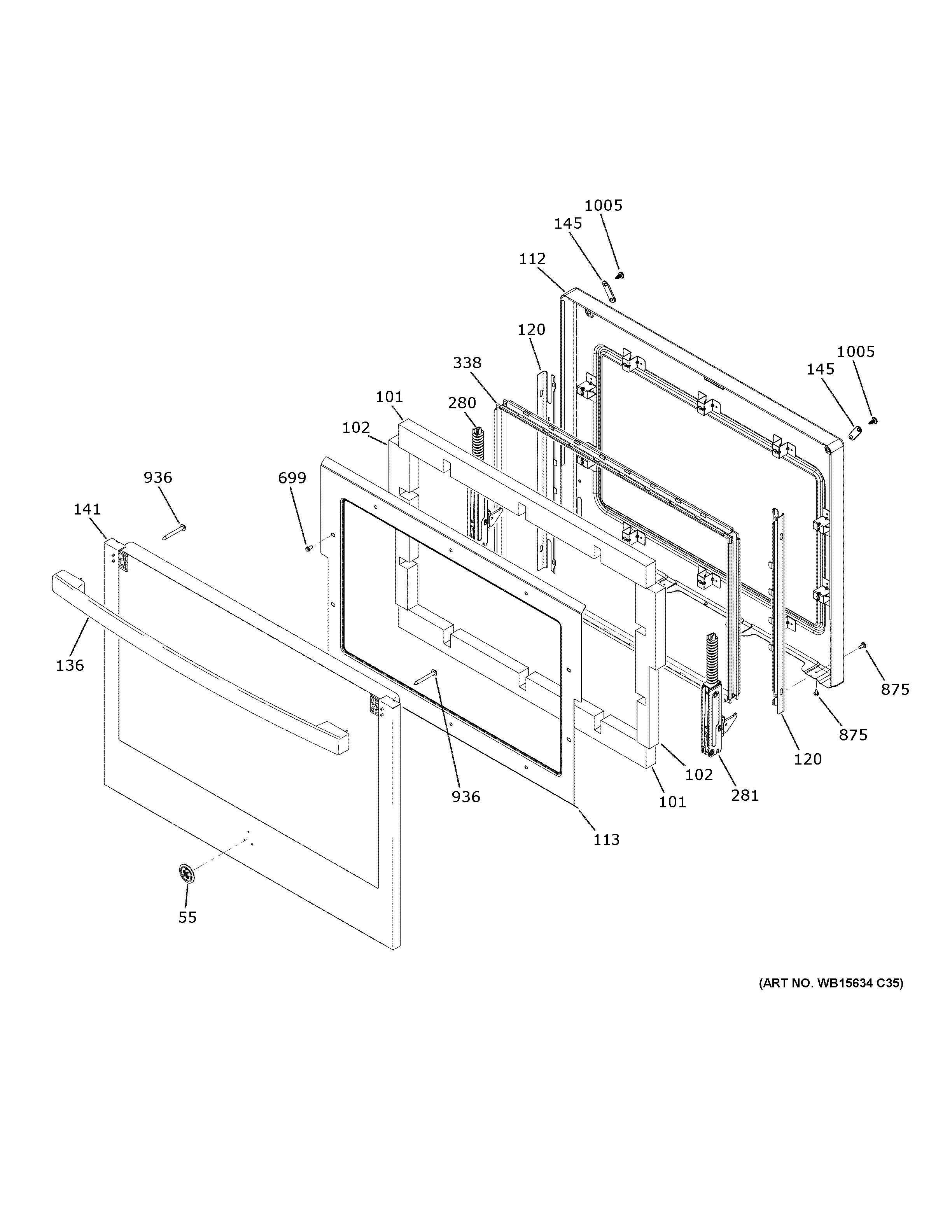

JTD3000DN3WW LOWER DOOR

Products

PositionProduct
55WB02X29637 GE Oven Badge Assembly
101INSULATION DR TOP
102WB35X31513 GE Door Side Insulation
112WB63X32569 GE Oven Assembly Door Liner
113WB34X31516 GE Door Insulation Retainer
120LINER SUPPORT
136WB15X32840 GE White Handle and Endcap
141OUTER OVEN DOOR-WHITE
145WB02X32816 GE Oven Door Liner Plug
280HINGE DOOR LT
281HINGE DOOR RT
338WINDOW PACK ASM
699WB1M1 GE Oven Screw
875WH2X930 GE Screw
936WB01T10132 GE Oven Hex Screw 10-32 1 3/4"
1005WB01T10008 GE Oven Screw 10-32
