JTD3000DN3WW UPPER OVEN

JTD3000DN3WW UPPER OVEN

Written by

in

JTD3000DN3WW UPPER OVEN

Products

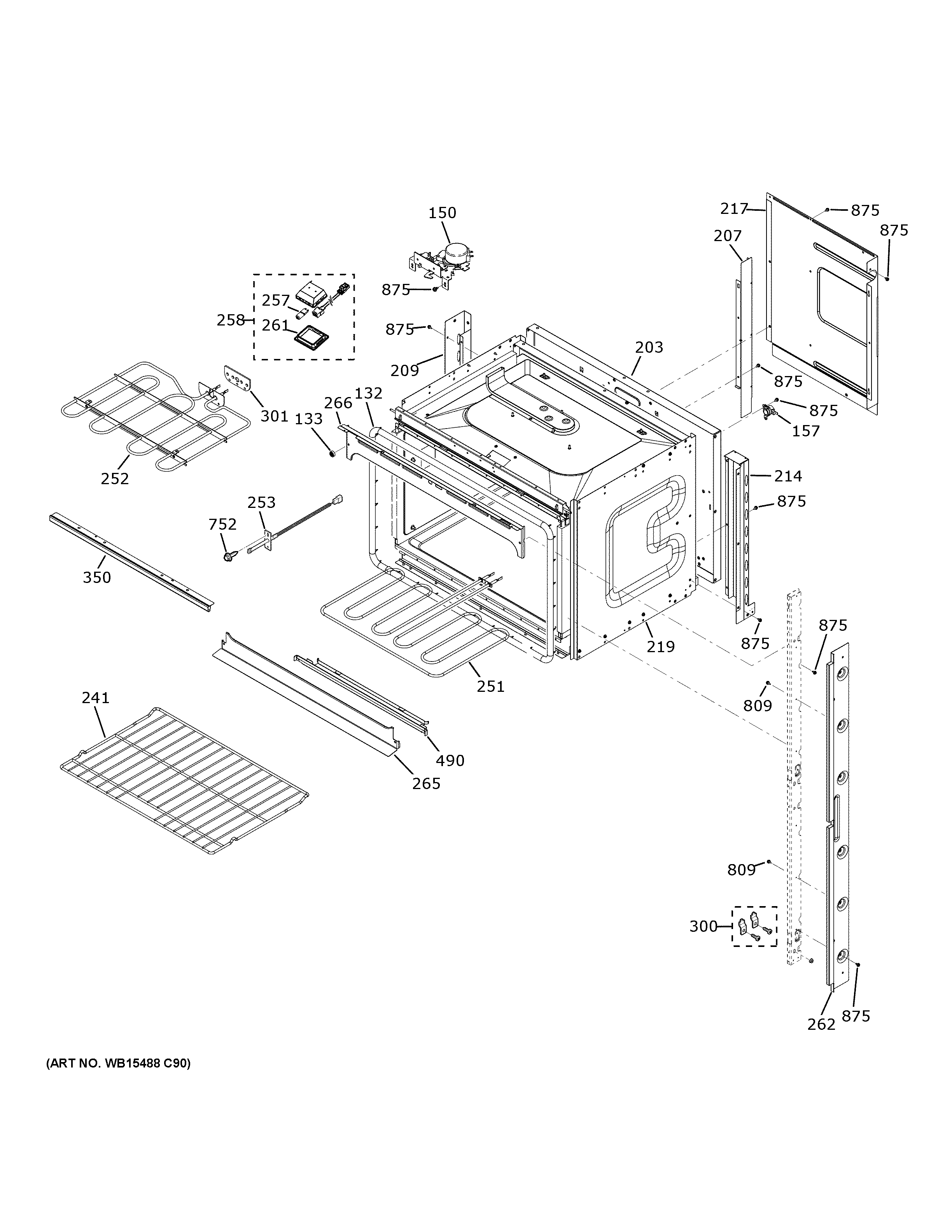

PositionProduct
133WB03T10341 GE Oven Door Bumper
150LATCH ASM
157HIGH LIMIT SWITCH
203WB35X32825 GE Oven Door Gasket
207WB34T10134 GE Center Air Divider
209CHANNEL REAR
214WB55X10971 GE Rear Channel
217WB34T10136 GE Upper Rear Duct Cover
219WB34X21913 GE Side Insulation Retainer
241WB48X31582 GE Oven Rack
251HIDDEN BAKE ELEMENT
252WB44X48686 GE Broil Element
253SENSOR ASM
257WB25T10102 GE Oven Top-Mounted Halogen Bulb G9
258WB25X31221 GE Oven Halogen Lamp Assembly
261WB34X31317 GE Oven Light Lens
262WHITE SIDE TRIM
265WB07X21783 GE Oven Lower Vent Trim
266WB07X32831 GE Upper Trim Vent
300WB49X21652 GE Oven Hinge Bracket Assembly
301WB35X21972 GE Broil Element Gasket
350GEN WB07T10787
490WB55T10197 GE Oven Hidden Bake Cover
752WB01X21742 GE Screw
809WB1K5172 GE Oven Screw
875WH2X930 GE Screw
