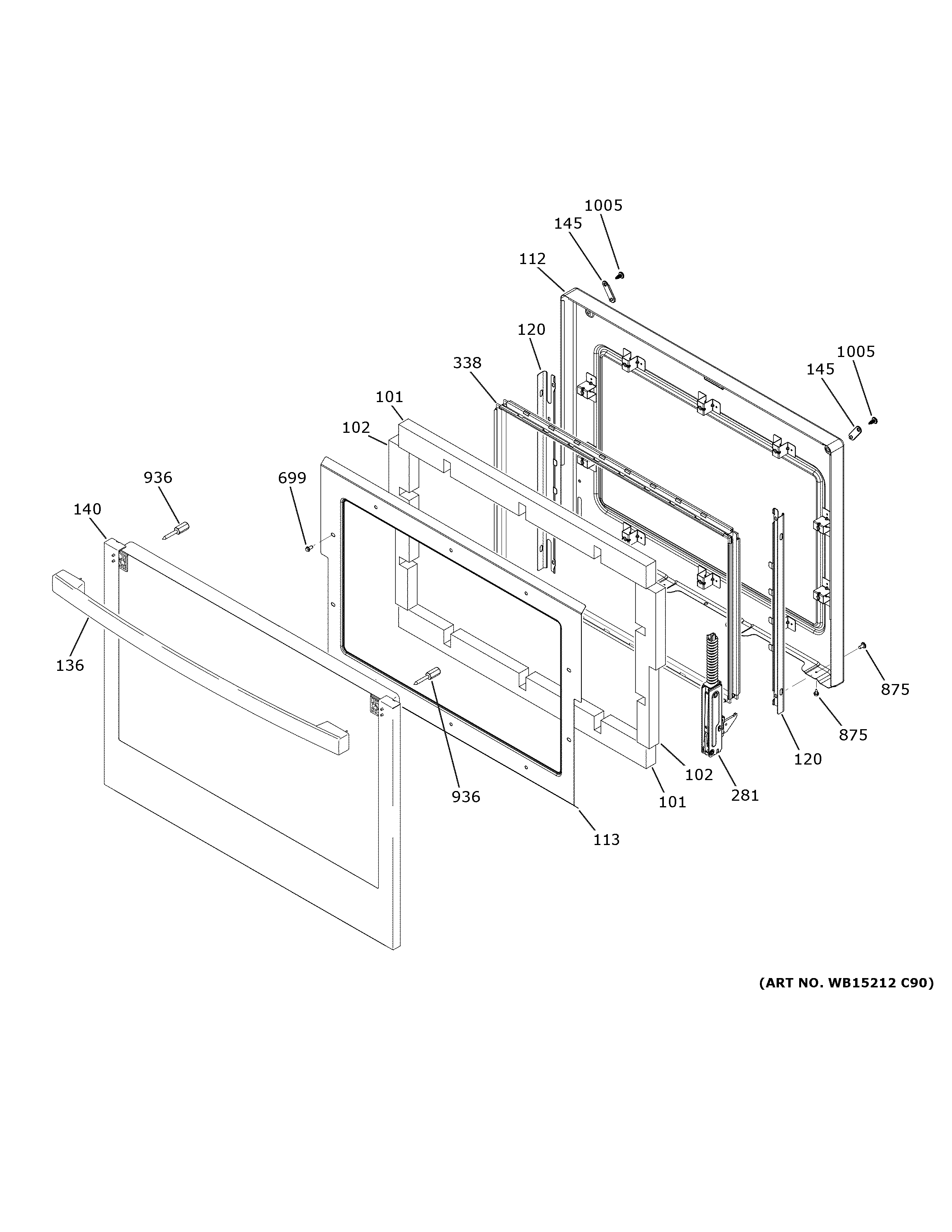

JTD3000EN1ES UPPER DOOR

JTD3000EN1ES UPPER DOOR

Written by

in

JTD3000EN1ES UPPER DOOR

Products

PositionProduct
101INSULATION DR TOP
102WB35X31513 GE Door Side Insulation
112WB63X32569 GE Oven Assembly Door Liner
113WB34X31516 GE Door Insulation Retainer
120LINER SUPPORT
136WB15X32827 GE Oven Stainless Steel Handle
140WB56X33049 GE Slate Outer Door W/O Bad
145WB02X32816 GE Oven Door Liner Plug
281HINGE DOOR RT
281HINGE DOOR LT
338WINDOW PACK ASM
699WB1M1 GE Oven Screw
875WH2X930 GE Screw
936WB02X32826 GE Refrigerator Reinforcement Spacer Assembly
1005WB01T10008 GE Oven Screw 10-32
