JTD5000DN2BB LOWER DOOR

JTD5000DN2BB LOWER DOOR

Written by

in

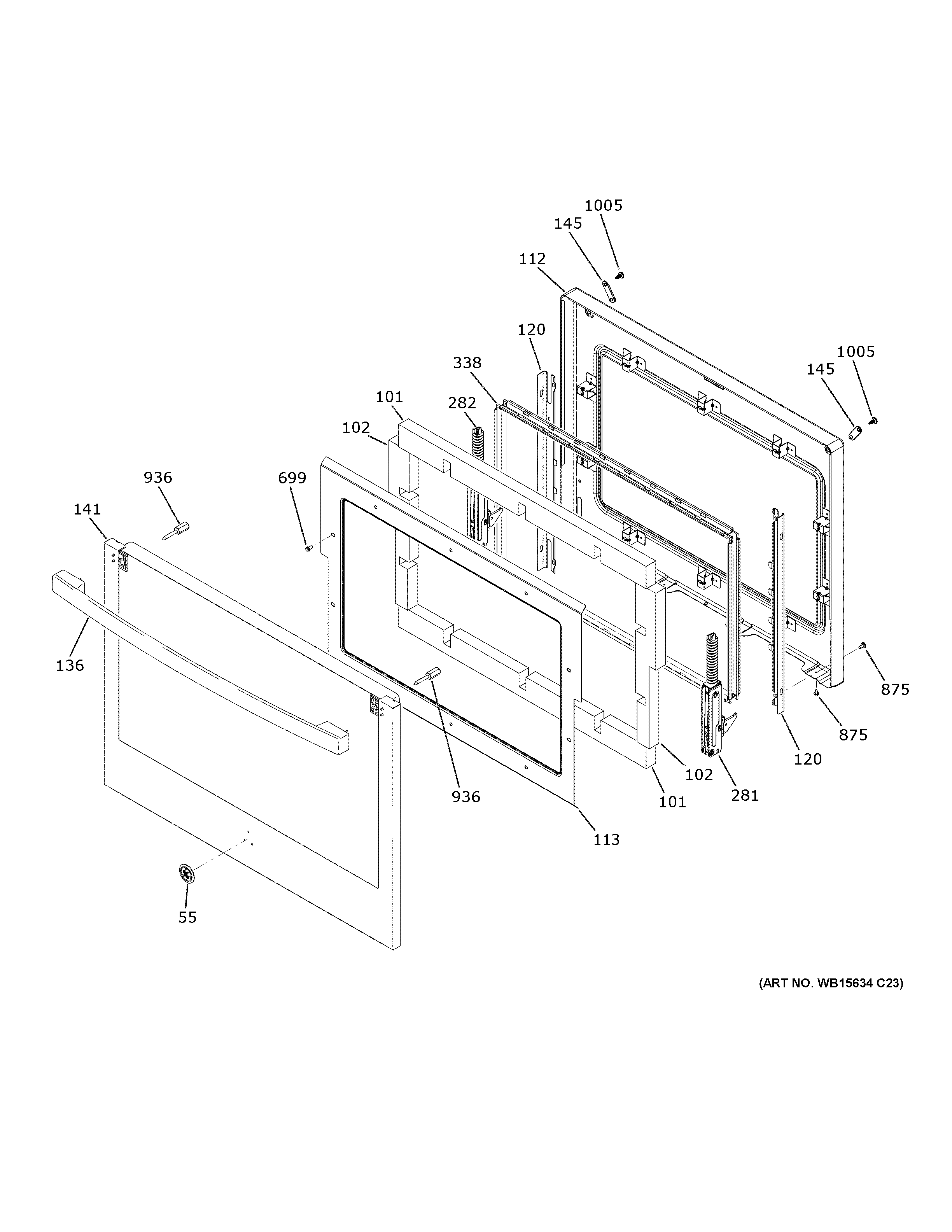

JTD5000DN2BB LOWER DOOR

Products

PositionProduct
55WB02X29637 GE Oven Badge Assembly
101INSULATION DR TOP
102WB35X31513 GE Door Side Insulation
112WB63X32569 GE Oven Assembly Door Liner
113WB34X31516 GE Door Insulation Retainer
120LINER SUPPORT
136WB15X32836 GE Black Handle and End Cap
141WB56X32837 GE Oven Black Outer Door Assembly
145WB02X32816 GE Oven Door Liner Plug
281HINGE DOOR RT
282HINGE DOOR LT
338WINDOW PACK ASM
699WB1M1 GE Oven Screw
875WH2X930 GE Screw
936WB02X32826 GE Refrigerator Reinforcement Spacer Assembly
1005WB01T10008 GE Oven Screw 10-32
