JTD910WB1WW WARMING DRAWER

Products

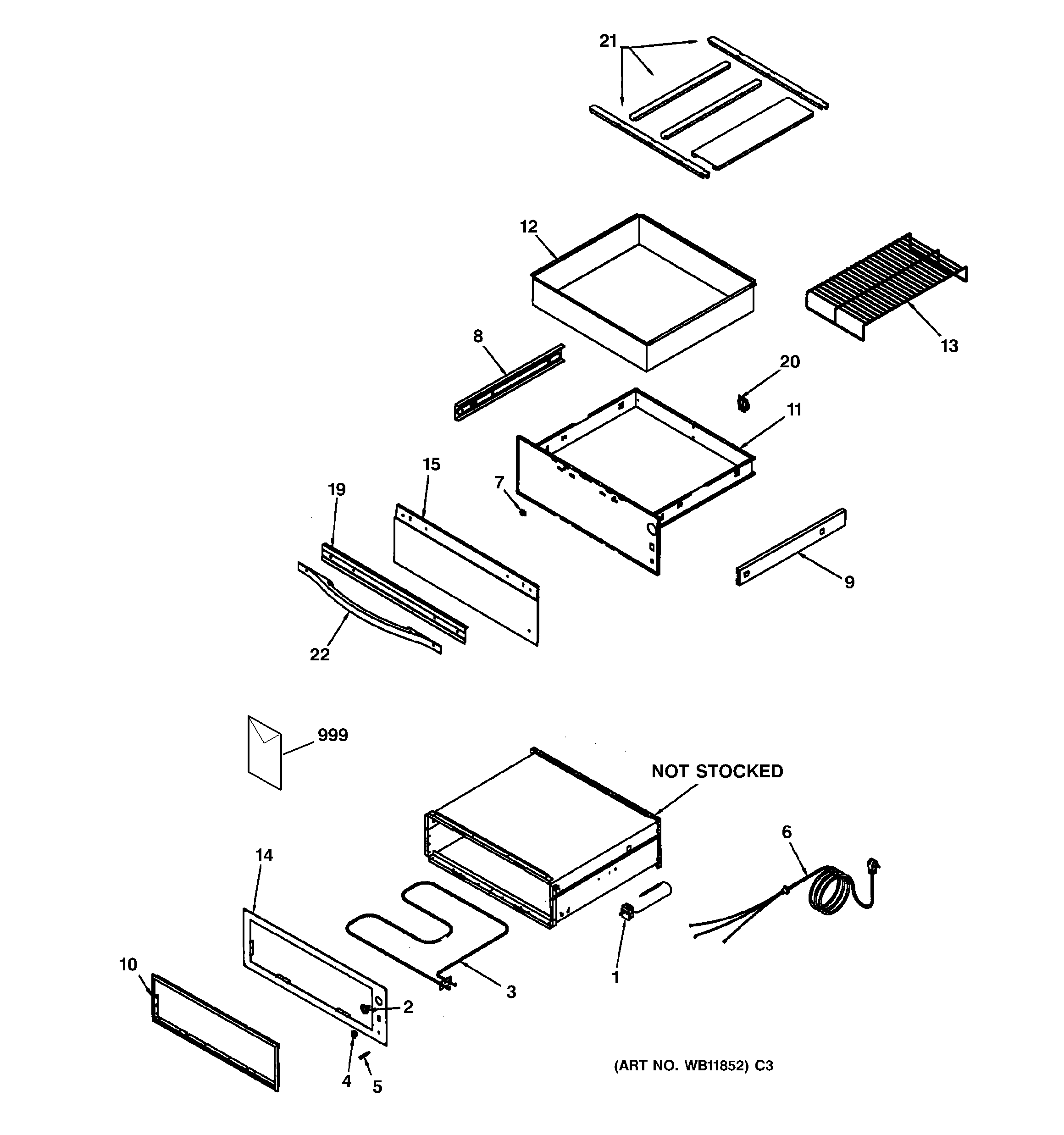

PositionProduct
1THERMOSTAT
2GEN WB03X10060
3WB44X10029 GE Oven Heating Element
4GEN WB24X10036
5WB02X10587 GE Oven Lamp Indicator
6GEN WB02X10588
7KNOB, VENT SLIDE
8GEN WB02X10589
9GEN WB02X10590
10GEN WB02X10593
11WB58X10016 GE Drawer Frame
12GEN WB58X10006
13WB48X10045 GE Wire Rack
14FACE PANEL 30" SERV ASS'
15GEN WB55X10231
19GEN WB07X10225
20WB02X10592 GE Magnet Closed Detent
21WB64X10032 GE Oven 30" Rail Service Kit Assembly
22GEN WB15K5110
999GEN 49-8933
