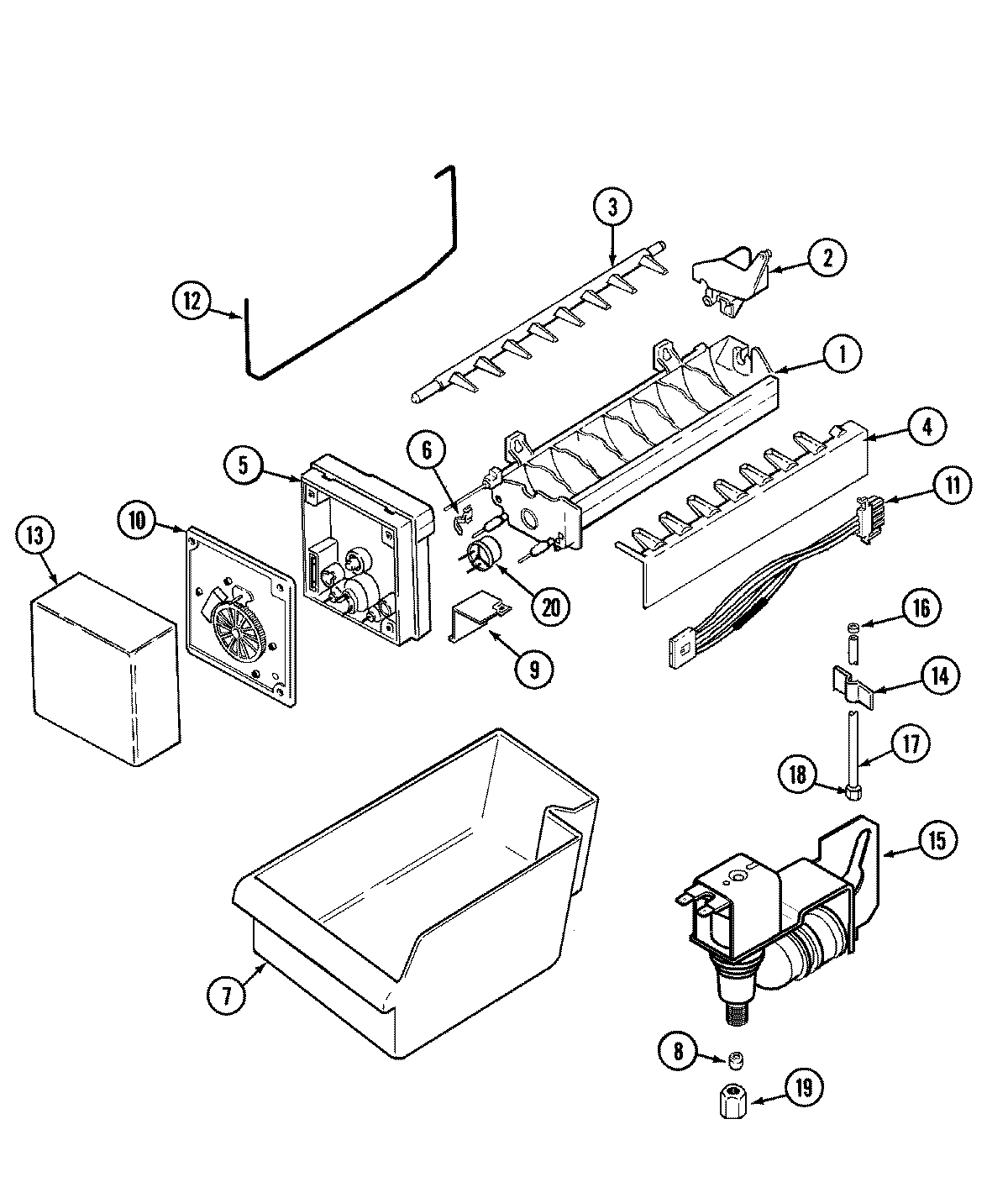

JTF2688AEA 08 – ICE MAKER

Products

Position	Product
1	WP99003172 Whirlpool Silicone L
1	D7824706Q Whirlpool Refrigerator Ice Maker Assembly
2	WP628356 Whirlpool Refrigerator Fill Cup
3	WP627843 Whirlpool Refrigerator Ejector Arm
4	WP2182124 Whirlpool Refrigerator Stripper Arm
5	SCREW
5	WP2195914 Whirlpool Refrigerator Ice Maker Housing
6	WP2315522 Whirlpool Refrigerator Clip
7	MAY 61001886
8	WP487627 Whirlpool Refrigerator Sleeve
9	MAY 95108-1
9	BRACKET, MODULE & HEATER
10	MAY 95109-1
10	MAY 400031-1
11	MAY 61001882
12	MAY 68112-1
13	MAY 61001239
14	MAY 61001889
14	SCREW
14	W10833902 Whirlpool Refrigerator Clamp
15	MAY 61002819
15	WP61005273 Whirlpool Refrigerator Inlet Valve
16	WPM0114003 Whirlpool Microwave Speed Clip Clamp
17	MAY 61003021
18	WP627018 Whirlpool Refrigerator Nut
19	WP245183 Whirlpool Nut
20	MAY 95093-1
20	WP627985 Whirlpool Icemaker Cycling Thermostat
