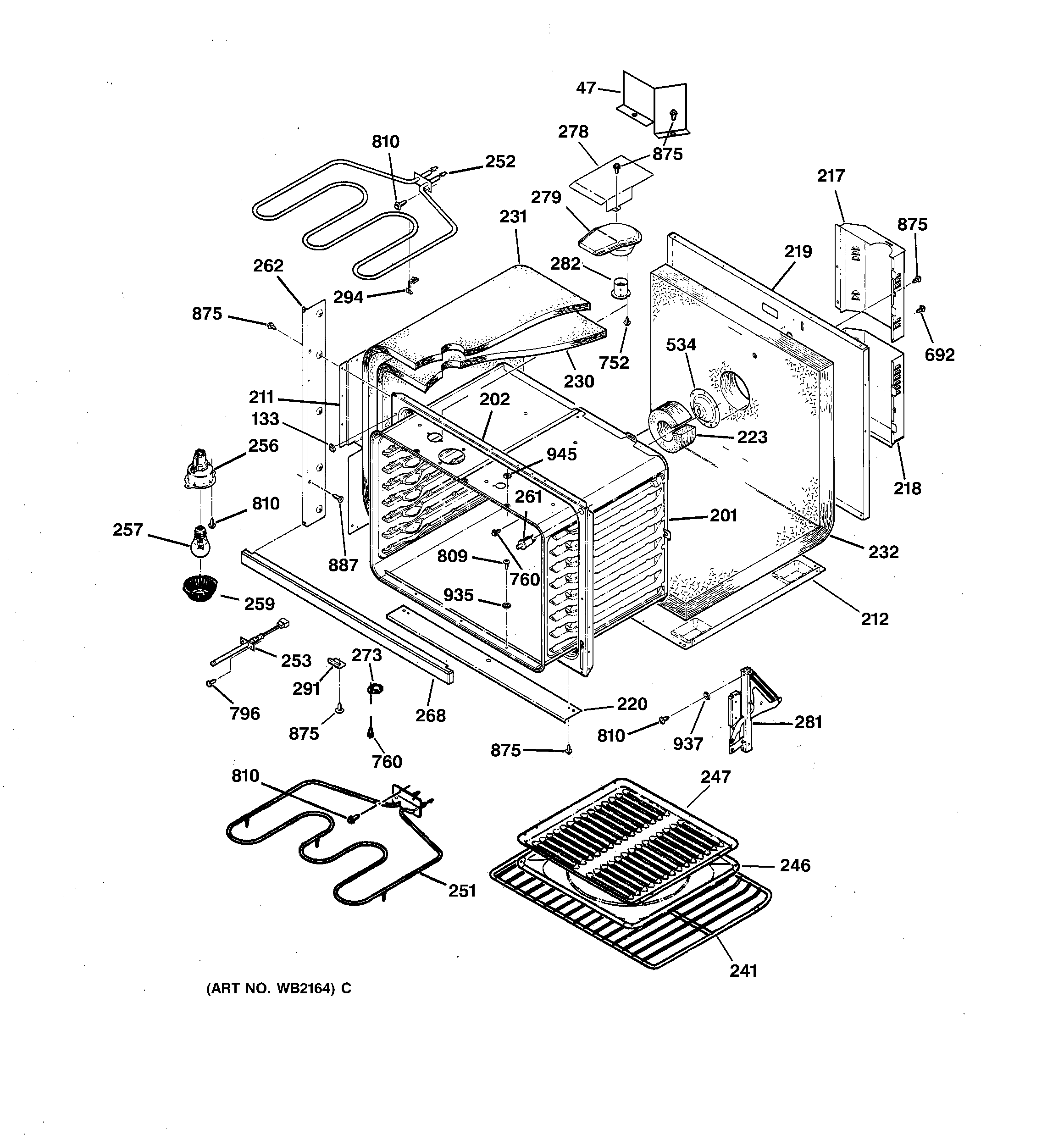

JTP15AA3AA BODY PARTS

JTP15AA3AA BODY PARTS

Written by

in

JTP15AA3AA BODY PARTS

Products

PositionProduct
47GEN WB39T10002
133FELT PAD
133WB01T10022 GE Oven Door Bumper
133WB01T10026 GE Oven Door Pad
201GEN WB63T10057
202FRONT FRAME
211GEN WB02K5306
212GEN WB02K5305
217WIRE COVER UPR RR
218WIRE COVER LWR RR
219GEN WB02K5307
220BTM TRIM SHIELD
230GEN WB35K5118
231GEN WB35K5119
232WB35T10090 GE Oven Back & Bottom Insulation
241WB48T10095 GE Oven Rack
246GEN WB48T10017
247WB48T10089 GE Oven Broiler Pan XL
251WB44T10018 GE Oven Bake Element
252WB44K5017 GE Oven Broil Element
253SENSOR ASM
256WB08T10002 OVEN LAMP ASSEMBLY 40W BULB
257GEN BUY-LOCAL
259WB25T10002 GE Oven Bulb Lens
261WB24T10147 GE Oven SPDT Light Switch
262TRIM VERT SIDE RT (AD)
262TRIM VERT SIDE LT (AD)
268BOTTOM TRIM AD
273GEN WB02K5365
279GEN WB50T10039
281GEN WB14T10005
281WB14T10006 GE Oven Hinge Assembly Left
282GEN WB28K5010
291GEN WB02X9152
294WB2X9719 GE Oven Support Bracket Clip
534GEN WB26T10003
692SCREW
752WB1K5200 GE Oven Screw 340531
760WB1X536 GE Oven Screw
796WB1K5116 GE Oven Screw
809WB1X1137 GE Oven Screw
810WB1X1130 GE Oven Screw 10-32
875WH2X930 GE Screw
887GEN WB01K5178
935WB1K5174 GE Oven Washer
937GEN WB01X1140
945WB1K5046 GE Oven Washer
