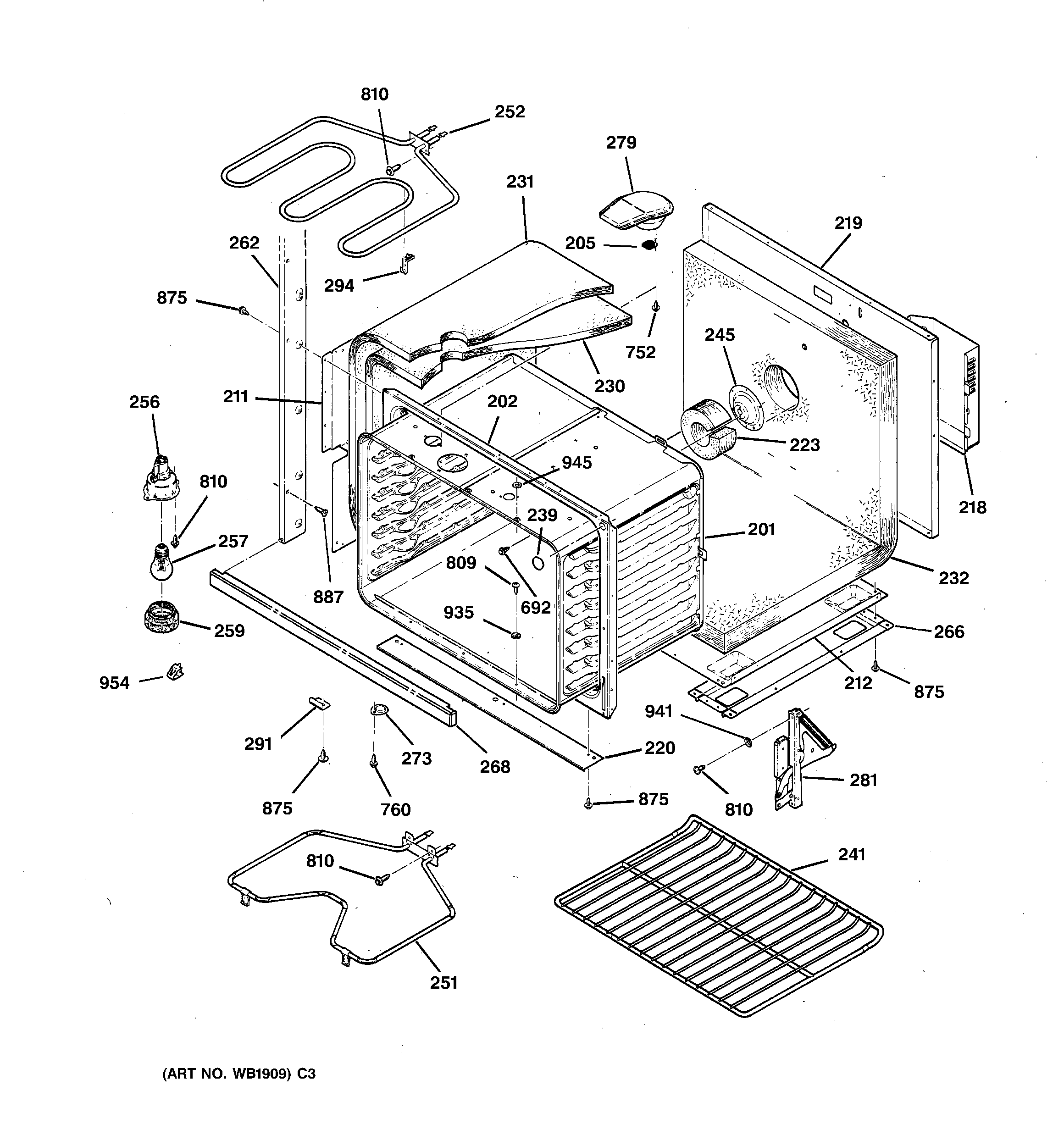

JTP27WV1WW LOWER BODY PARTS

JTP27WV1WW LOWER BODY PARTS

Written by

in

JTP27WV1WW LOWER BODY PARTS

Products

PositionProduct
201GEN WB63K5183
201GEN WB63K5171
202GEN WB63K5172
205WB6K5026 GE Oven Smoke El Screw
205GEN WB06K5040
211GEN WB02K5306
212GEN WB02K5305
218WIRE COVER LWR RR
219GEN WB02K5307
220BTM TRIM SHIELD
230GEN WB35K5094
231GEN WB35K5095
232WB35T10090 GE Oven Back & Bottom Insulation
239PLUG ROUND
241WB48T10095 GE Oven Rack
245GEN WB02K5304
251WB44K5018 GE Oven Bake Element Range
252WB44K5017 GE Oven Broil Element
256GEN WB08K5042
257GEN BUY-LOCAL
259GEN WB25K5025
262GEN WB07K5374
266WB02K10048 GE Base Rail
268GEN WB07K5312
273GEN WB02X3230
279GEN WB38K5051
281HINGE ASM-RT-LOWER
281HINGE ASM-LT-LOWR
281GEN WB14K5014
281WB14T10006 GE Oven Hinge Assembly Left
291GEN WB02X9152
294WB2X9719 GE Oven Support Bracket Clip
692SCREW
752GEN WB00X6542
760WB1X536 GE Oven Screw
809WB1X1137 GE Oven Screw
810WB1X1130 GE Oven Screw 10-32
875WH2X930 GE Screw
887WB1K5172 GE Oven Screw
935WB1K5174 GE Oven Washer
945WB1K5046 GE Oven Washer
945GEN WB01X1399
