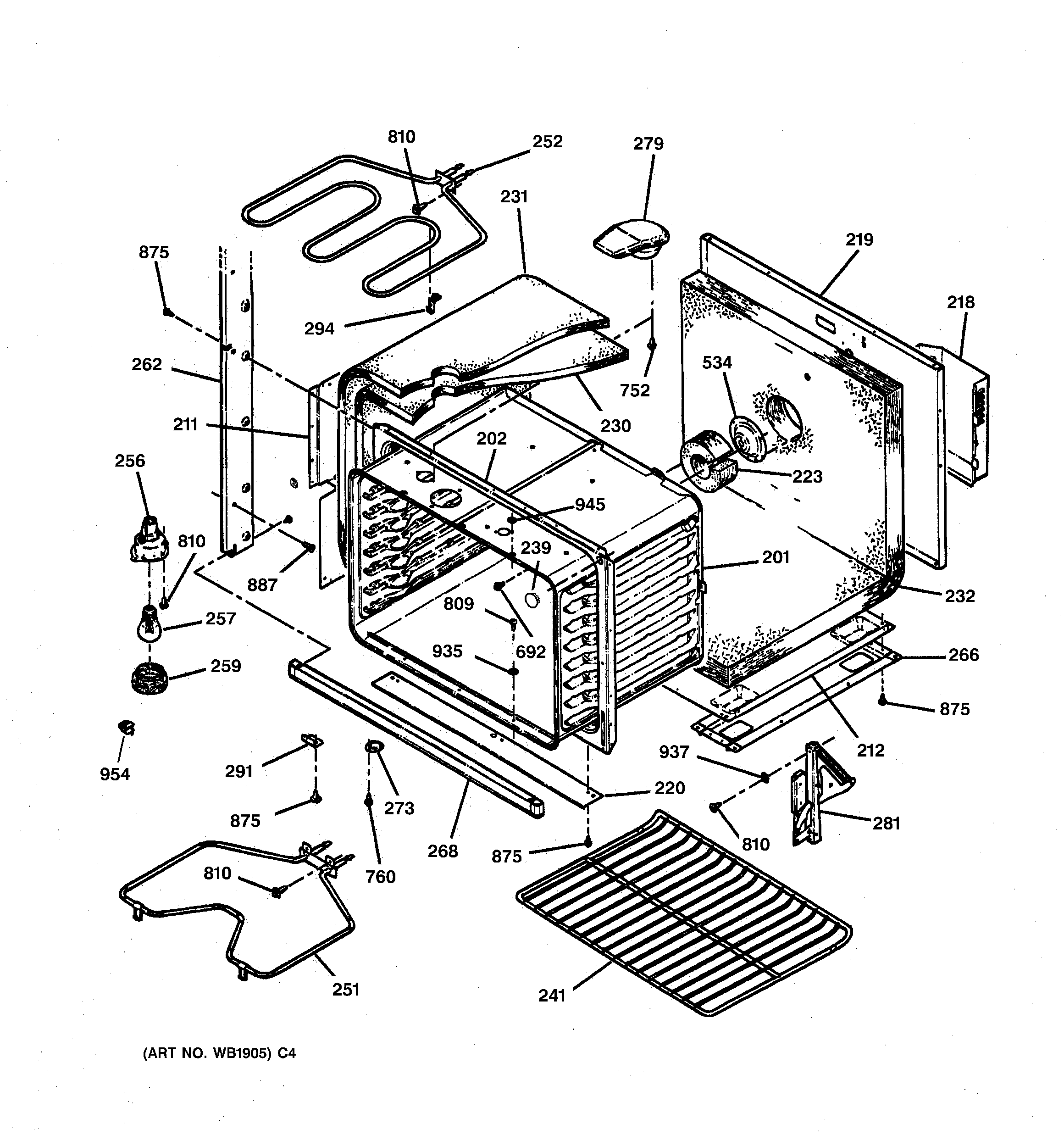

JTP27WW2WW LOWER BODY

JTP27WW2WW LOWER BODY

Written by

in

JTP27WW2WW LOWER BODY

Products

PositionProduct
201GEN WB63T10024
201GEN WB63T10014
202GEN WB63T10015
211GEN WB02K5306
212GEN WB02K5305
218WIRE COVER LWR RR
219GEN WB02K5307
220BTM TRIM SHIELD
230GEN WB35K5118
231GEN WB35K5119
232WB35T10090 GE Oven Back & Bottom Insulation
239PLUG ROUND
241WB48T10095 GE Oven Rack
251WB44K5018 GE Oven Bake Element Range
252WB44K5017 GE Oven Broil Element
256WB08T10002 OVEN LAMP ASSEMBLY 40W BULB
257GEN BUY-LOCAL
259WB25T10002 GE Oven Bulb Lens
262GEN WB07K5374
266WB02K10048 GE Base Rail
268GEN WB07K5468
273GEN WB02K5365
279VENT BOX ASM-BLACK
281WB14T10006 GE Oven Hinge Assembly Left
281GEN WB14K5014
281HINGE ASM-RT-LOWER
281HINGE ASM-LT-LOWR
291GEN WB02X9152
294WB2X9719 GE Oven Support Bracket Clip
534GEN WB26T10003
692SCREW
752WB1K5200 GE Oven Screw 340531
760WB1X536 GE Oven Screw
809WB1X1137 GE Oven Screw
810WB1X1130 GE Oven Screw 10-32
875WH2X930 GE Screw
887WB1K5172 GE Oven Screw
935WB1K5174 GE Oven Washer
937GEN WB01X1140
945WB1K5046 GE Oven Washer
954THERMOSTAT BULB RET CLIP
