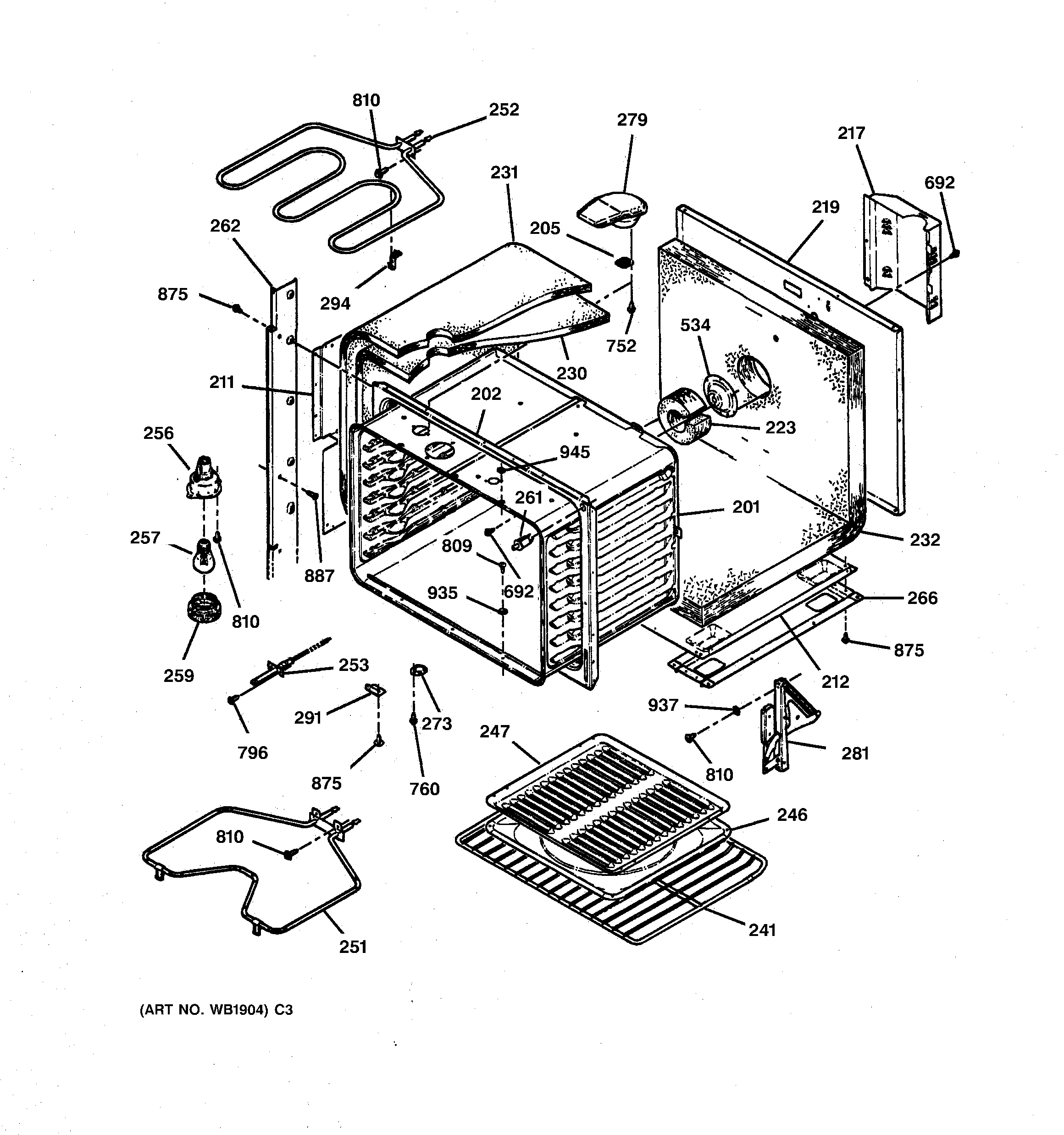

JTP27WW2WW UPPER BODY

JTP27WW2WW UPPER BODY

Written by

in

JTP27WW2WW UPPER BODY

Products

PositionProduct
201GEN WB63T10014
201GEN WB63T10024
202GEN WB63T10015
205GEN WB06K5041
205WB6K5026 GE Oven Smoke El Screw
211GEN WB02K5306
212GEN WB02K5305
217WIRE COVER UPR RR
219GEN WB02K5307
230GEN WB35K5118
231GEN WB35K5119
232WB35T10090 GE Oven Back & Bottom Insulation
241WB48T10095 GE Oven Rack
246WB48X10056 GE Broil Pan Set, Large Porcelain
247GEN WB48T10008
251WB44K5018 GE Oven Bake Element Range
252WB44K5017 GE Oven Broil Element
253SENSOR ASM
256WB08T10002 OVEN LAMP ASSEMBLY 40W BULB
257GEN BUY-LOCAL
259WB25T10002 GE Oven Bulb Lens
261WB24T10147 GE Oven SPDT Light Switch
262GEN WB07K5374
266WB02K10048 GE Base Rail
273GEN WB02K5365
279VENT BOX ASM-BLACK
281HINGE ASM-LT-LOWR
281HINGE ASM-RT-LOWER
281WB14T10006 GE Oven Hinge Assembly Left
281GEN WB14K5014
291GEN WB02X9152
294WB2X9719 GE Oven Support Bracket Clip
534GEN WB26T10003
692SCREW
752WB1K5200 GE Oven Screw 340531
760WB1X536 GE Oven Screw
796WB1K5116 GE Oven Screw
809WB1X1137 GE Oven Screw
810WB1X1130 GE Oven Screw 10-32
875WH2X930 GE Screw
887WB1K5172 GE Oven Screw
935WB1K5174 GE Oven Washer
937GEN WB01X1140
945WB1K5046 GE Oven Washer
