JTP28CF1CC CONTROL PANEL & COOKTOP

JTP28CF1CC CONTROL PANEL & COOKTOP

Written by

in

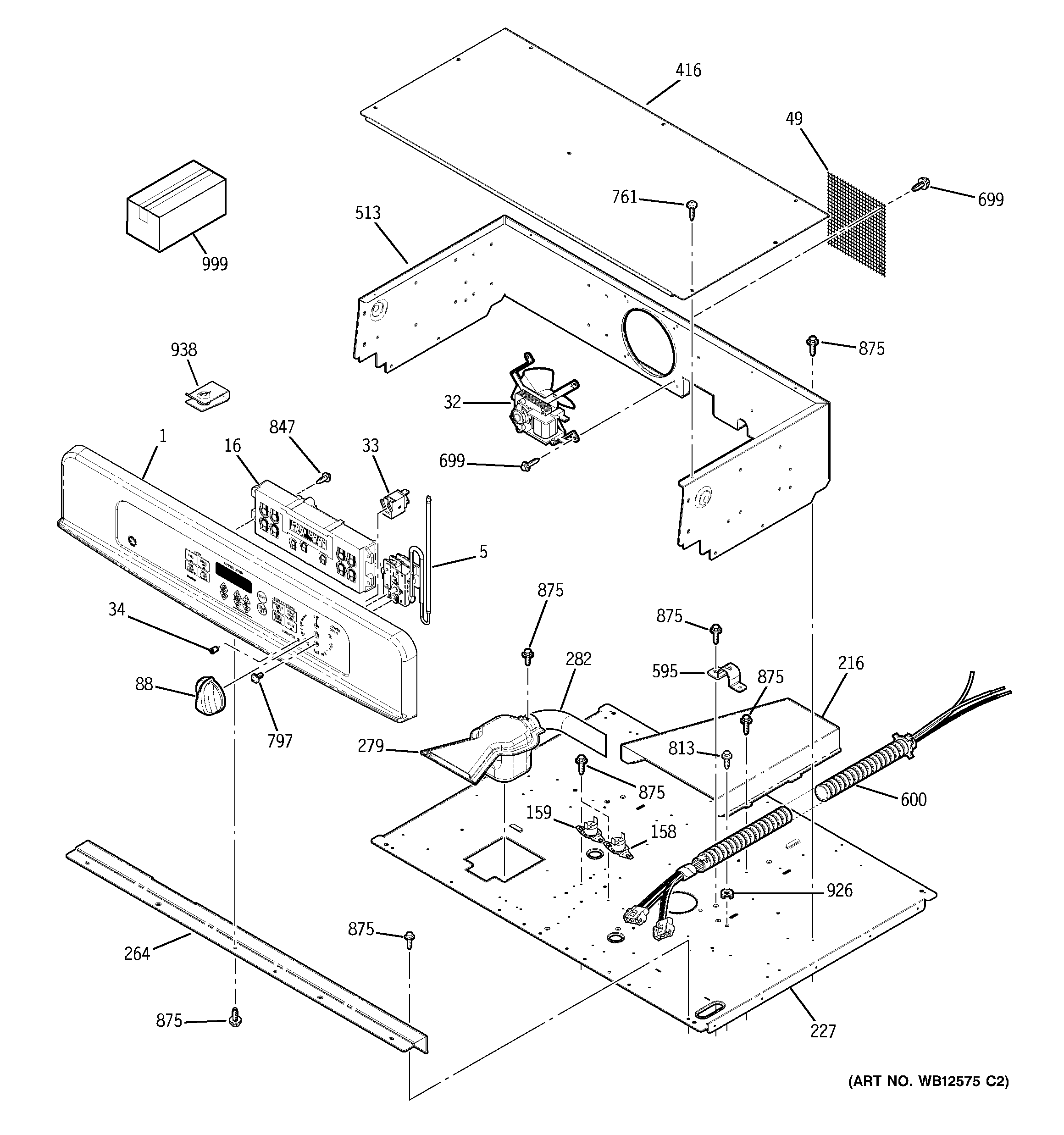

JTP28CF1CC CONTROL PANEL & COOKTOP

Products

PositionProduct
1GEN WB36T10665
5GEN WB20T10003
16WB27T10411 GE Oven Control Assembly
32WB26T10018 GE Oven Fan Motor
32GEN WB26T10019
33WB25T10039 GE Oven Light Indicator
49GEN WB34T10043
88GEN WB03T10199
158WB24T10080 GE Oven Bake Thermostat
159WB24T10060 GE Oven Safety Thermostat
216WB34T10057 GE Oven Top Cover Wire
227WB02T10343 GE Ran Insulation Retainer – Lower
264TRIM VNT INR (BLK)
264GEN WB07T10252
279WB38T10019 GE Oven Vent Box Assembly
282WB28T10081 GE Lower Oven Vent Inlet Duct
282GEN WB28T10074
282WB38X33650 GE Vent Tube
416GEN WB34T10058
513GEN WB26T10014
595WB2K5126 GE Oven Condenser Clamp
600GEN WB18T10273
699WB1M1 GE Oven Screw
761WB1K5029 GE Oven Screw
761WB1K5062 GE Oven Screw
797WB1K5119 GE Oven Screw
813WB1X1261 GE Oven Screw
847WB1X1118 GE Oven Screw 6-32T
875WZ4X245D GE Screw Package
875WH2X930 GE Screw
926GROUND WASHER
938WB1K5209 GE Oven Clip
999GEN 31-10524
999GEN 31-10514
999GEN 31-14027
999GEN 49-80131
