JTP28CF1CC LOWER BODY

JTP28CF1CC LOWER BODY

Written by

in

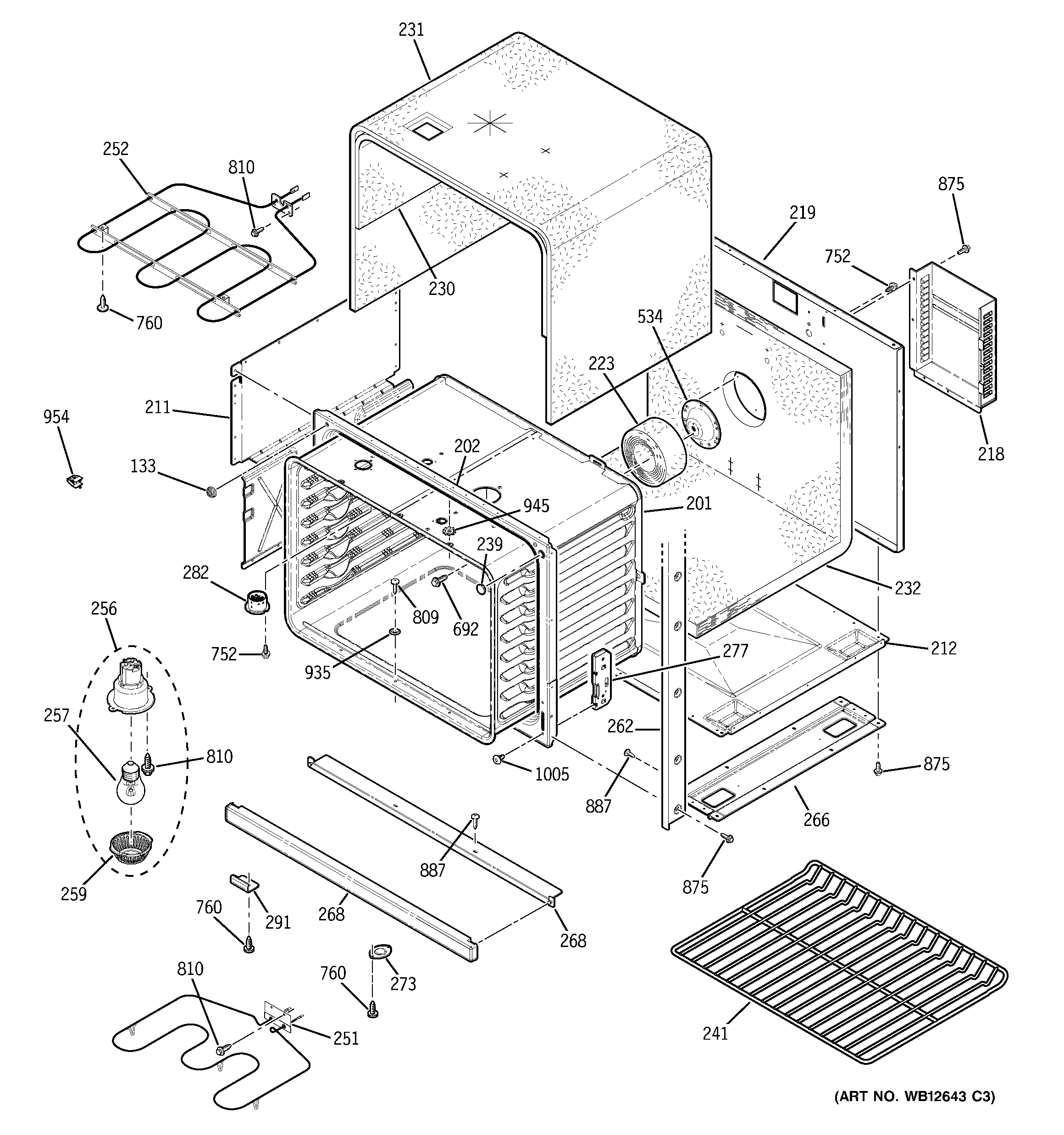

JTP28CF1CC LOWER BODY

Products

PositionProduct
133WB01T10022 GE Oven Door Bumper
133WB03T10156 GE Oven Door Bumper
201WRAPPER OVN CAV UPR
202WB63T10083 GE Front Lower Frame
211GEN WB02K5306
212GEN WB02T10143
218GEN WB34T10056
219WB02X20948 GE Oven Back Insulation Retainer
230GEN WB35T10073
231WB35T10074 GE Oven Lower Insulation
232WB35T10090 GE Oven Back & Bottom Insulation
239PLUG ROUND
241WB48T10095 GE Oven Rack
251WB44T10018 GE Oven Bake Element
252WB44T10043 GE Oven Broil Unit Assembly
256WB08T10002 OVEN LAMP ASSEMBLY 40W BULB
257RANGE ONLY 40W 120V APPL BULB
259WB25T10002 GE Oven Bulb Lens
262GEN WB07T10281
262GEN WB07T10280
266WB02K10048 GE Base Rail
268GEN WB07T10399
268GEN WB07T10389
277GEN WB10T10025
282WB38X33650 GE Vent Tube
282WB28T10081 GE Lower Oven Vent Inlet Duct
282GEN WB28T10074
291GEN WB02T10146
534WB26T10015 GE Oven Cavity Support
692SCREW
752WB1K5200 GE Oven Screw 340531
760WB1X536 GE Oven Screw
809WB1X1137 GE Oven Screw
810WB1X1130 GE Oven Screw 10-32
875WZ4X245D GE Screw Package
875WH2X930 GE Screw
887GEN WB01T10033
935WB1K5174 GE Oven Washer
945WB1K5046 GE Oven Washer
954THERMOSTAT BULB RET CLIP
1005WB01T10008 GE Oven Screw 10-32
