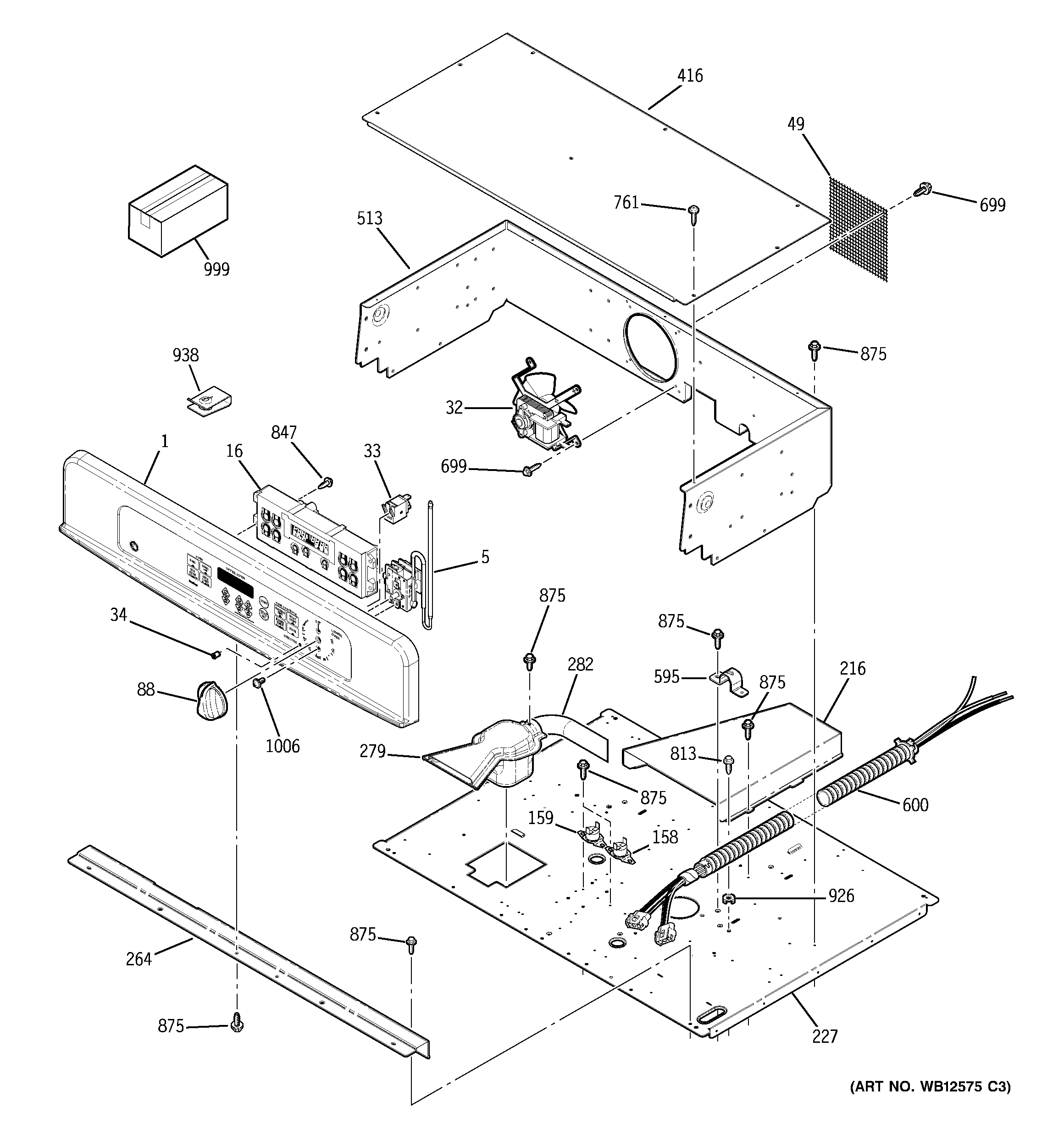

JTP28CF2CC CONTROL PANEL

JTP28CF2CC CONTROL PANEL

Written by

in

JTP28CF2CC CONTROL PANEL

Products

PositionProduct
1GEN WB29T10075
1GEN 31-14189
5GEN WB20T10010
16WB27T10411 GE Oven Control Assembly
32WB26T10018 GE Oven Fan Motor
33WB25T10039 GE Oven Light Indicator
49WB34T10091 GE Oven Fan Screen
88GEN WB03T10199
158WB24T10080 GE Oven Bake Thermostat
159WB24T10060 GE Oven Safety Thermostat
216WB34T10057 GE Oven Top Cover Wire
227WB02T10343 GE Ran Insulation Retainer – Lower
264TRIM VNT INR (BLK)
264GEN WB07T10252
279WB38T10019 GE Oven Vent Box Assembly
282WB28T10081 GE Lower Oven Vent Inlet Duct
282WB38X33650 GE Vent Tube
282GEN WB28T10074
416GEN WB34T10058
513GEN WB26T10014
595WB2K5126 GE Oven Condenser Clamp
600GEN WB18T10273
699WB1M1 GE Oven Screw
761WB1K5062 GE Oven Screw
761WB1K5029 GE Oven Screw
813WB1X1261 GE Oven Screw
847WB1X1118 GE Oven Screw 6-32T
875WH2X930 GE Screw
875WZ4X245D GE Screw Package
926GROUND WASHER
938WB1K5209 GE Oven Clip
999GEN 49-80131
999GEN 31-10524
999GEN 31-10514
999GEN WB18T10257
999GEN 31-10551
1006SCR 8/32 TF FLR 5/16 S
