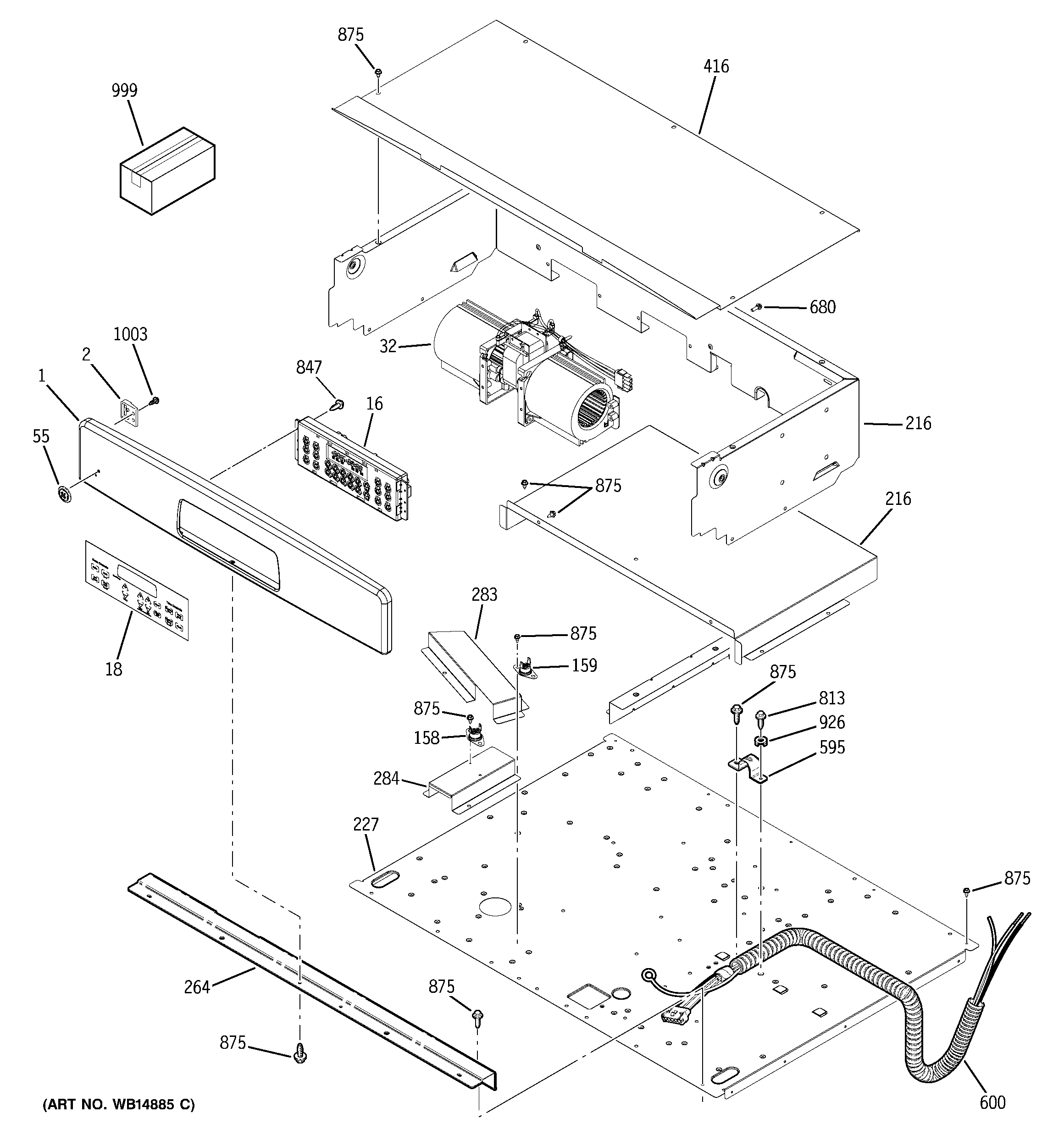

JTP30DP1WW CONTROL PANEL

Products

Position	Product
1	GEN WB36T11245
1	GEN WB36T11248
1	GEN WB36T11247
2	GEN WB02T10376
16	WB27T11161 GE Oven Control Board
18	WB27T11232 GE Oven Faceplate
18	WB27T11231 GE Oven Faceplate
18	WB27T11229 GE Oven Faceplate
32	WB26X10264 GE Oven Fan Kit
55	WB02T10359 GE Oven Badge
158	WB24T10127 GE Oven Bimetal Limit Switch
159	WB24T10060 GE Oven Safety Thermostat
216	GEN WB02T10374
227	WB02T10378 GE Insulation Retainer Top
264	WB07T10580 GE Oven Inner Trim Vent
283	WB02T10402 GE Oven Exhaust Duct
284	WB02T10403 GE Oven Exhaust Duct
416	GEN WB02T10396
595	WB2K5126 GE Oven Condenser Clamp
600	WB18T10444 GE Conduit Wire Assembly 52"
600	OPT CONDUIT WIRE ASM 72"
680	WR1X1850 GE Refrigerator Screw
813	WB1X1261 GE Oven Screw
847	WB02T10324 GE Oven Screw 6-20 GXB IHXW 3/8 NI
875	WH2X930 GE Screw
926	GROUND WASHER
999	GEN 49-80584
999	GEN 31-10730
999	INSTR INSTALL OVN DOOR
999	GEN 31-14827
1003	GEN WB01T10019
