JTP30DP3CC CONTROL PANEL

JTP30DP3CC CONTROL PANEL

Written by

in

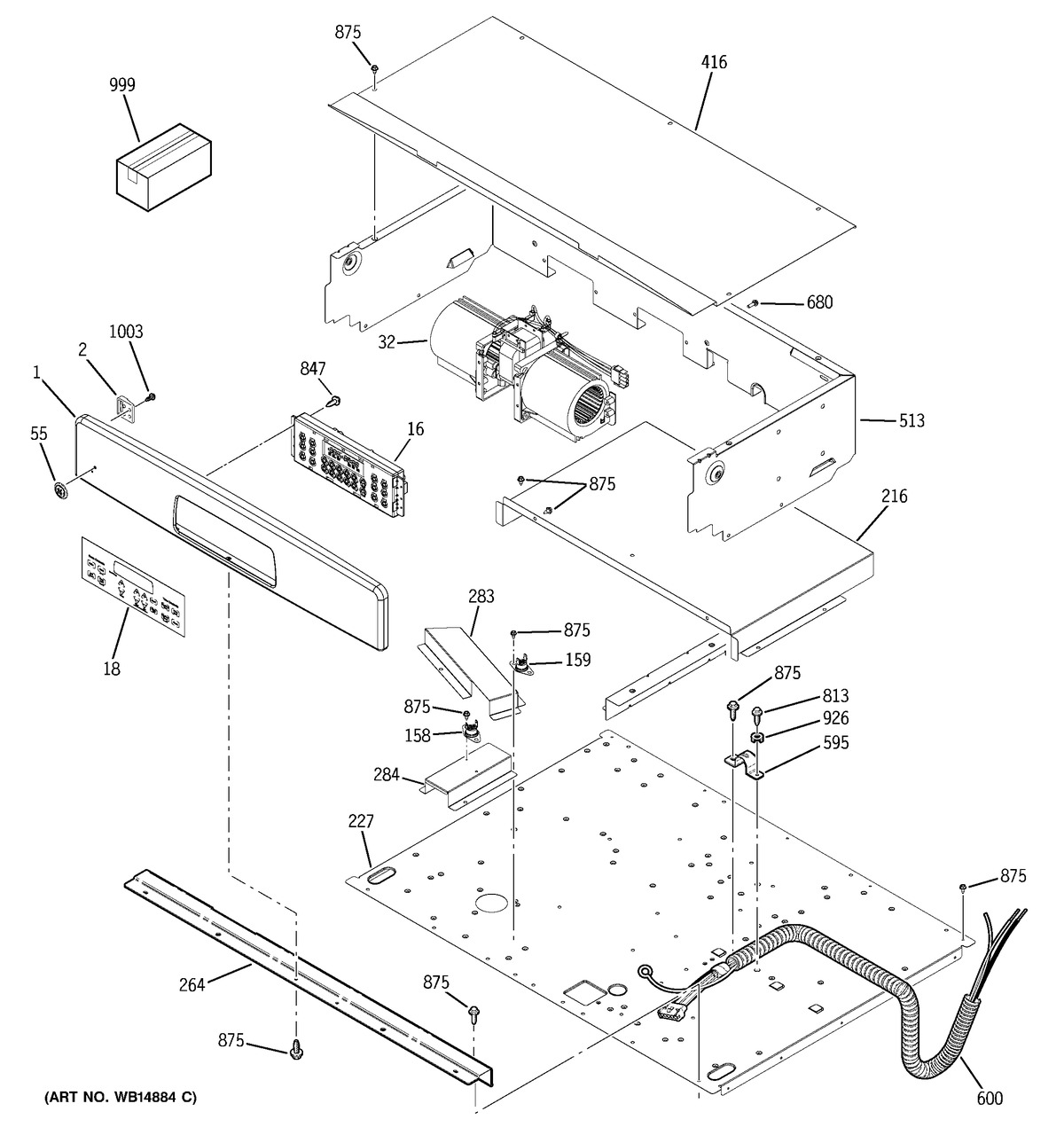

JTP30DP3CC CONTROL PANEL

Products

PositionProduct
1GEN WB36T11248
1GEN WB36T11247
2GEN WB02T10376
16GEN WB27T11407
18WB27T11232 GE Oven Faceplate
18WB27T11231 GE Oven Faceplate
32WB26X10264 GE Oven Fan Kit
55WB02T10359 GE Oven Badge
158WB24T10118 GE Oven Limit Switch Bimetal
159WB24T10060 GE Oven Safety Thermostat
216GEN WB02T10374
227WB02T10378 GE Insulation Retainer Top
264WB07T10580 GE Oven Inner Trim Vent
283WB02T10402 GE Oven Exhaust Duct
284WB02T10403 GE Oven Exhaust Duct
416WB02T10565 GE Fan Housing Cover
513GEN WB26T10047
595WB2K5126 GE Oven Condenser Clamp
600OPT CONDUIT WIRE ASM 72"
600WB18T10444 GE Conduit Wire Assembly 52"
680WR1X1850 GE Refrigerator Screw
813WB1X1261 GE Oven Screw
847GEN WB01T10042
847WR01X10788 GE White Screw
875WH2X930 GE Screw
926GROUND WASHER
999INSTR INSTALL OVN DOOR
999GEN 31-10730
999GEN 31-14960
999GEN 49-80619
