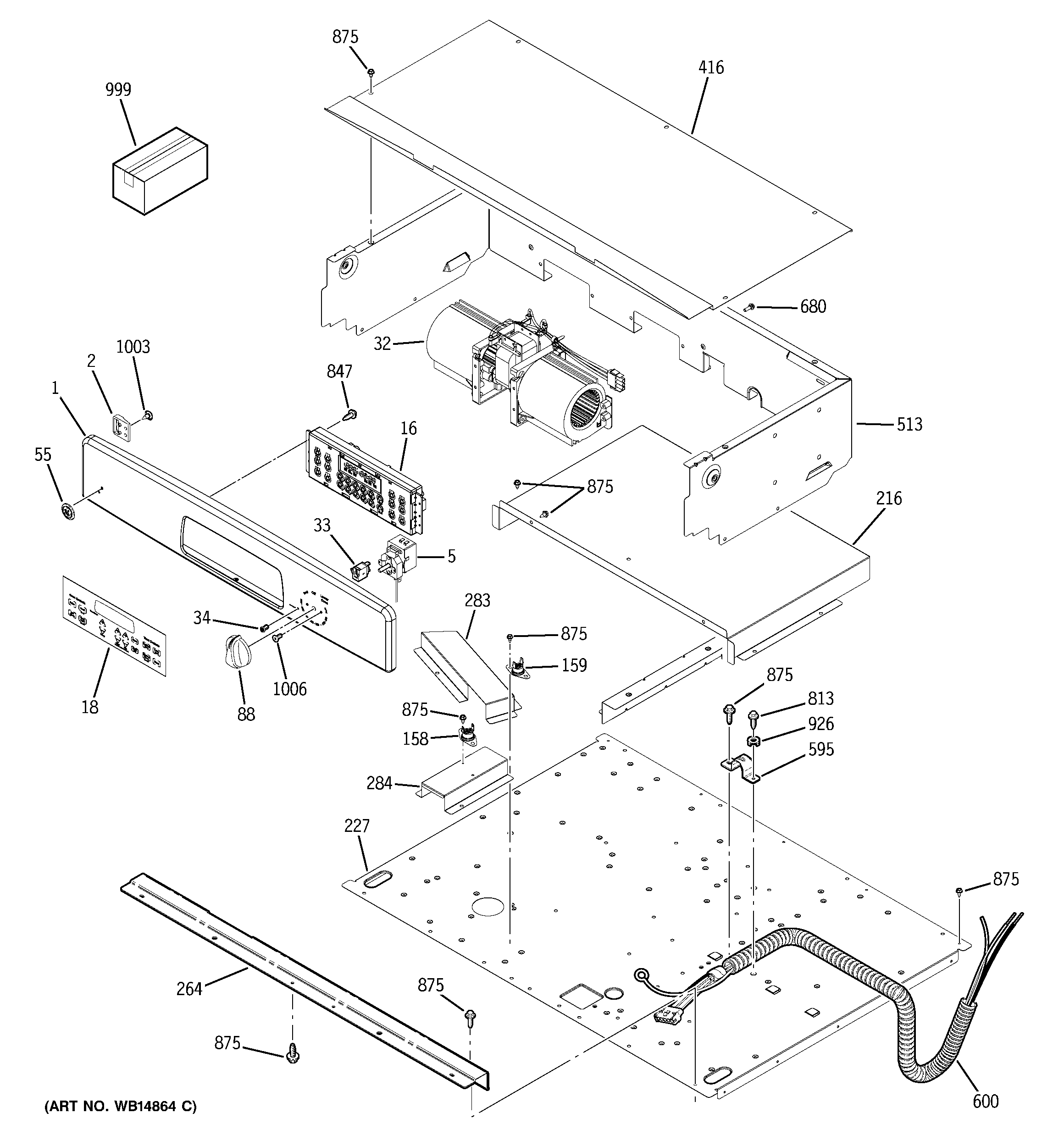

JTP35DP2BB CONTROL PANEL

JTP35DP2BB CONTROL PANEL

Written by

in

JTP35DP2BB CONTROL PANEL

Products

PositionProduct
1GEN WB36T11253
2GEN WB02T10376
5WB20T10026 GE Oven Thermostat
16GEN WB27T11407
18WB27T11229 GE Oven Faceplate
32WB26X10264 GE Oven Fan Kit
33WB25T10040 GE Oven Light Indicator
34WB25T10043 GE Oven Lens
55WB02T10359 GE Oven Badge
88GEN WB03T10302
158WB24T10060 GE Oven Safety Thermostat
159WB24T10175 GE Oven Bake Limit Switch (TCO)
216GEN WB02T10374
227WB02T10378 GE Insulation Retainer Top
264WB07T10580 GE Oven Inner Trim Vent
283WB02T10402 GE Oven Exhaust Duct
284WB02T10403 GE Oven Exhaust Duct
416WB02T10565 GE Fan Housing Cover
513GEN WB26T10047
595WB2K5126 GE Oven Condenser Clamp
600WB18T10445 GE Oven 52" Wire Conduit Assembly
680WR1X1850 GE Refrigerator Screw
813WB1X1261 GE Oven Screw
847WB1M1 GE Oven Screw
875WZ4X245D GE Screw Package
875WH2X930 GE Screw
926GROUND WASHER
999GEN 49-80619
999GEN 31-10730
999INSTR INSTALL OVN DOOR
999GEN 31-14830
1003GEN WB01T10051
1006SCR 8/32 TF FLR 5/16 S
