JTP35SM1SS CONTROL PANEL

JTP35SM1SS CONTROL PANEL

Written by

in

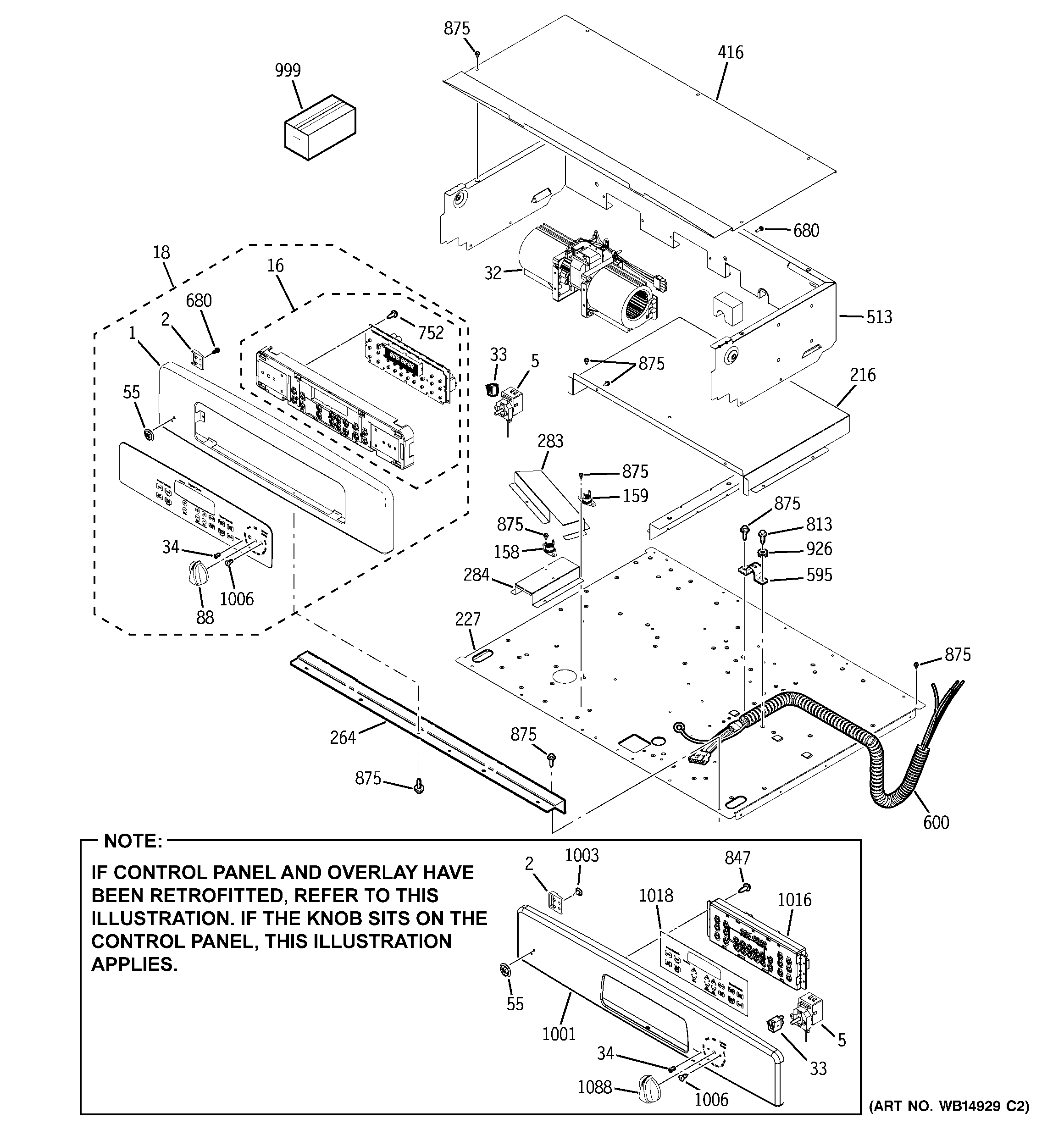

JTP35SM1SS CONTROL PANEL

Products

PositionProduct
1GEN WB36T11025
2GEN WB02T10376
5WB20T10026 GE Oven Thermostat
16GEN WB27T10911
18GEN WB49T10039
32WB26X10264 GE Oven Fan Kit
33WB25T10040 GE Oven Light Indicator
34WB25T10043 GE Oven Lens
55WB02T10359 GE Oven Badge
88GEN WB03T10279
158WB24T10118 GE Oven Limit Switch Bimetal
159WB24T10060 GE Oven Safety Thermostat
216GEN WB02T10374
227WB02T10378 GE Insulation Retainer Top
264WB07T10580 GE Oven Inner Trim Vent
283WB02T10402 GE Oven Exhaust Duct
284WB02T10403 GE Oven Exhaust Duct
416GEN WB02T10396
513GEN WB26T10047
595WB2K5126 GE Oven Condenser Clamp
600WB18T10399 GE Oven Wire Conduit Assembly
680WR1X1850 GE Refrigerator Screw
752WB1K5200 GE Oven Screw 340531
813WB1X1261 GE Oven Screw
847WB02T10324 GE Oven Screw 6-20 GXB IHXW 3/8 NI
875WH2X930 GE Screw
926GROUND WASHER
999GEN 31-14759
999GEN 31-10744
999GEN 31-10647
999INSTR INSTALL OVN DOOR
999GEN 31-10730
999GEN 49-80429
999GEN 49-80584
1001GEN WB36T11255
1003WZ4X245D GE Screw Package
1006SCR 8/32 TF FLR 5/16 S
1016WB27T11161 GE Oven Control Board
1018WB27T11229 GE Oven Faceplate
1088GEN WB03T10304
