JTP35SM1SS UPPER OVEN

JTP35SM1SS UPPER OVEN

Written by

in

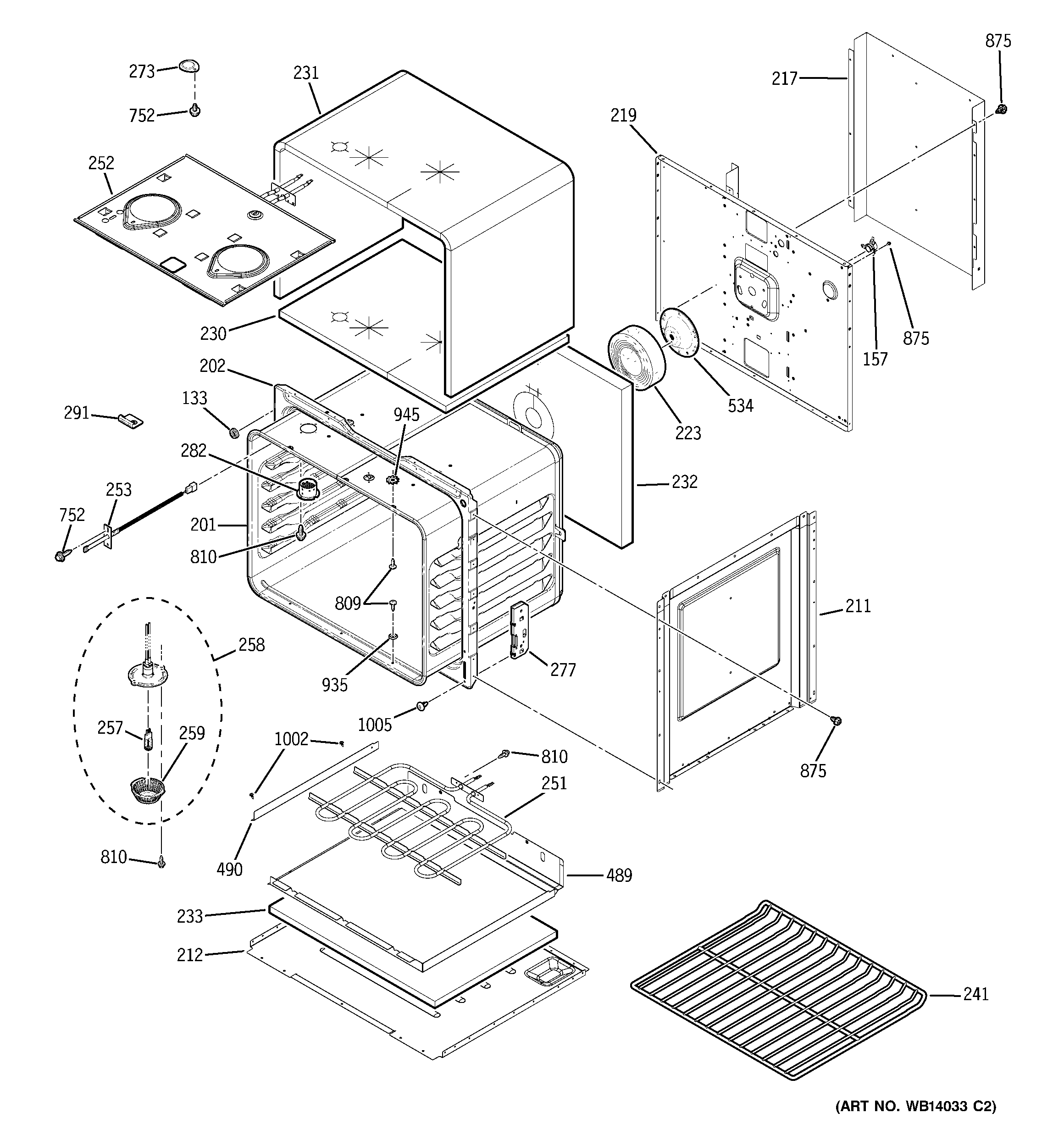

JTP35SM1SS UPPER OVEN

Products

PositionProduct
133WB01T10022 GE Oven Door Bumper
157WB24T10081 GE Oven High Limit Thermostat
201WRAPPER OVN CAV ASM LWR
202GEN WB02T10404
211WB02T10284 GE Oven Side Insulation Retainer
212WB02T10372 GE Bottom Insulation Retainer
217GEN WB02T10373
219WB02X20948 GE Oven Back Insulation Retainer
223WB35T10090 GE Oven Back & Bottom Insulation
230WB35T10183 GE Top Insulation
231WB35T10186 GE Oven Insulation
232WB35T10182 GE Insulation
233WB35T10181 GE Bottom Insulation
241WB48T10050 GE Oven Rack
241GEN WB48T10049
251WB44T10105 GE Oven Element Bake Assembly (2100W)
252WB44T10106 GE Oven Broil Assembly
253WB23T10015 GE Oven Sensor Probe
258WB08T10002 OVEN LAMP ASSEMBLY 40W BULB
259WB25T10002 GE Oven Bulb Lens
273GEN WB02K5365
277GEN WB10T10083
282WB28T10215 GE Oven Vent Tube Assembly
291GEN WB02X9152
489GEN WB49T10019
490WB49T10018 GE Side Reflector Pan
534WB26T10015 GE Oven Cavity Support
752WB1K5200 GE Oven Screw 340531
809WB1X1137 GE Oven Screw
810WB1X1130 GE Oven Screw 10-32
875WH2X930 GE Screw
935WB1K5174 GE Oven Washer
945WB1K5046 GE Oven Washer
1002WB01T10072 GE Screw 8-32 1HW .312 Nickel
1005WB01T10008 GE Oven Screw 10-32
