JTP45BW3BB CONTROL PANEL

JTP45BW3BB CONTROL PANEL

Written by

in

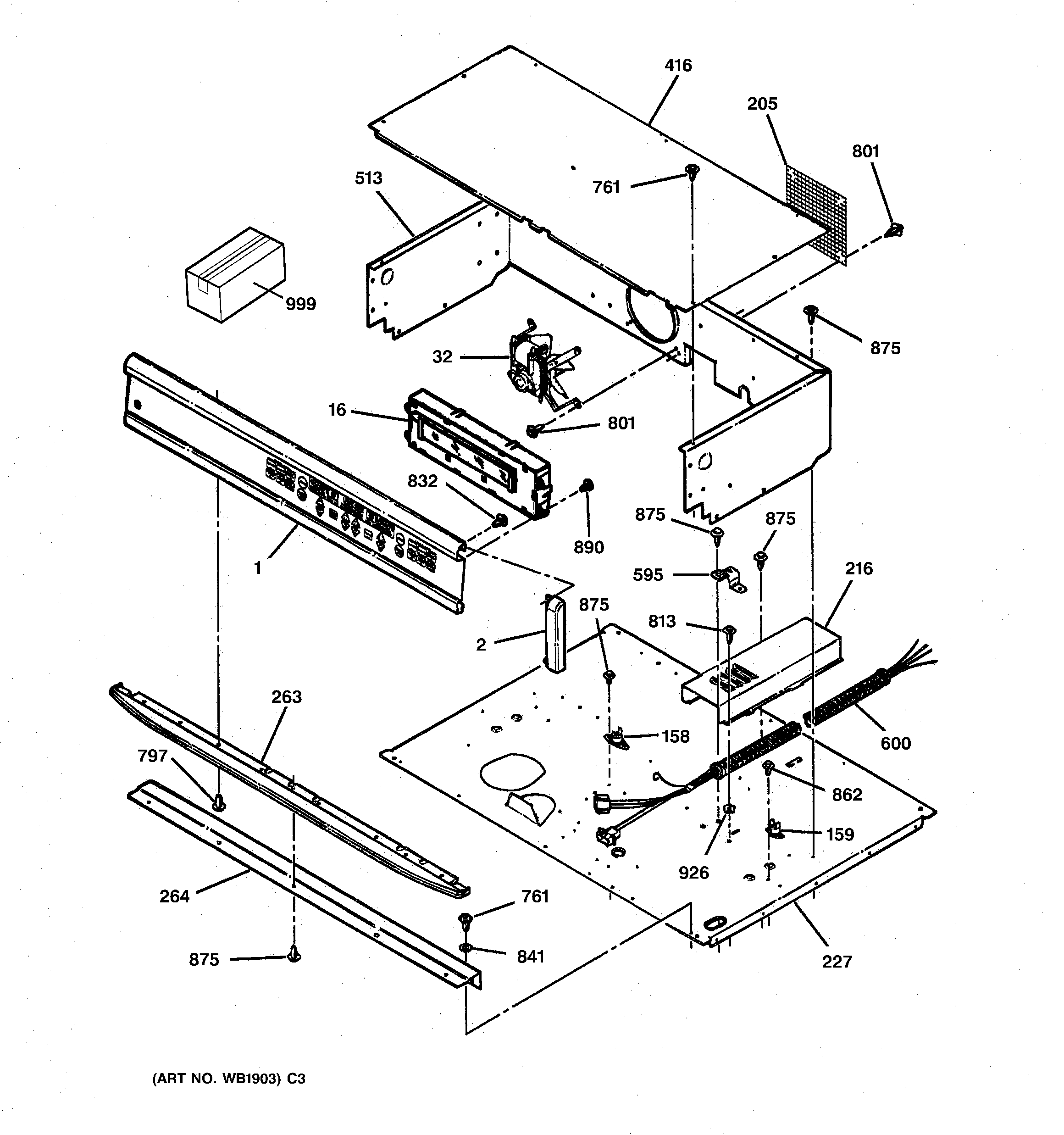

JTP45BW3BB CONTROL PANEL

Products

PositionProduct
1GEN WB36T10027
2GEN WB07K5286
2GEN WB07K5470
2GEN WB07K5469
2END CAP-RT-BLK-CONTROL
2END CAP-LT-BLK-CONTROL
2VENT END CAP-LT-BLK
16CLOCK/OVEN CONTROL
32WB26K5061 GE Oven Upper Fan Assembly
32WB26X114 GE Oven Lower Fan Assembly
158GEN WB24K5127
159GEN WB24K5126
205WB6K5026 GE Oven Smoke El Screw
205GEN WB06K5041
216GEN WB34K5216
218WIRE COVER LWR RR
227GEN WB02K5387
263GEN WB07K5435
264GEN WB07K5308
416GEN WB34K5217
513GEN WB26K5063
595WB2K5126 GE Oven Condenser Clamp
600GEN WB18K5540
602GEN WH02X0941
761WB1K5029 GE Oven Screw
797WB1K5119 GE Oven Screw
801WB1M1 GE Oven Screw
813WB1X1261 GE Oven Screw
832SCREW
862GEN WB01X1178
875WH2X930 GE Screw
888GEN WB01M0005
890WB1X1118 GE Oven Screw 6-32T
913GEN WB01K5187
926GROUND WASHER
999GEN 49-8860
999GEN 31-13636
999GEN 31-10125
