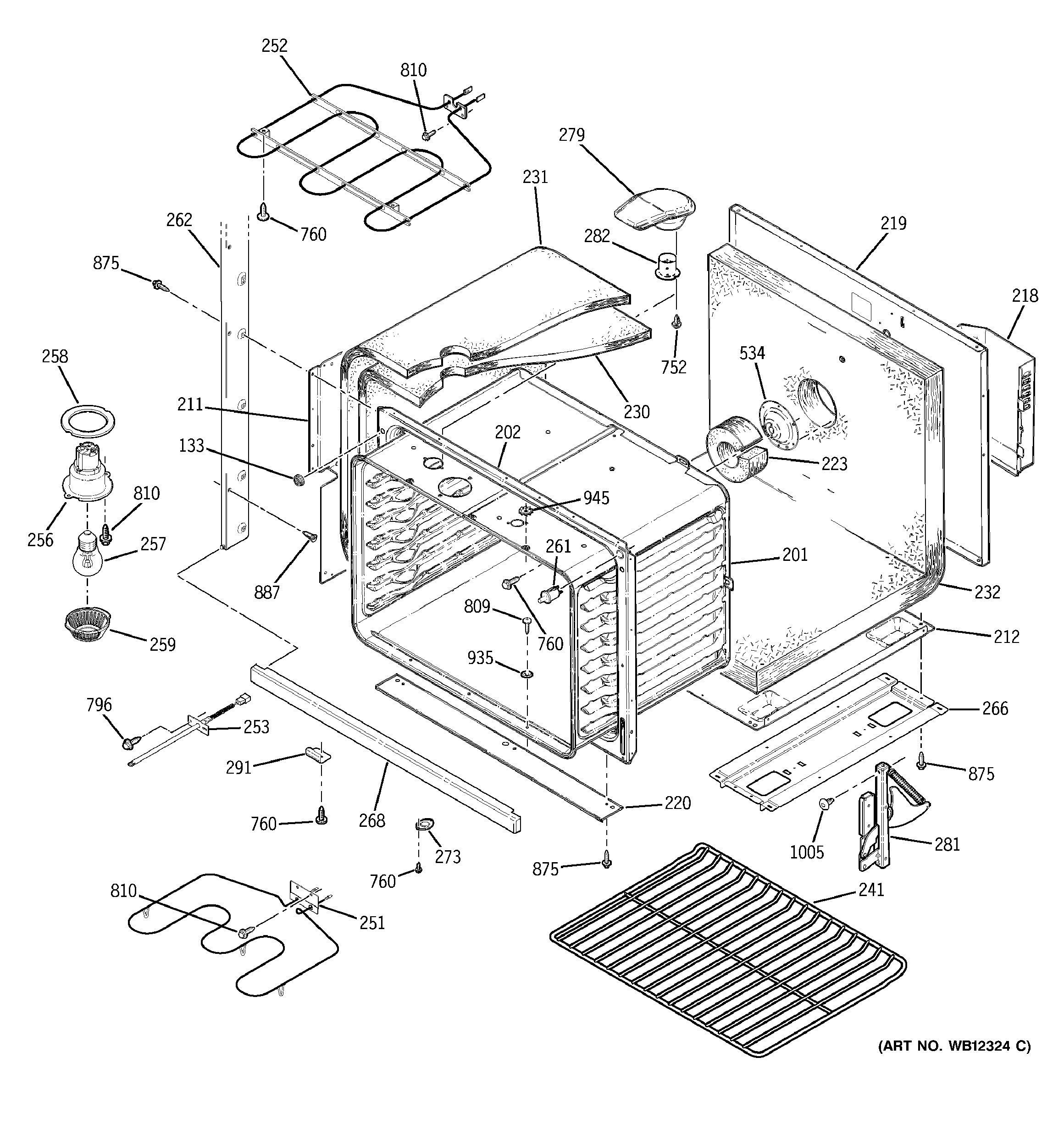

JTP45SD1SS LOWER BODY

JTP45SD1SS LOWER BODY

Written by

in

JTP45SD1SS LOWER BODY

Products

PositionProduct
133WB01T10022 GE Oven Door Bumper
133WB01T10055 GE Oven Foam Tape
201OVEN BODY LOWER
202GEN WB63T10064
211GEN WB02K5306
212INSULATION RETAINER-BTM
218WIRE COVER LWR RR
219GEN WB56X10189
220BTM TRIM SHIELD
230GEN WB35K5118
231GEN WB35K5119
232WB35T10090 GE Oven Back & Bottom Insulation
241WB48T10095 GE Oven Rack
251WB44T10018 GE Oven Bake Element
252WB44T10043 GE Oven Broil Unit Assembly
253WB23T10015 GE Oven Sensor Probe
256WB08T10002 OVEN LAMP ASSEMBLY 40W BULB
257RANGE ONLY 40W 120V APPL BULB
258GEN WB04T10021
259WB25T10002 GE Oven Bulb Lens
261WB24T10147 GE Oven SPDT Light Switch
262GEN WB07K5368
266WB02K10048 GE Base Rail
268BOTTOM TRIM-BLK
279GEN WB38T10014
281GEN WB14T10010
281GEN WB14T10009
282GEN WB28T10070
291GEN WB02T10146
534WB26T10015 GE Oven Cavity Support
752WB1K5200 GE Oven Screw 340531
760WB1X536 GE Oven Screw
796WB1K5116 GE Oven Screw
809WB1X1137 GE Oven Screw
810WB1X1130 GE Oven Screw 10-32
875WH2X930 GE Screw
887WB1K5173 GE Oven Screw ST 8-18 X 3/4" Black
935WB1K5174 GE Oven Washer
945WB1K5046 GE Oven Washer
1005WB01T10008 GE Oven Screw 10-32
