JTP48BF6BB CONTROL PANEL

JTP48BF6BB CONTROL PANEL

Written by

in

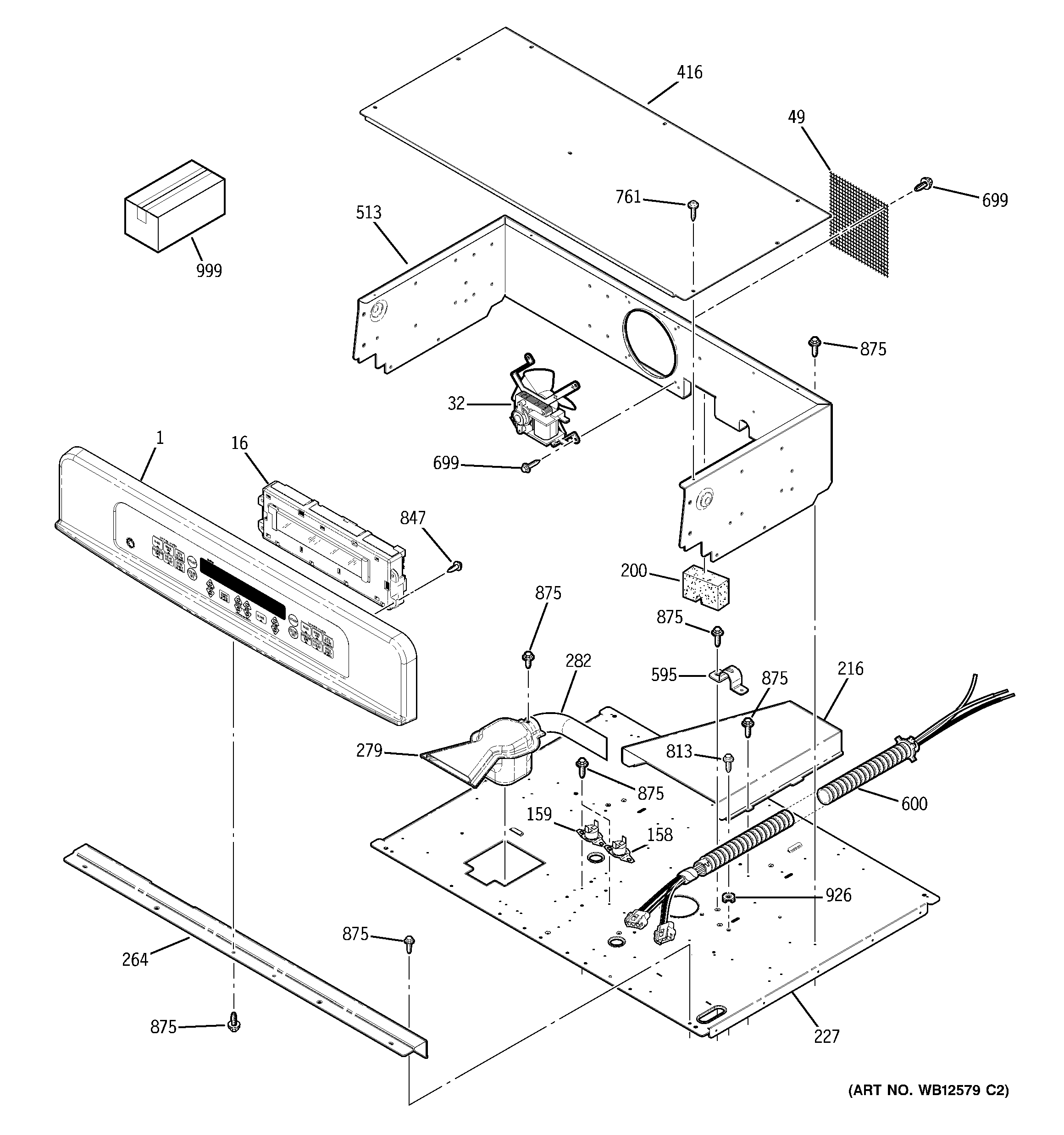

JTP48BF6BB CONTROL PANEL

Products

PositionProduct
1WB36T10579 GE Oven Control Panel
16GEN WB27T10445
32WB26T10018 GE Oven Fan Motor
49WB34T10091 GE Oven Fan Screen
158WB24T10080 GE Oven Bake Thermostat
159WB24T10060 GE Oven Safety Thermostat
200GEN WB02T10167
216WB34T10057 GE Oven Top Cover Wire
227WB02T10343 GE Ran Insulation Retainer – Lower
264GEN WB07T10252
279WB38T10019 GE Oven Vent Box Assembly
282GEN WB28T10083
282WB38X33650 GE Vent Tube
282GEN WB28T10074
416GEN WB34T10058
513GEN WB26T10014
595WB2K5126 GE Oven Condenser Clamp
600GEN WB18T10273
699WB1M1 GE Oven Screw
761WB1K5029 GE Oven Screw
813WB1X1261 GE Oven Screw
847WB1X1118 GE Oven Screw 6-32T
875WH2X930 GE Screw
875WZ4X245D GE Screw Package
926GROUND WASHER
999GEN 31-10524
999GEN 31-10514
999GEN 31-10551
999GEN 49-80229
999GEN 31-14025
