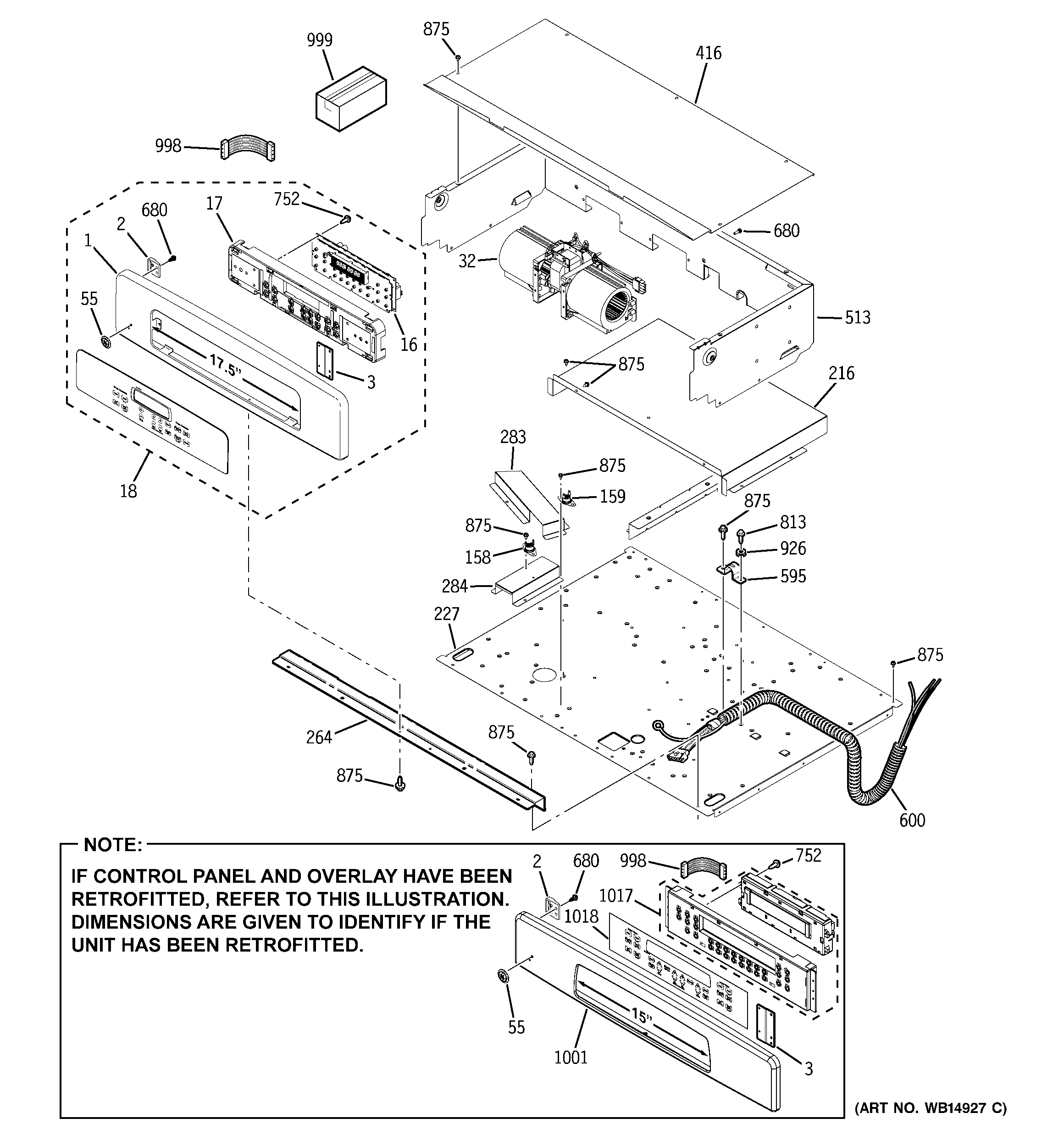

JTP55SM2SS CONTROL PANEL

JTP55SM2SS CONTROL PANEL

Written by

in

JTP55SM2SS CONTROL PANEL

Products

PositionProduct
1GEN WB36T11025
2GEN WB02T10376
3GEN WB02T10382
3GEN WB02T10383
16GEN WB27T10909
17KEYPANEL BOARD HSG ASM
18GEN WB49T10041
32WB26X10264 GE Oven Fan Kit
55WB02T10359 GE Oven Badge
158WB24T10118 GE Oven Limit Switch Bimetal
159WB24T10060 GE Oven Safety Thermostat
216GEN WB02T10374
227WB02T10378 GE Insulation Retainer Top
264WB07T10580 GE Oven Inner Trim Vent
283WB02T10402 GE Oven Exhaust Duct
284WB02T10403 GE Oven Exhaust Duct
416GEN WB02T10396
513GEN WB26T10047
595WB2K5126 GE Oven Condenser Clamp
600WB18T10399 GE Oven Wire Conduit Assembly
680WR1X1850 GE Refrigerator Screw
752WB02T10324 GE Oven Screw 6-20 GXB IHXW 3/8 NI
813WB1X1261 GE Oven Screw
875WH2X930 GE Screw
875WZ4X245D GE Screw Package
926GROUND WASHER
998GEN WB18T10404
999GEN 31-14749
999GEN 31-10647
999INSTR INSTALL OVN DOOR
999GEN 31-10730
999GEN 31-10745
999GEN 49-80429
999GEN 49-80584
1001GEN WB36T11252
1017WB27T11176 GE Oven Button Board Housing Assembly DDH
1018WB27T11233 GE Oven Faceplate
