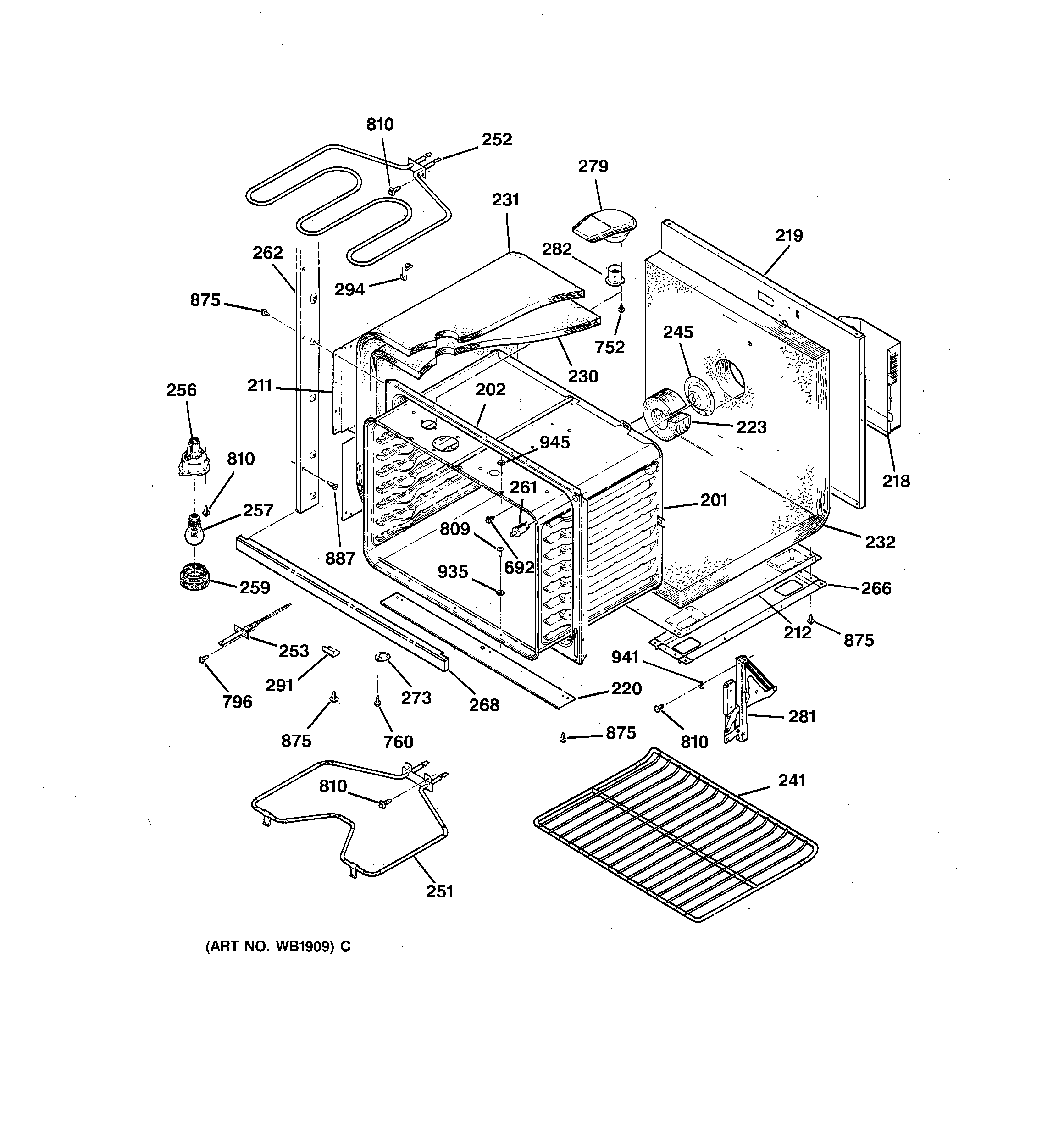

JTP56BW1BB LOWER BODY PARTS

JTP56BW1BB LOWER BODY PARTS

Written by

in

JTP56BW1BB LOWER BODY PARTS

Products

PositionProduct
201GEN WB63K5177
201GEN WB63K5171
202GEN WB63K5172
211GEN WB02K5306
212GEN WB02K5305
218WIRE COVER LWR RR
219GEN WB02K5307
220BTM TRIM SHIELD
230GEN WB35K5118
231GEN WB35K5119
232WB35T10090 GE Oven Back & Bottom Insulation
241GEN WB48K5022
241WB48T10095 GE Oven Rack
245GEN WB02K5304
251WB44K5018 GE Oven Bake Element Range
252WB44K5017 GE Oven Broil Element
253SENSOR ASM
256GEN WB08K5042
257RANGE ONLY 40W 120V APPL BULB
259GEN WB25K5025
261WB24T10147 GE Oven SPDT Light Switch
262GEN WB07K5368
266WB02K10048 GE Base Rail
268GEN WB07K5425
273GEN WB02K5365
273PROBE COVER
279VENT BOX ASM-BLACK
281GEN WB14K5014
281WB14T10006 GE Oven Hinge Assembly Left
282GEN WB28K5010
291GEN WB02X9152
294WB2X9719 GE Oven Support Bracket Clip
692SCREW
752WB1K5200 GE Oven Screw 340531
760WB1X536 GE Oven Screw
796WB1K5116 GE Oven Screw
809WB1X1137 GE Oven Screw
810WB1X1130 GE Oven Screw 10-32
875WH2X930 GE Screw
887WB1K5173 GE Oven Screw ST 8-18 X 3/4" Black
935WB1K5174 GE Oven Washer
941GEN WB01X1399
945WB1K5046 GE Oven Washer
