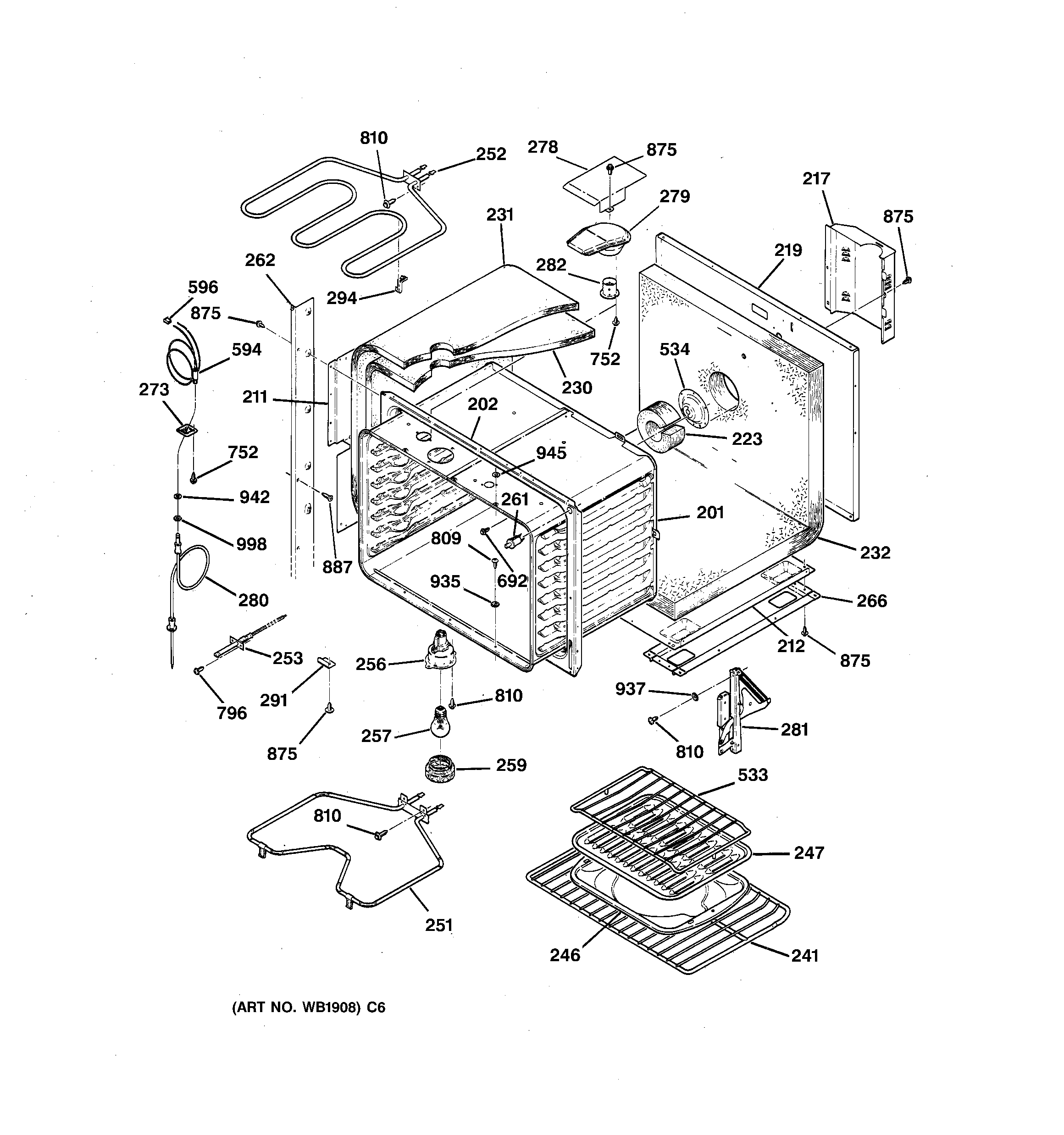

JTP56BW2BB UPPER BODY

JTP56BW2BB UPPER BODY

Written by

in

JTP56BW2BB UPPER BODY

Products

PositionProduct
201GEN WB63T10014
201GEN WB63T10023
202GEN WB63T10015
211GEN WB02K5306
212GEN WB02K5305
217WIRE COVER UPR RR
219GEN WB02K5307
230GEN WB35K5118
231GEN WB35K5119
232WB35T10090 GE Oven Back & Bottom Insulation
241GEN WB48K5022
241WB48T10095 GE Oven Rack
247WB48X10056 GE Broil Pan Set, Large Porcelain
251WB44K5018 GE Oven Bake Element Range
252WB44K5017 GE Oven Broil Element
253SENSOR ASM
256GEN WB08K5042
257GEN BUY-LOCAL
259GEN WB25K5025
261WB24T10147 GE Oven SPDT Light Switch
262GEN WB07K5368
266WB02K10048 GE Base Rail
273GEN WB02K5365
273PROBE COVER
278GEN WB34K5252
279VENT BOX ASM-BLACK
280WB20T10024 GE Oven Thermistor Probe
281WB14T10006 GE Oven Hinge Assembly Left
281GEN WB14K5014
282GEN WB28K5010
291GEN WB02X9152
294WB2X9719 GE Oven Support Bracket Clip
533WB48X5108 GE Oven Roasting Rack
534GEN WB26K5062
534GEN WB02T10002
594GEN WB08K5053
596GEN WB08K5013
692SCREW
752WB1K5200 GE Oven Screw 340531
796WB1K5116 GE Oven Screw
809WB1X1137 GE Oven Screw
810WB1X1130 GE Oven Screw 10-32
875WH2X930 GE Screw
887WB1K5173 GE Oven Screw ST 8-18 X 3/4" Black
935WB1K5174 GE Oven Washer
937GEN WB01X1140
942WB1X5573 GE Oven Washer
945WB1K5046 GE Oven Washer
998WB1X5572 GE Oven Nut
