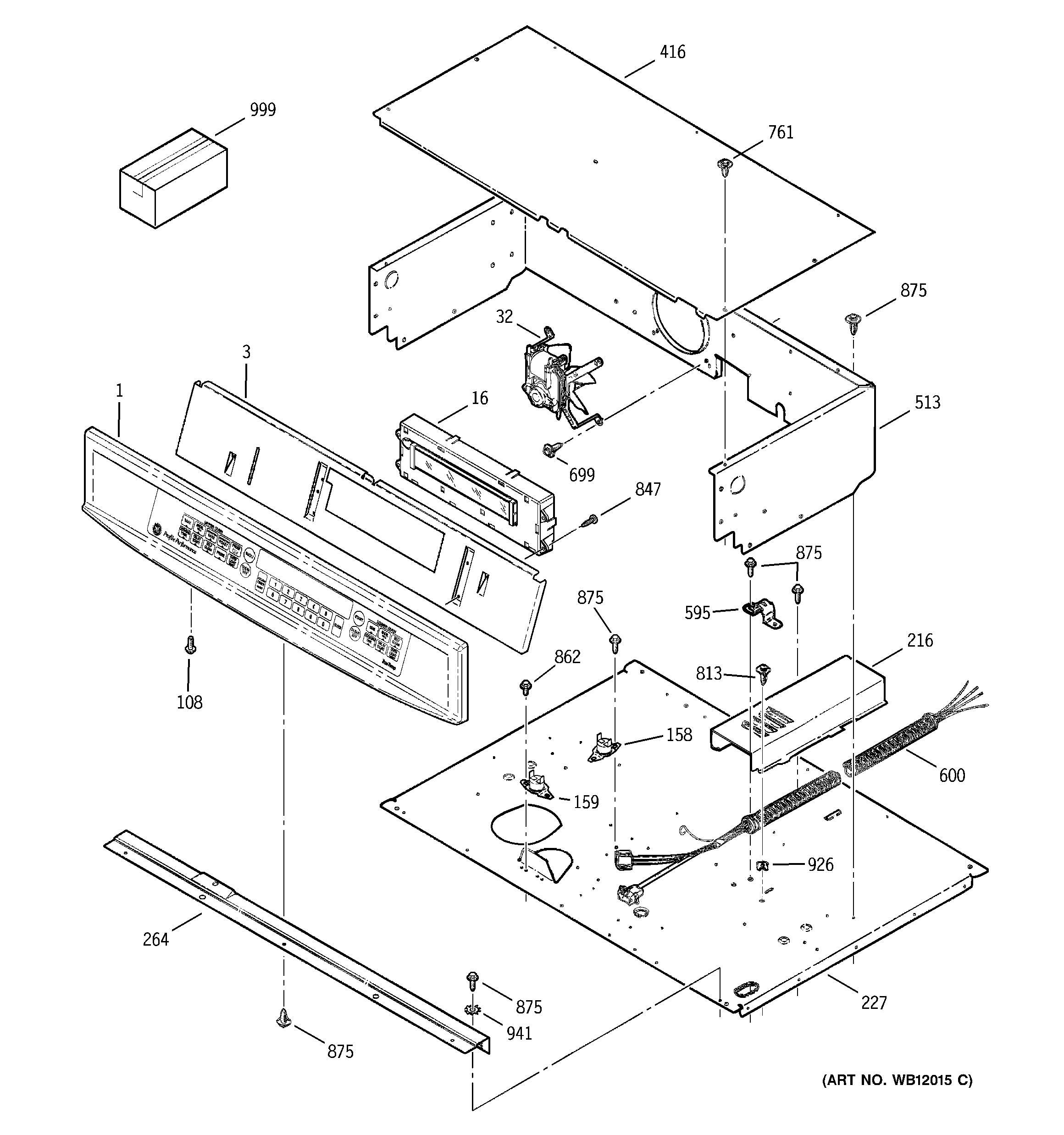

JTP56WA4WW CONTROL PANEL

JTP56WA4WW CONTROL PANEL

Written by

in

JTP56WA4WW CONTROL PANEL

Products

PositionProduct
1GEN WB36T10204
3GEN WB34K5239
16GEN WB27T10297
32WB26K5061 GE Oven Upper Fan Assembly
32WB26X114 GE Oven Lower Fan Assembly
108WB1X5364 GE Oven Mounting Screw
158WB24T10060 GE Oven Safety Thermostat
159LIMIT SWITCH-UPPER(VENT)
216GEN WB34K5216
227GEN WB02T10109
264GEN WB07T10179
416GEN WB34K5217
513GEN WB26K5063
595WB2K5126 GE Oven Condenser Clamp
600GEN WB18K5540
699WB1M1 GE Oven Screw
761WB1K5029 GE Oven Screw
761WB1K5185 GE Oven White Screw
813WB1X1261 GE Oven Screw
847WB1X1118 GE Oven Screw 6-32T
847GEN WB01K5161
862GEN WB01X1178
875WH2X930 GE Screw
926GROUND WASHER
941GEN WB01X1399
999GEN WB18K10009
999GEN 31-13831
999GEN WB18T10203
999WIRE HARNESS F.O.D.
999WB18K5490 GE Oven Door Switch Wire Harness
999GEN 49-80058
999GEN 31-10435
999GEN 49-8443
999WB18T10153 GE Motor Lock Wire Harness
